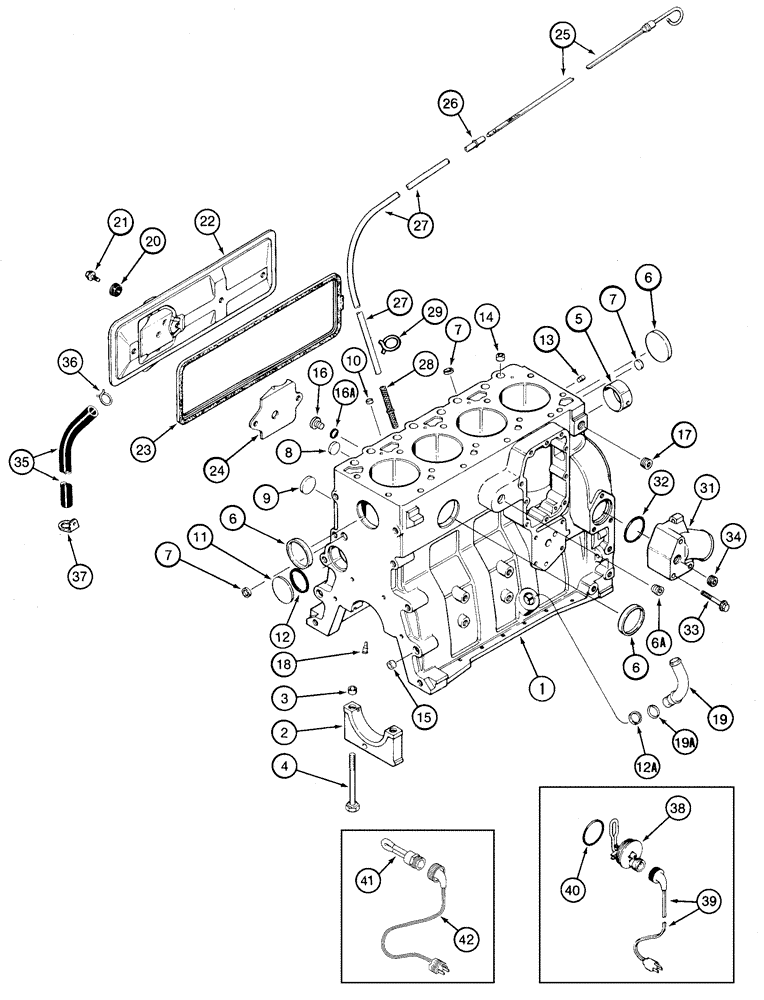

Запчасти Case IH 95XT (02-28[A]) - CYLINDER BLOCK, 4T-390 EMISSIONS CERTIFIED ENGINE (EUROPE) (02) - ENGINE

322608A1

Complete Engine, Europe Only, No Longer Used, Order 322608A2

1шт.

322608A2

Complete Engine, Europe Only

1шт.

J933648

SHORT ENGINE

Includes Stripped Block, Pistons, Connecting Rods And Bearings, Crankshaft And Bearings, Consists Of 1 - 8

1шт.

JR933648

REMAN-SHORT ENGINE

Includes Stripped Block, Pistons, Connecting Rods And Bearings, Crankshaft And Bearings

1шт.

JC933648

CORE-SHORT ENGINE

Return Number

1шт.

1

87444172

BLOCK ASSY.

Stripped, Consists Of 2 - 8, Order J933220

1шт.

2

J936791

BEARING CAP

5шт.

3

J900068

BEARING WASHER

18 mm OD

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

10шт.

5

REF

INSTRUCTION

Bushing, See Page(s) 2-67

1шт.

6

A77782

PLUG

58 mm

3шт.

6a

A77505

PLUG

3/4 PT, If Used

1шт.

7

J900956

PLUG

18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

2шт.

*

J933220

PACKAGE,SERVICE

Includes 9 - 18

1шт.

9

J900958

PLUG

32 mm OD

1шт.

10

J900955

PLUG

10 mm OD

3шт.

11

172599

PLUG,Exp, 2 3/8"

60 mm OD, Includes 12

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

12a

J920706

PLUG

22 mm

5шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J902343

DOWEL

16 mm OD

2шт.

15

J900068

BEARING WASHER

18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

10 mm, Includes 16A

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

17

A77429

PLUG

1/2 PT

1шт.

17a

J678921

PLUG

14 mm, Includes 17B, Not Illustrated

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

Not Illustrated

1шт.

17c

J932296

PLUG

Includes 17D, Not Illustrated

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

Not Illustrated

1шт.

18

J937214

NOZZLE CAP

4шт.

19

J931973

TUBE,0.875" OD

1шт.

19a

238-7012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro

1шт.

20

J900267

SEAL

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

22

J925680

COVER

1шт.

23

J283767

GASKET,7.4mm Thk

1шт.

24

J907586

BAFFLE

1шт.

25

J933333

DIPSTICK

1шт.

26

J905802

FITTING,9.53 mm OD x 39 mm L

1шт.

27

J905801

TUBE

1шт.

28

A77645

TUBE

1шт.

29

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

31

J919687

HYD CONNECTOR

Includes 32

1шт.

32

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

34

A77429

PLUG

1/2 PT

2шт.

35

J918612

TUBE,360.00 mm

1шт.

36

J904230

CLAMP,25.4mm

1шт.

37

J928989

CLIP

1шт.

*

196803A1

KIT

Engine Block Heater, 120V - 750W; Incl 38 - 40; Install Ref 38 In Place Of Ref 6 Plug

1шт.

38

NSS

NOT SOLD SEPARAT

Element, 120V - 750W; Installs In Place Of Ref 6 Plug

1шт.

39

196466A1

ELECTRIC CABLE

120V - 750W, 1829 mm (72 in)

1шт.

40

J910517

O-RING

1шт.

*

124340A1

KIT

Engine Block Heater, 240V - 750W; Incl 38 - 40; Install Ref 38 In Place Of Ref 6 Plug

1шт.

38

NSS

NOT SOLD SEPARAT

Element, 240V - 750W; Install In Place Of Ref 6 Plug

1шт.

39

J905114

ELECTRIC CABLE

240V - 750W, 1829 mm (72 in)

1шт.

40

J910517

O-RING

1шт.

*

309651A1

KIT

Engine Block Heater, 120V - 750W; Incl 41, 42; Install Ref 41 In Place Of Ref 6A Plug

1шт.

41

NSS

NOT SOLD SEPARAT

Element, 120V - 750W; Install In Place Of Ref 6A Plug

1шт.

42

196466A1

ELECTRIC CABLE

120V - 750W, 1829mm (72 in)

1шт.

*

309652A1

KIT

Engine Block Heater, 240V - 750W; Incl 41, 42; Install Ref 41 In Place Of Ref 6A Plug

1шт.

41

NSS

NOT SOLD SEPARAT

Element, 240V - 750W; Install In Place Of Ref 6A Plug

1шт.

42

J905114

ELECTRIC CABLE

240V - 750W, 1829mm (72 in)

1шт.

*

4T-390 Emissions Certified Engine

1шт.

*

Repair Kit

1шт.

*

A77887

PACKAGE,SERVICE

Engine Block Repair Kit, Not Illustrated, Consists Of 45 - 52

1шт.

45

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

See Page(s) 2-135

4шт.

46

J934047

PIN,40mm OD x 82.68mm L

Replaces J919053, See Page(s) 2-135

4шт.

47

A77465

BEARING SET

See Page(s) 2-137

4шт.

48

A77405

CRANKSHAFT BEARING

See Page(s) 2-121

4шт.

49

A77896

BEARING SET

Replaces A77406, See Page(s) 2-121

1шт.

50

A77976

GASKET KIT

Replaces A77870, See Page(s) 2-143

1шт.

51

J283333

CYLINDER HEAD GASKET,2.32mm Thk

See Page(s) 2-55

1шт.

52

A77673

GASKET KIT

See Page(s) 2-51

1шт.
