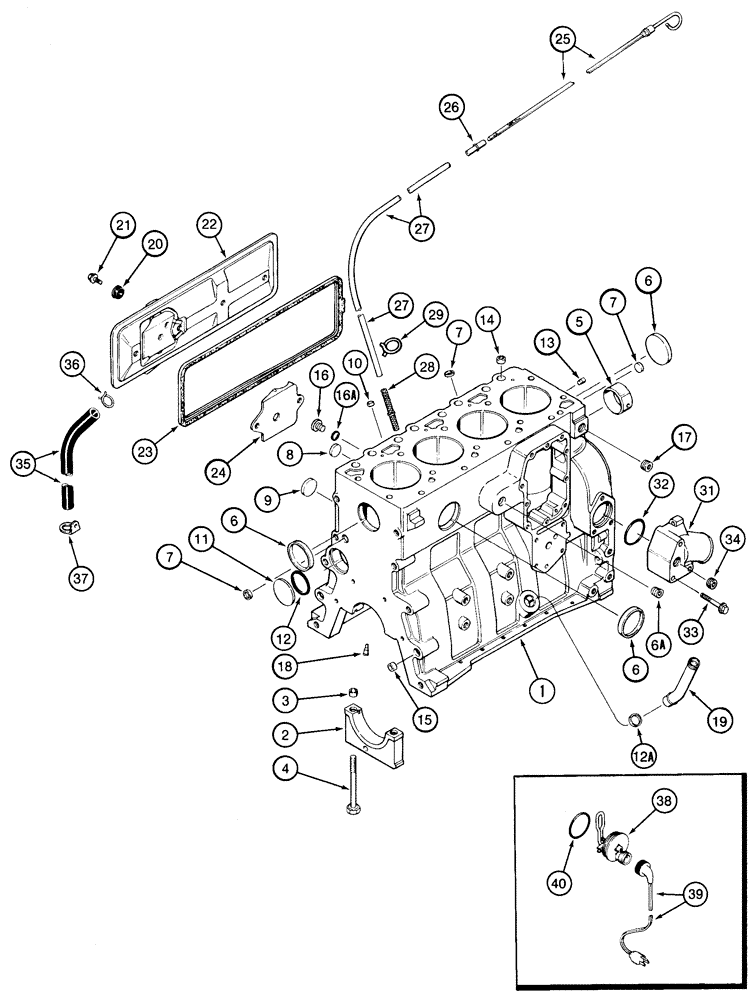

Запчасти Case IH 95XT (02-27[A]) - CYLINDER BLOCK, 4T-390 ENGINE (EUROPE) (02) - ENGINE

291838A2

ENGINE ASSEMBLY

ENGINE ASSY Complete, Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, Order 1989092C3

1шт.

1989092C3

BASIC ENGINE

Service Engine, Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Inj Pump, Injectors and Lines, Front Pulley, Belt Tensioner and Turbocharger; See Note

1шт.

J933236

SHORT ENGINE

Includes Stripped Block, Pistons, Connecting Rods And Bearings, Crankshaft And Bearings, Consists Of 1 - 8

1шт.

JR933236

REMAN-SHORT ENGINE

Remanufactured

1шт.

JC933236

CORE-SHORT ENGINE

Return Part Number

1шт.

1

87444172

BLOCK ASSY.

Stripped, Consists Of 2 - 8, See Page(s) 2-89, Order J933220, 250838A2

1шт.

2

J900967

BEARING CAP

5шт.

3

J900068

BEARING WASHER

18 mm OD

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

10шт.

5

REF

INSTRUCTION

Bushing, See Page(s) 2-59

1шт.

6

A77782

PLUG

58 mm

3шт.

6a

A77505

PLUG

3/4 PT, If Used

1шт.

7

J900956

PLUG

18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

2шт.

J933220

PACKAGE,SERVICE

Includes 9 - 18

1шт.

9

J900958

PLUG

32 mm OD

2шт.

10

J900955

PLUG

10 mm OD

1шт.

11

172599

PLUG,Exp, 2 3/8"

60 mm OD, Includes 12

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

12a

J920706

PLUG

22 mm

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J902343

DOWEL

16 mm OD

2шт.

15

J900068

BEARING WASHER

18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

10 mm, Includes 16A

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

17

A77429

PLUG

1/2 PT

1шт.

17a

J678921

PLUG

14 mm, Not Used In This Application, Includes 17B

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

Not used in this application

1шт.

17c

J932296

PLUG

Not Used In This Application, Includes 17D

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

Not Used In This Application

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

Not Used In This Application

1шт.

18

J930139

NOZZLE CAP

4шт.

19

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

1шт.

20

J900267

SEAL

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

22

J925680

COVER

1шт.

23

J283767

GASKET,7.4mm Thk

1шт.

24

J907586

BAFFLE

1шт.

25

J933333

DIPSTICK

1шт.

26

J905802

FITTING,9.53 mm OD x 39 mm L

1шт.

27

J905801

TUBE

1шт.

28

A77645

TUBE

1шт.

29

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

31

J903102

CONNECTION

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

34

A77429

PLUG

1/2 PT

2шт.

35

J918612

TUBE,360.00 mm

1шт.

36

J904230

CLAMP,25.4mm

1шт.

37

J928989

CLIP

1шт.

196803A1

KIT

Engine Block Heater, 120V, Consists Of 38 - 40

1шт.

38

NSS

NOT SOLD SEPARAT

Element

1шт.

39

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

40

J910517

O-RING

240 Volt

1шт.

41

J916662

UNIT HEATER

240V, Not Illustrated

1шт.

42

112837A1

PLUG

Not Illustrated

1шт.

43

331-83

1/2 oz, Not Illustrated

1шт.

44

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in, Not Illustrated

1шт.
