Запчасти Case IH 95XT (02-21[A]) - OIL PUMP, PAN & HEATER, 4T-390 EMISSIONS CERTIFIED ENGINE (NORTH AMERICA JAF0237964-) (02) - ENGINE

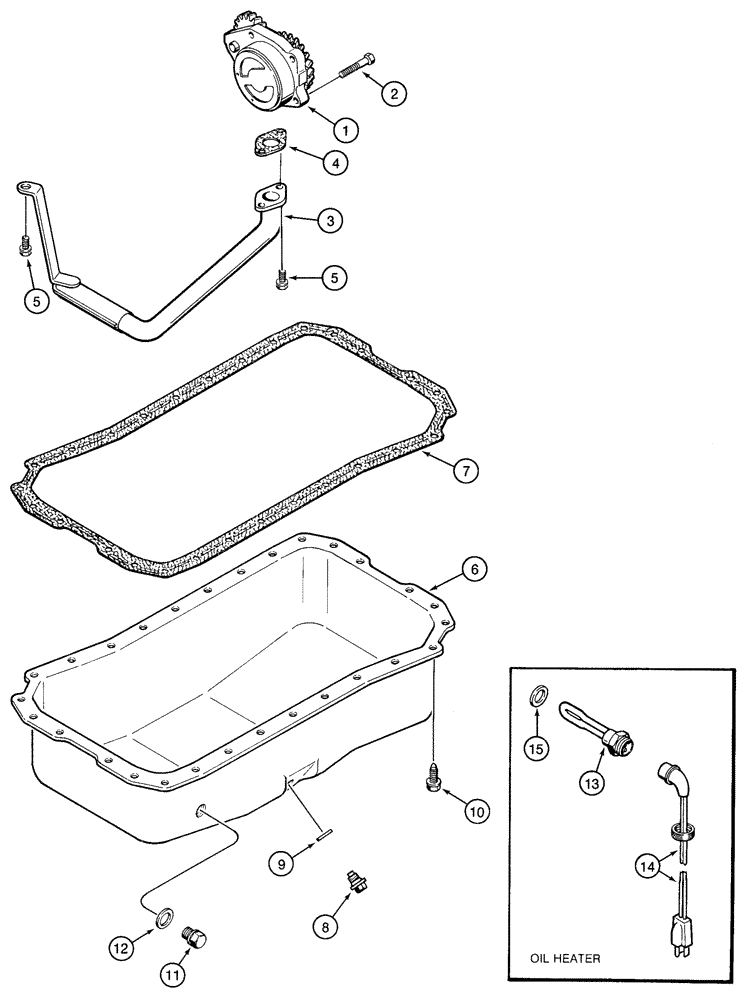

Схема запчастей Case IH 95XT - (02-21[A]) - OIL PUMP, PAN & HEATER, 4T-390 EMISSIONS CERTIFIED ENGINE (NORTH AMERICA JAF0237964-) (02) - ENGINE
13
5
11
1
6
12
3
2
5
4
15
9
8
14
10
7

Артикул

Название

Примечание

Количество

1

J930336

PUMP, ENGINE OIL

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. Only

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J905223

TUBE

1шт.

4

J931349

GASKET

1шт.

5

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

3шт.

6

J907570

PAN

1шт.

7

NSS

NOT SOLD SEPARAT

Seal

1шт.

8

J924147

PLUG,M18 x 1.5

M18

1шт.

9

J920773

SEALING WASHER

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

28шт.

11

J924148

PLUG,M22 x 1.5

M22

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

A77673

GASKET KIT

Consists Of 4, 7, 9

1шт.

A77490

KIT

Engine Oil Heater, 120V, Consists Of 13, 14, Order J902425

1шт.

13

NSS

NOT SOLD SEPARAT

Element

1шт.

14

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

Выбрано товаров: 19
