(09-74) - REAR VIEW MIRROR & MOUNTING (EUROPE ONLY)

Запчасти Case IH 95XT (09-74) - REAR VIEW MIRROR & MOUNTING (EUROPE ONLY) (09) - CHASSIS/ATTACHMENTS

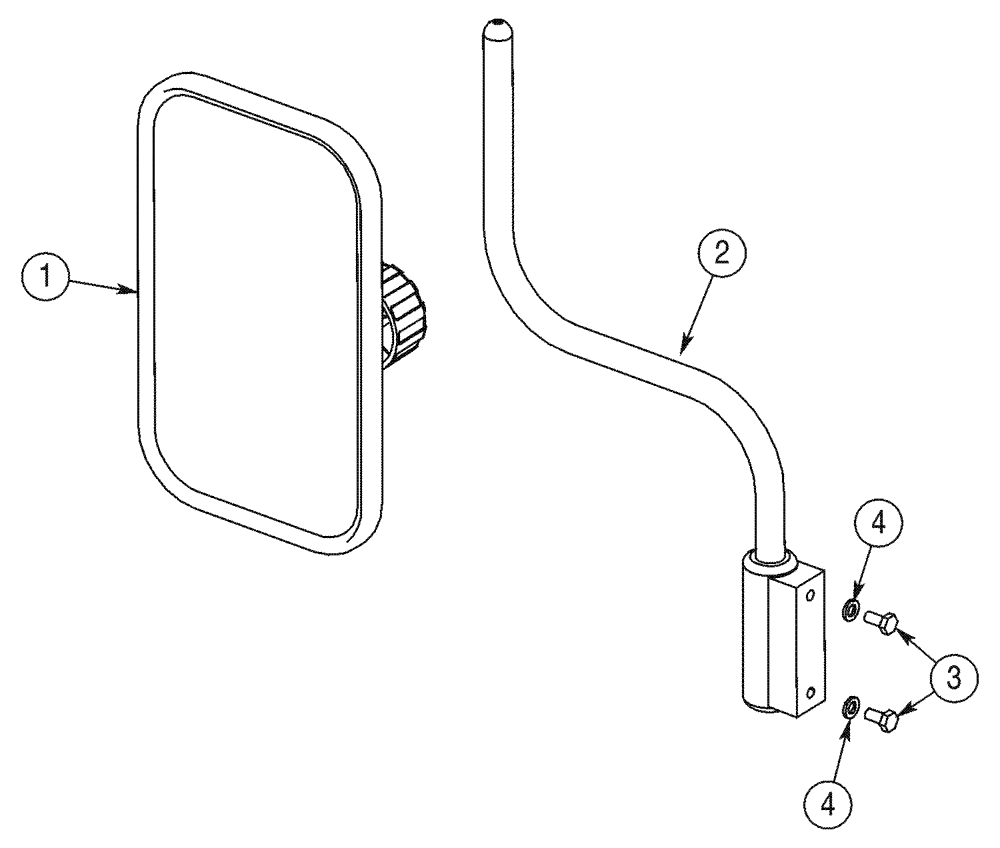

Схема запчастей Case IH 95XT - (09-74) - REAR VIEW MIRROR & MOUNTING (EUROPE ONLY) (09) - CHASSIS/ATTACHMENTS
3
4
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

235994A1

MIRROR,264mm L x 162mm W

Exterior

1шт.

2

310860A1

SUPPORT

1шт.

3

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 4
