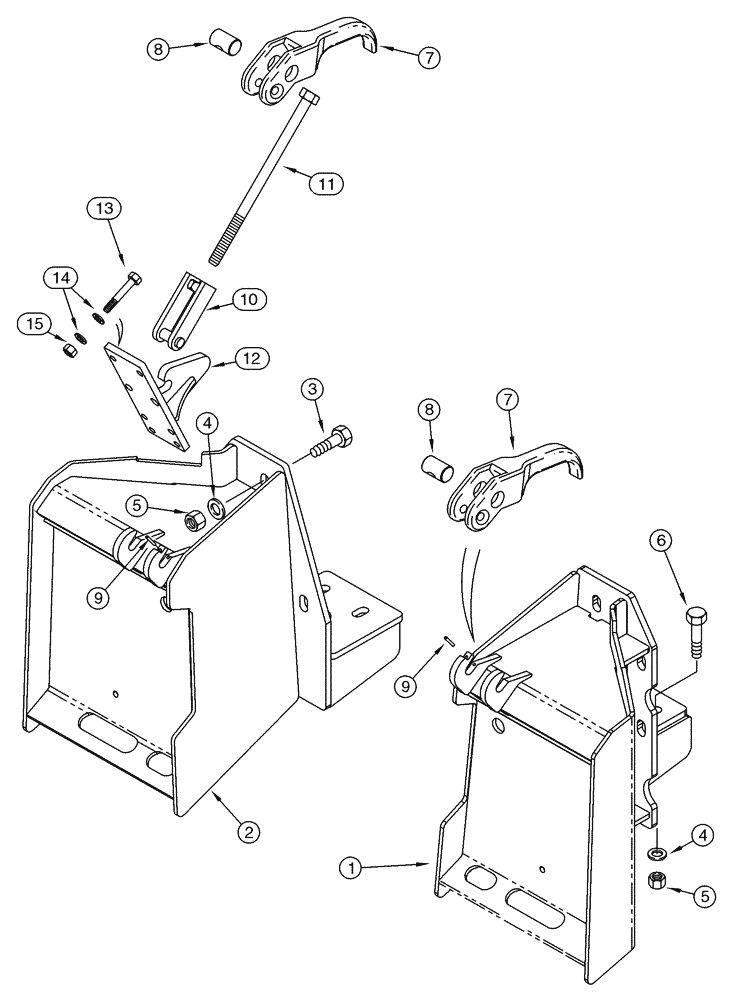

Запчасти Case IH 95XT (09-62) - BACKHOE - FRAME (NORTH AMERICA), D125 BACKHOE (09) - CHASSIS/ATTACHMENTS

1

300462A1

MOUNTING PARTS

Left Hand, For One Piece Frame, See Page 9-167, Ref. 5

1шт.

2

300463A1

MOUNTING PARTS

Right Hand, For One Piece Frame, See Page 9-167, Ref. 5

1шт.

3

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

10шт.

4

H426817

WASHER

14шт.

5

232-41112

NUT,3/4"-10, GC

14шт.

6

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

3/4 x 3

4шт.

7

298185A1

HANDLE

Replaces 226648A1

2шт.

8

224024A1

PIN,38.1mm OD x 60mm L

2шт.

9

38-31224

PIN,3/16" x 1 1/2", Coiled

3/16" x 1 1/2", Coiled

2шт.

10

224029A1

CLEVIS

2шт.

11

828-20260

BOLT,Hex, M20 x 2.5 x 260mm, Cl 10.9

M20 x 260; 10.9

2шт.

12

226812A2

HOOK

Replaces 226812A1

2шт.

13

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

8шт.

14

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

16шт.

15

832-41312

NUT,M12 x 1.75, Cl 10

8шт.
