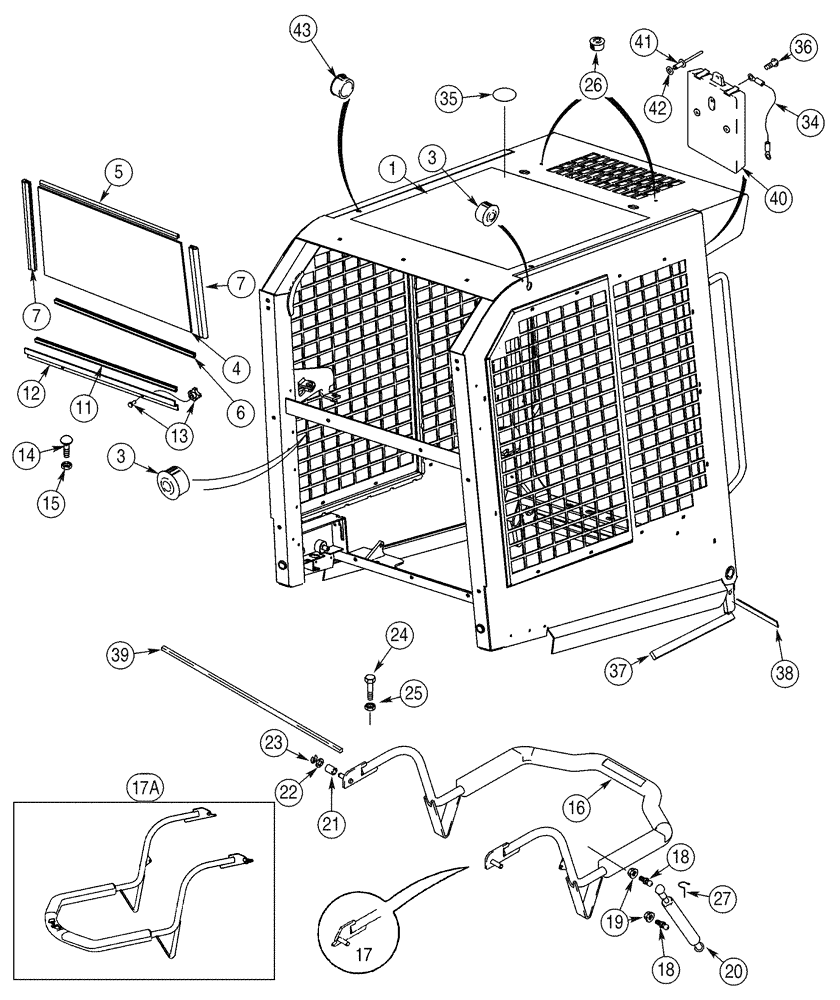

Запчасти Case IH 95XT (09-39) - CANOPY, ROPS - FRAME & SEAT BAR, MODELS W/DELUXE HEATER (09) - CHASSIS/ATTACHMENTS

1

366819A1

ROPS, Two Piece Side Screen, Machinery Item, North American Models JAF0311156-JAF0311356, European Models JAF0274351-JAF0274359, Order Decals Separately Ref 11 (9-195), Ref 1 & 2 (9-199), Ref 1 & 6 (9-205), Also Order 4 - 15

1шт.

1

430800A1

ROPS, One Piece Side Screen, Machinery Item, Not Illustrated, North American Models JAF0311357-, European Models JAF0274360-, Order Decals Separately Ref 11 (9-195), Ref 1 & 2 (9-199), Ref 1 & 6 (9-205), Also Order 4 - 15

1шт.

3

353-411

PLUG,Dome, 1.000" hole, Nylon

3-4шт.

4

373200A1

GLASS

Rear

1шт.

5

373315A1

DOOR SEAL

579 mm (22-13/16 in)

1шт.

6

321275A1

SEAL

587 mm (23-1/8 in)

1шт.

7

373316A1

DOOR SEAL

376 mm (14-13/16 in)

2шт.

8

833-40006

SPRING NUT,M6, U

M6

2шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

10

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

11

333988A1

SEAL

639 mm (25-5/32 in)

1шт.

12

321270A1

RETAINER

334 mm (13-5/32 in) Between Bolt Holes, If Used

1шт.

12

414792A2

BRACKET

300 mm (11-13/16 in) Between Bolt Holes, Replaces 414792A1, If Used

1шт.

13

362337A1

KNOB

2шт.

14

611-8020

CARRIAGE BOLT,M8 x 20mm, Class 4.6

3шт.

15

832-41308

NUT,M8 x 1.25, Cl 10

3шт.

16

250842A3

BAR ASSY.

North American Models -JAF0257312, European Models -JAF0274307

1шт.

17

318038A1

BAR ASSY.

North American Models JAF0257313-JAF0311356, European Models JAF0274308-JAF0274359

1шт.

17a

419844A1

BAR

North American Models JAF0311357-, European Models JAF0274360-

1шт.

18

189609A1

BALL STUD,M8 x 1.25

M8

2шт.

19

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

20

189787A2

SHOCK ABSORBER

1шт.

21

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

2шт.

22

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

23

D143415

SNAP RING,0.50” ID, Klipring

1/2

2шт.

24

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

26

353-400

PLUG,Dome, .250" hole, Nylon

If used

2шт.

27

254307A1

CLIP

2шт.

34

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Manual, Operators, 15 in, Replaces L11541, L18331

1шт.

35

293887A1

COVER

70 mm (2-3/4 in), Models Without Lift Hooks

2шт.

36

R46463

SCREW,0.18" x 0.75"

1шт.

37

313149A1

SEAL

ROPS Screen to Chassis, 355 mm (14 in)

2шт.

38

313150A1

SEAL

ROPS Side Front Toe Guard, 774 mm (30-1/2 in)

1шт.

39

315083A1

SEALING STRIP

Window Frame, 610 mm (40 inch), Europe Only

1шт.

40

R46464

CASE

1шт.

41

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32

3шт.

42

495-31020

WASHER,#10

(13/64" x 15/32" x 3/64")

3шт.

43

414635A1

COVER,25.4mm OD x 0.51mm Thk

Gray, 25.4 mm (1 in), If Used

2шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
