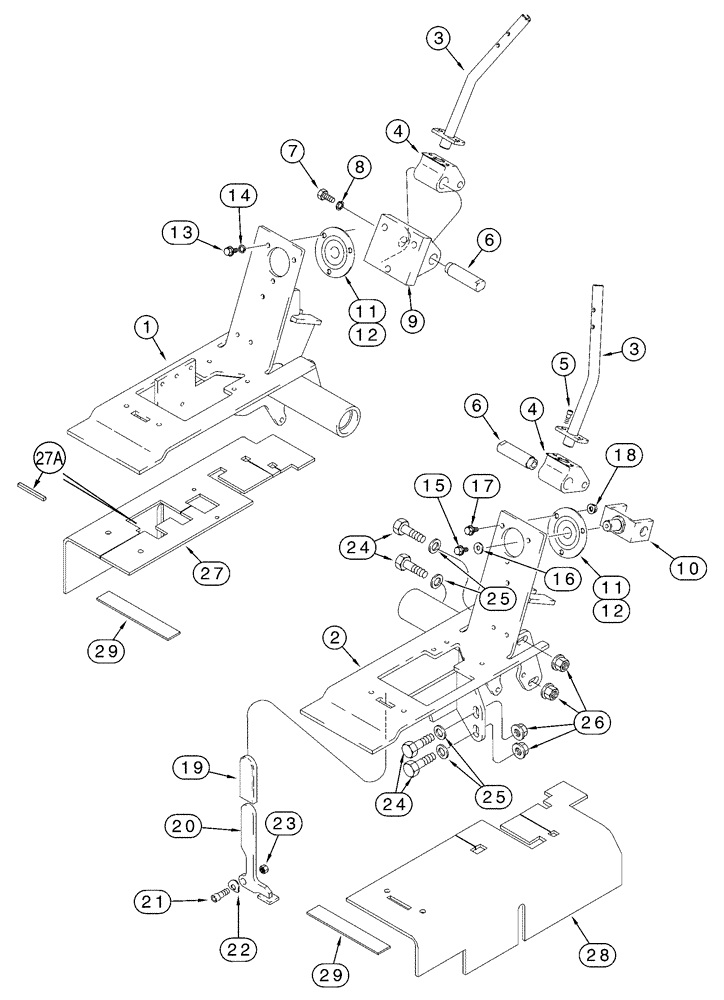

Запчасти Case IH 95XT (09-15) - CONTROLS, LOADER & GROUND DRIVE, MODELS W/FOOT CONTROLS (N.A. -JAF0311356 / EUROPE -JAF0274359) (09) - CHASSIS/ATTACHMENTS

1

186308A2

SUPPORT

Left Hand

1шт.

2

179492A4

SUPPORT

Right Hand, Replaces 179492A3

1шт.

3

275024A1

LEVER

For Attaching Parts, See Page, 4-59, 4-65

2шт.

4

238357A3

PIVOT

2шт.

5

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

4шт.

6

237774A1

SHAFT

2шт.

7

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

1шт.

8

492-11038

LOCK WASHER,3/8"

1шт.

9

301097A1

ARM

Left Hand

1шт.

10

237772A1

SUPPORT

Right Hand

1шт.

11

112380A1

BEARING ASSY

Incl 12

2шт.

12

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

Replaces 102776A1

1шт.

13

845-6016

BOLT,Hex Flg, M6 x 16mm, Cl 8.8

M6 x 16

3шт.

14

892-11006

LOCK WASHER,M6

3шт.

15

845-6016

BOLT,Hex Flg, M6 x 16mm, Cl 8.8

M6 x 16

1шт.

16

396-41028

WASHER,.281" x 7/8" x .098", HDN

1шт.

17

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

3шт.

18

825-5146

SERRATED NUT,M6, Flg Ser

3шт.

19

D126613

HANDLE

1шт.

20

246912A2

LEVER

1шт.

21

121-251

STEP BOLT,Hex Skt, 5/16" - 18 - 3/8" x 3/8"

1шт.

22

278332A1

SPRING WASHER

1шт.

23

230-4215

NUT,5/16"-18, GA

1шт.

24

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

26

825-51410

FLANGE NUT,M10, Flg Ser

8шт.

27

308877A1

PAD

Left Hand Console, Models With Deluxe Heater and Air Conditioning

1шт.

27a

313278A1

BAND

50 mm (2 inch), Lock Slot Cover, Models With Deluxe Heater and Air Conditioning

1шт.

28

308879A1

PAD

Right Hand Console, Models With Deluxe Heater and Air Conditioning

1шт.

29

313323A1

SEAL

Console, Models With Deluxe Heater and Air Conditioning

2шт.

25

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.
