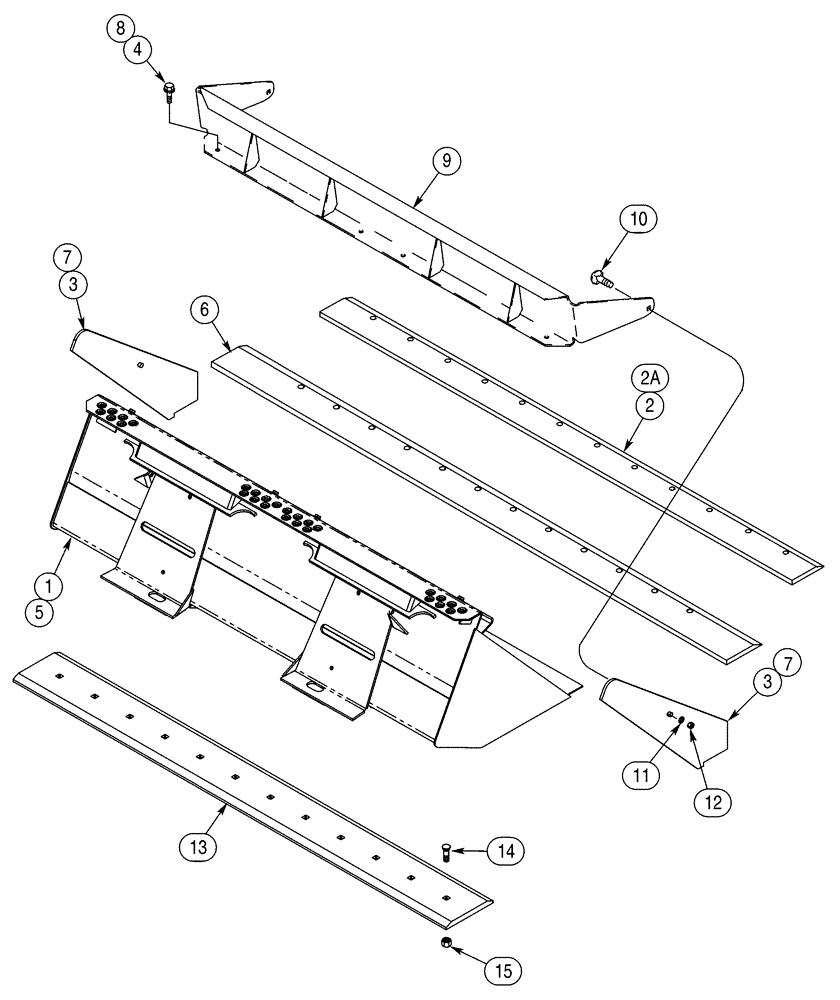

Запчасти Case IH 95XT (09-06) - LOADER BUCKETS (09) - CHASSIS/ATTACHMENTS

1

244554A2

ATTACHMENT

1860 mm (73 in) Wide Bucket, Machinery Item, Includes 2 - 4

1шт.

2

245106A1

EDGE, CUTTING

Welded On, No Longer Used, Order H438919, Ref. 2A

1шт.

2a

H438919

EDGE, CUTTING

152 mm (6 in), Welded On

1шт.

3

245109A2

EDGE, CUTTING

Side, Welded On

2шт.

4

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

4шт.

5

245078A2

BUCKET

Heavy Duty, 1860 mm (73 in), Machinery Item, Includes 6 - 8

1шт.

6

245108A1

EDGE, CUTTING

Welded On

1шт.

7

245109A2

EDGE, CUTTING

Side, Welded On

2шт.

8

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

4шт.

9

252645A2

HINGED SIDE

Extension, Used With 244554A2, 245078A2

1шт.

10

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

12 x 35 mm

2шт.

11

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

12

829-1412

NUT,M12, Cl 10.9

2шт.

13

294681A1

EDGE, CUTTING

Bolt-On, 1860 mm (73 in), Used With 244554A2, 245078A2

1шт.

14

420-21036

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

12шт.

15

329-1010

NUT,5/8"-11, G8

12шт.
