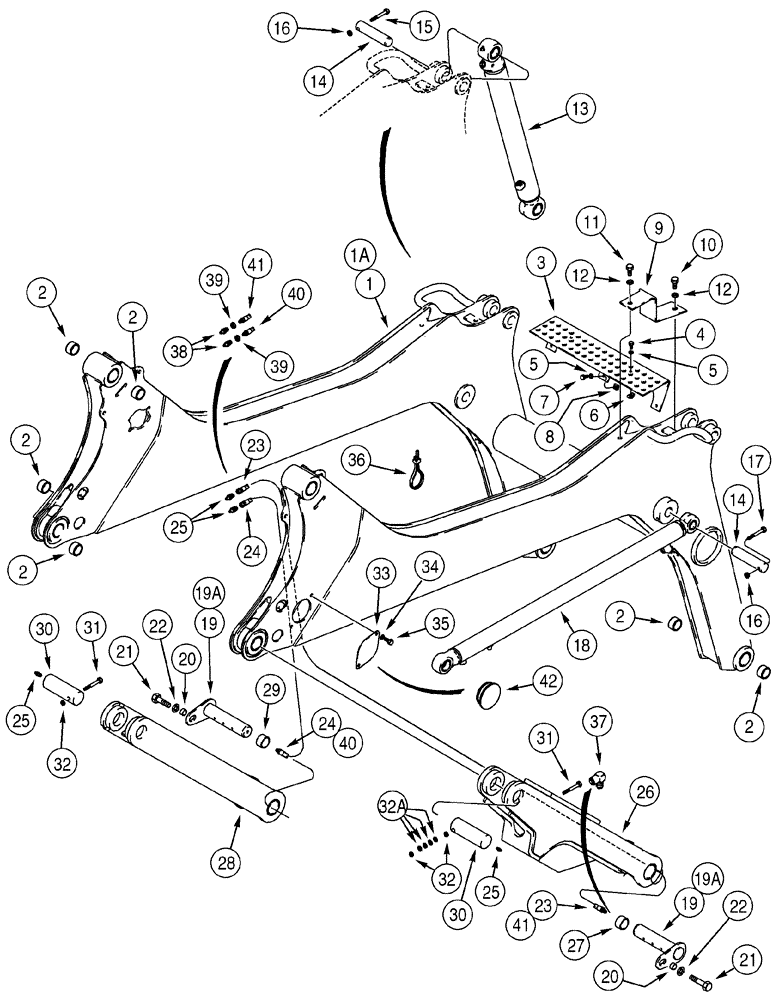

Запчасти Case IH 95XT (09-01) - LOADER LIFT FRAME (09) - CHASSIS/ATTACHMENTS

229198A5

ARM

Loader, Includes 1, 2, Used In Production, For Service Order 307158A1, Ref 1, North American Models -JAF0311356, European Models -JAF0274359

1шт.

229198A6

Loader Arm, Includes 1A, 2, Used In Production, For Service Order 307158A2, Ref 1A, North American Models JAF0311357-, European Models JAF0274360-

1шт.

1

307158A1

ARM

Includes 229198A5, Also Includes Ref 2, Also Includes Decals 4, 5, 6, 7, See Page(s) 9-195, Also Includes Decals 15, See Page(s) 9-201, Also Includes Decals 3, 4, See Page(s) 9-205, North American Models -JAF0311356, European Models -JAF0274359

1шт.

1a

307158A2

ARM

Frame, Includes 229198A6, Also Includes Ref 2, Also Includes Decals 19, 20, 21, See Page(s) 9-197, Also Includes Decals 15, See Page(s) 9-201, Also Includes Decals 3, 4, See Page(s) 9-205, North American Models JAF0311357-, European Models JAF0274360-

1шт.

2

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

12шт.

3

245828A1

SHEET ASSY.

Step, Upper, 620 mm (24-13/32 in) wide, North American Models -JAF0311356, European Models -JAF0274359

1шт.

3

432328A1

STEP

Upper, 476 mm (18-3/4 in) wide, North American Models JAF0311357-, European Models JAF0274360-

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

6

122158A1

NUT,M8, U

2шт.

7

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

8

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

3шт.

9

198786A1

COVER

Models With Piston High Flow Hydraulics, See Page(s) 8-97 - 8-127, Models With Gear High Flow Hydraulics, See Page(s) 8-143 - 8-189

1шт.

10

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

13

258426A3

CYLINDER ASSY.,Double Acting, 34.9mm Rod, 525mm Stroke

Bucket Tilt, 70 ID x 525 mm strk, Replaces 258426A2, See Page(s) 8-93

2шт.

13

258426A3R

95 XT

REMAN-HYD CYLINDER

2шт.

13

258426A3C

Return Number

CORE-HYD CYLINDER

2шт.

14

139089A1

PIN,35mm OD x 149mm L

4шт.

15

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

16

832-41310

NUT,M10 x 1.5, Cl 10

4шт.

17

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

18

139091A3

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1245mm Stroke

Loader Lift, 64 ID x 1245 mm strk, 45 mm dia rod, See Page(s) 8-91

2шт.

18

139091A3R

95XT

REMAN-HYD CYLINDER

2шт.

18

139091A3C

Return Number

CORE-HYD CYLINDER

2шт.

18

300873A2

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 1245mm Stroke

Loader Lift, 64 ID x 1245 mm strk, 50 mm dia rod, Service Option - Replacement For 139091A3, See Figure 08-11A

2шт.

18

300873A2R

95XT CASE SKID STEER LOADER, Loader Lift

REMAN-HYD CYLINDER

2шт.

18

300873A2C

Return Number

CORE-HYD CYLINDER

2шт.

19

254029A1

PIN

Ear 6.35 mm thick, No Longer Available, Order 254029A2

2шт.

19a

254029A2

PIN,45mm OD x 214mm L

Ear 4.52 mm thick, North American Models -JAF0311356, European Models -JAF0274359

2шт.

19a

433198A1

PIN,45mm OD x 214mm L

Flange 4.52 mm Thick, North American Models JAF0311357-, European Models JAF0274360-

2шт.

20

49335K

SPACER,1/2" X-Strng Pipe x .406"

2шт.

21

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

22

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

23

220315A1

HOSE ASSY.

Right Hand, 2500 mm (98-1/2 in), -JAF0257188

1шт.

24

194613A1

HOSE ASSY.

Left Hand, 900 mm (35-1/2 in), -JAF0257188

1шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

See Ref 37, -JAF0257188

4шт.

26

227539A5

ROD, CONNECTING

Right Hand, Replaces 227539A4, Includes 27

1шт.

27

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

2шт.

28

193042A4

ROD, CONNECTING

Left Hand, Replaces 193042A3, Includes 29

1шт.

29

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

2шт.

30

179637A1

PIN,45mm OD x 134mm L

2шт.

31

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

2шт.

33

253490A1

COVER

If Equipped

2шт.

35

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

37

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Models with Attachment Hydraulics

1шт.

38

219-8

LUBE NIPPLE,1/4" - 28 NPTF

JAF0257189-

2шт.

39

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT, Start Serial: JAF0257189

2шт.

40

1339006C1

TUBE,914 mm L

Left Hand, 914 mm (36 in), Start Serial: JAF0257189

1шт.

41

1339091C1

HYDRAULIC HOSE,3.17mm ID x 2718mm L

Right Hand, 2718 mm (107 in), N.A. Only, JAF0257189-JAF0311356, Europe Only, -JAF0274359

1шт.

41

1339003C1

TUBE,2032 mm L

Right Hand, 2032 mm (80 in), N.A. Only, JAF0311357-, Europe Only, JAF0274360-

1шт.

41

1339002C1

TUBE,2388 mm L

2388 mm (94 in), If Used

1шт.

42

313677A1

COVER

If Equipped

2шт.

32

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

34

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

32a

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.
