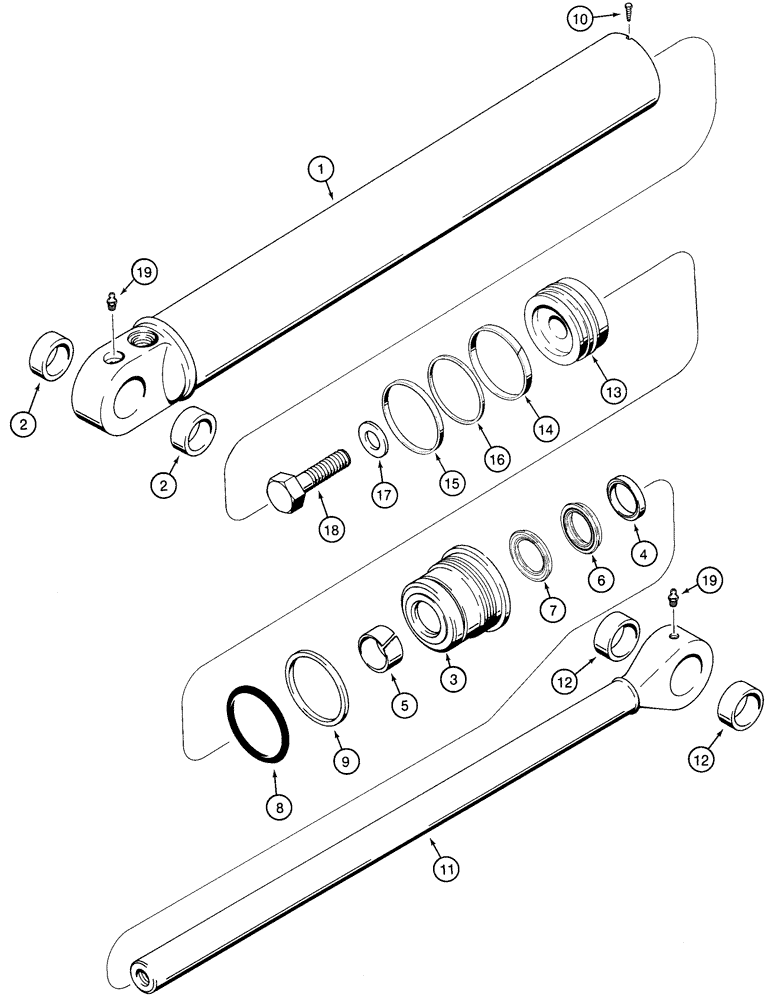

Запчасти Case IH 95XT (08-66[B]) - CYLINDER ASSY. (305352A1), BACKHOE BOOM (NORTH AMERICA), D125 BACKHOE (08) - HYDRAULICS

305352A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 551mm Stroke

Boom, 76 ID x 551 mm strk, Consists Of 1 - 19

1шт.

1346451C1

TUBE

Consists Of 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Tube

1шт.

2

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

1-1/2 x 1-7/8 x 11/16

2шт.

NSS

NOT SOLD SEPARAT

Gland, Packing, Consists Of 3 - 9

1шт.

3

1346417C1

GLAND

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

5

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

6

NSS

NOT SOLD SEPARAT

Seal, Order 1543256C1

1шт.

7

NSS

NOT SOLD SEPARAT

Seal, Order 1543256C1

1шт.

8

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

9

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

305353A1

ROD ASSY.

38 mm (1-1/2 in) dia, Consists Of 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Rod

1шт.

12

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

1-1/2 x 1-7/8 x 11/16

2шт.

13

305356A1

PISTON

1шт.

14

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

15

NSS

NOT SOLD SEPARAT

Seal, Order 1543256C1

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

18

28-1440

BOLT,Hex, 7/8" - 14 x 2-1/2", Gr 8

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

Consists of 4 - 9, 14 - 16

1шт.
