Запчасти Case IH 95XT (08-66[A]) - CYLINDER ASSY. (1346450C2), BACKHOE BOOM (NORTH AMERICA), D125 BACKHOE (08) - HYDRAULICS

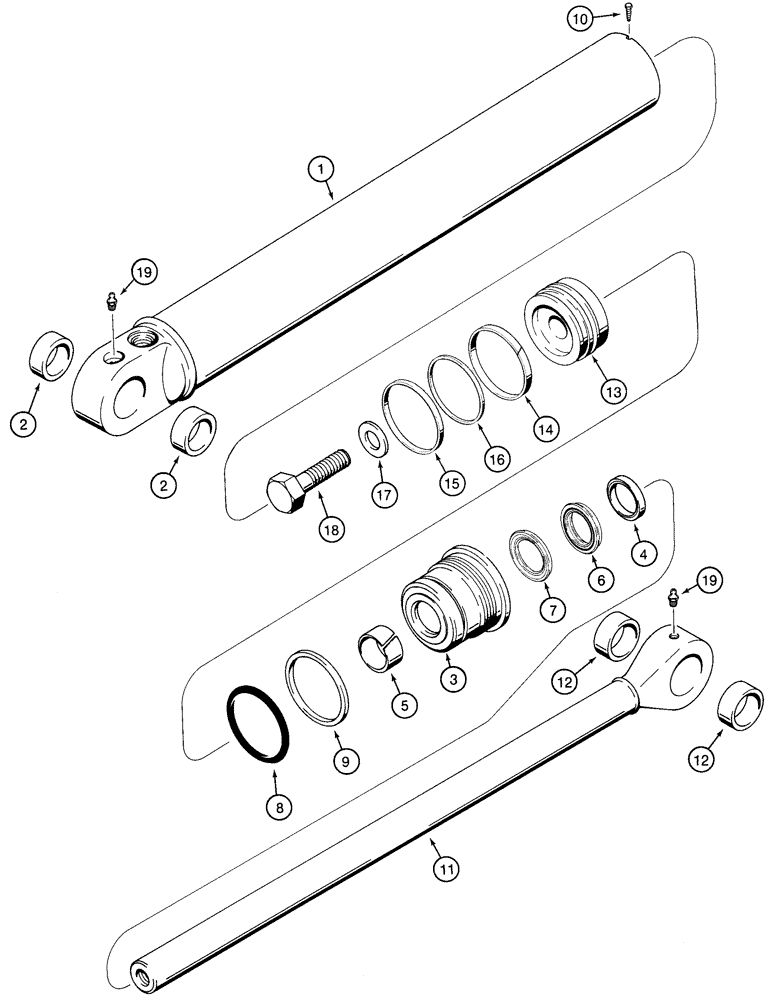

Схема запчастей Case IH 95XT - (08-66[A]) - CYLINDER ASSY. (1346450C2), BACKHOE BOOM (NORTH AMERICA), D125 BACKHOE (08) - HYDRAULICS
15
2
7
8
16
6
9
12
17
11
12
13
19
2
4
19
14
3
5
18
1
10

Артикул

Название

Примечание

Количество

1346450C2

CYLINDER ASSY.

Boom, Consists Of 1 - 19

1шт.

1346451C1

TUBE

Consists Of 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Tube

1шт.

2

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

2шт.

NSS

NOT SOLD SEPARAT

Gland, Packing, Consists Of 3 - 9

1шт.

3

1346417C1

GLAND

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

5

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

6

NSS

NOT SOLD SEPARAT

Seal, Order 1543256C1

1шт.

7

NSS

NOT SOLD SEPARAT

Seal, Order 1543256C1

1шт.

8

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

9

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

1346455C2

PISTON ROD

Consists Of 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Rod

1шт.

12

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

2шт.

13

G108518

PISTON

1шт.

14

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

Consists of 4 - 9, 14 - 16

1шт.

Выбрано товаров: 24
