Запчасти Case IH 95XT (08-59) - HYDRAULIC SYSTEM - BACKHOE DIPPER CYLINDER (NORTH AMERICA), D125 BACKHOE, W/TUBES AT CONTROL VALVE (08) - HYDRAULICS

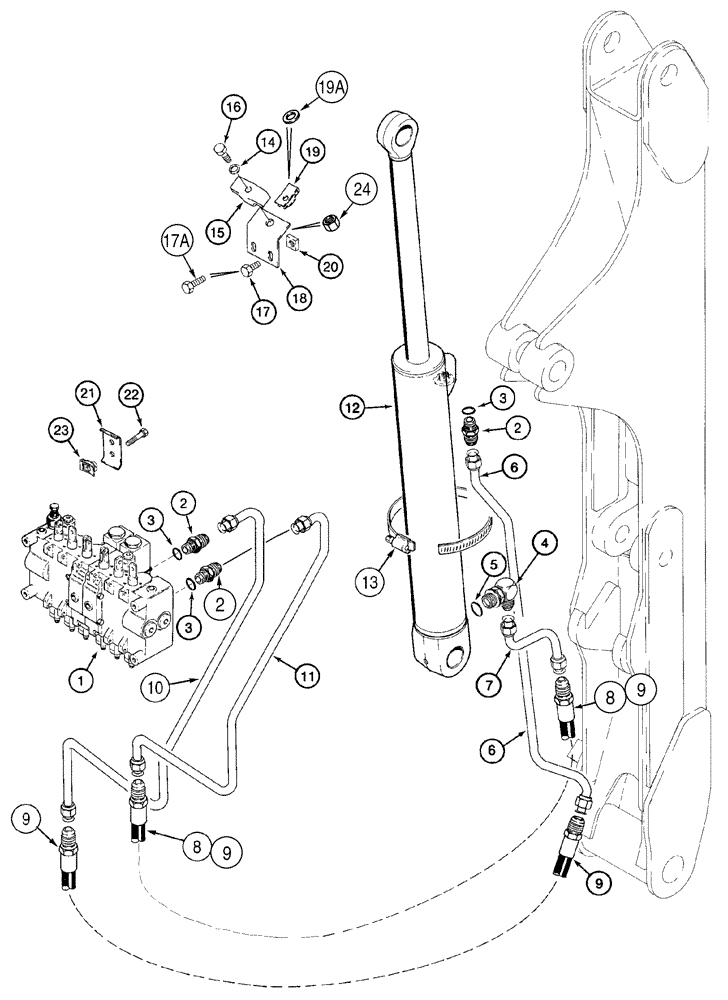

Схема запчастей Case IH 95XT - (08-59) - HYDRAULIC SYSTEM - BACKHOE DIPPER CYLINDER (NORTH AMERICA), D125 BACKHOE, W/TUBES AT CONTROL VALVE (08) - HYDRAULICS
3
10
17a
22
20
2
8
3
2
21
11
7
17
5
1
2
9
13
6
14
9
15
19a
19
24
8
12
3
9
23
16
9
6
4
18

Артикул

Название

Примечание

Количество

1

H674500

VALVE

Backhoe, See Page(s) 8-217 - 8-227

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H439269

ELBOW

Includes 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

255557A1

TUBE

Rod End

1шт.

7

255556A1

TUBE,116, 88 mm Length

Closed End

1шт.

8

256928A1

HOSE,9.52 mm ID x 1480.00 mm

Closed End, No Longer Used, Order 256927A1, Ref. 9

1шт.

9

256927A1

HOSE ASSY.

1550 mm (61 in), Rod End

1-2шт.

10

256136A1

TUBE,595, 225 mm Length

Rod End

1шт.

11

256134A1

TUBE,560, 255 mm Length

Closed End

1шт.

12

1346411C3

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 497.8mm Stroke

76 ID x 498 mm strk, Dipper, Replaces 1346411C2, See Page(s) 8-237

1шт.

13

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

1шт.

14

492-11031

LOCK WASHER,5/16"

2шт.

15

D120613

CLAMP,20mm ID

1шт.

16

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

17

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

If Used

2шт.

17a

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

If Used

2шт.

18

253977A1

SUPPORT

1шт.

19

H346650

NUT

If Used

1шт.

19a

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

If Used

3шт.

20

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

2шт.

21

H45476

CLAMP

2шт.

22

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

23

H346650

NUT

4шт.

24

232-4115

LOCK NUT,5/16"-18, GC

1шт.

Выбрано товаров: 26
