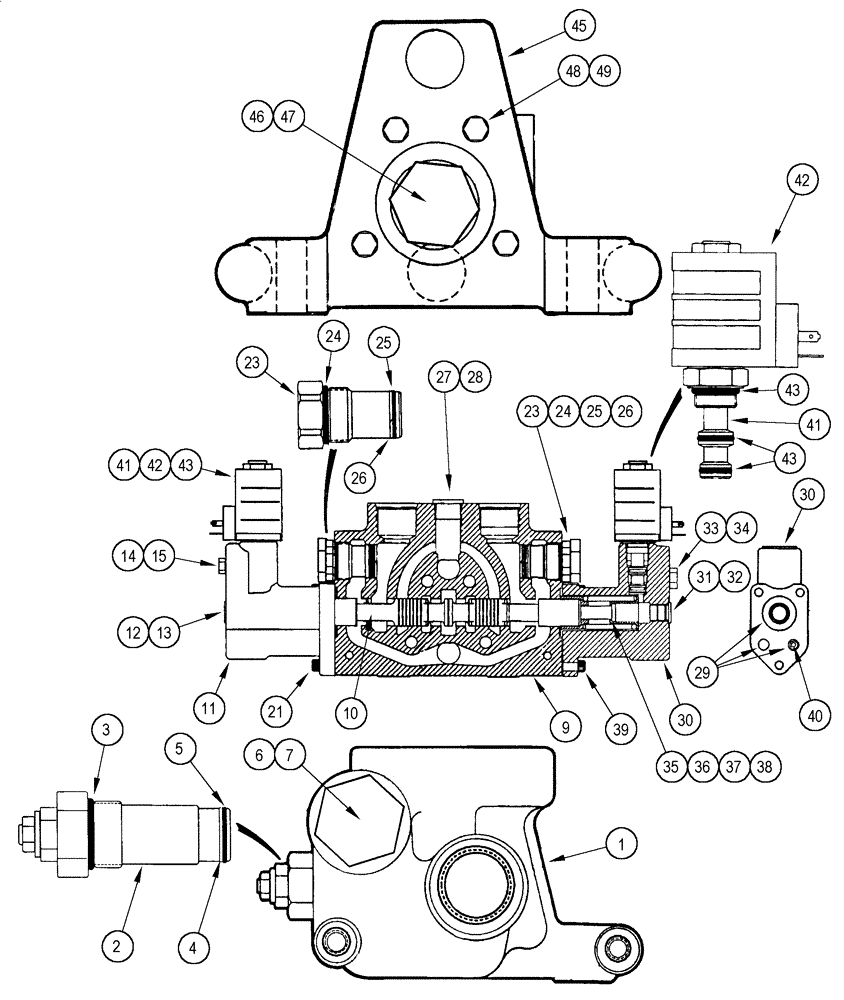

Запчасти Case IH 95XT (08-50) - CONTROL VALVE, HIGH FLOW, GEAR (08) - HYDRAULICS

227084A1

VALVE

Consists Of 1 - 49

1шт.

245496A1

LARGE PLATE

PLATE, LARGE Inlet, Consists Of 1 - 8

1шт.

1

245501A1

LARGE PLATE

PLATE, LARGE

1шт.

245502A1

VALVE

Consists Of 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

4

D51530

RING

1шт.

5

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

1шт.

6

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 7

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

245503A1

SEAL KIT

Not Illustrated, See Note

1шт.

245497A1

ELEMENT

Consists Of 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

Body

1шт.

10

NSS

NOT SOLD SEPARAT

Spool

1шт.

245504A1

SOLENOID

Port 'B' End, Consists Of 11 - 22

1шт.

11

245509A1

BODY

1шт.

12

76349

PLUG,9/16" - 18 ORB

Incl. 13

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

9672438

PLUG,7/16" - 20 ORB

Incl. 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

245510A1

SPRING

Not Illustrated, Consists Of 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

17

NSS

NOT SOLD SEPARAT

Spring

1шт.

18

NSS

NOT SOLD SEPARAT

Plunger

1шт.

19

NSS

NOT SOLD SEPARAT

Stop

1шт.

20

NSS

NOT SOLD SEPARAT

Collar

1шт.

21

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

3шт.

22

245511A1

SET SCREW

Not Illustrated

1шт.

245506A1

PLUG

Consists Of 23 - 26

2шт.

23

NSS

NOT SOLD SEPARAT

Plug

1шт.

24

238-6023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 6, 90 Duro

1шт.

25

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

26

L35295

SEALING RING,Split, 24.38mm ID x 27.13mm OD x 1.32mm Thk

1шт.

27

86512512

PLUG,7/8" - 14 ORB

Incl. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

245507A1

SEAL KIT

See Note

2шт.

245505A1

SOLENOID

Port 'A' End, Consists Of 30 - 40

1шт.

30

245512A1

BODY

1шт.

31

76349

PLUG,9/16" - 18 ORB

Incl. 32

1шт.

32

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

33

9672438

PLUG,7/16" - 20 ORB

Incl. 34

1шт.

245513A1

SPRING

Consists Of 35 - 38

1шт.

35

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

36

NSS

NOT SOLD SEPARAT

Spring

1шт.

37

NSS

NOT SOLD SEPARAT

Plunger

1шт.

38

NSS

NOT SOLD SEPARAT

Collar

1шт.

39

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

3шт.

40

245511A1

SET SCREW

1шт.

245508A1

SOLENOID VALVE

Consists Of 41, 42, 43

2шт.

245516A1

SET OF PARTS

Consists Of 42, 43

1шт.

41

NSS

NOT SOLD SEPARAT

Tube

1шт.

245514A1

SOLENOID

Consists Of 43

1шт.

42

245515A1

COIL ASSY.

1шт.

43

245517A1

SEAL KIT

Seal

1шт.

44

245503A1

SEAL KIT

Not Illustrated, See Note

1шт.

245498A1

LARGE PLATE

PLATE, LARGE Outlet, Consists Of 44, 45, 46

1шт.

45

245518A1

LARGE PLATE

PLATE, LARGE

1шт.

46

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 46

1шт.

47

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

245499A1

SET OF PARTS

Consists Of 48, 49

1шт.

48

NSS

NOT SOLD SEPARAT

Bolt

4шт.

49

NSS

NOT SOLD SEPARAT

Washer, Lock

4шт.
