Запчасти Case IH 95XT (08-47) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR, CHARGE PRESSURE & PILOT RELIEF LINES (08) - HYDRAULICS

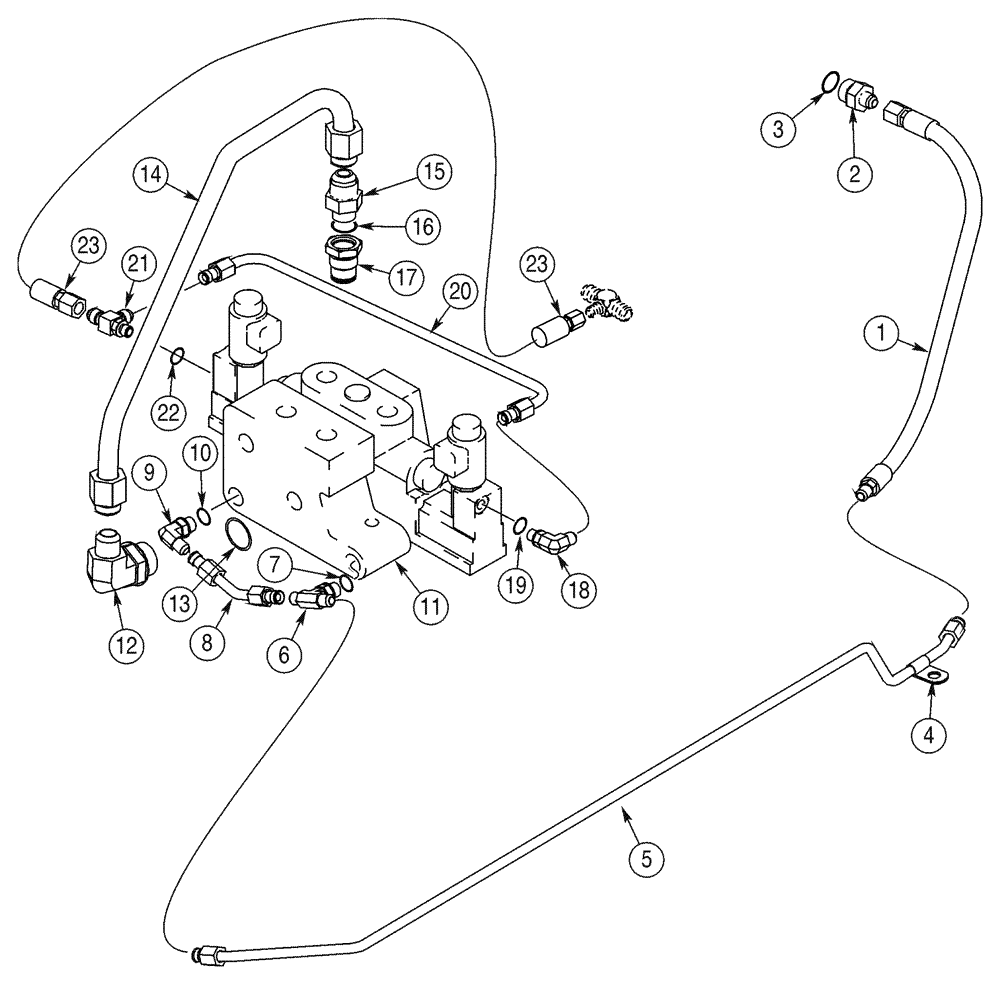

Схема запчастей Case IH 95XT - (08-47) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR, CHARGE PRESSURE & PILOT RELIEF LINES (08) - HYDRAULICS
11
22
1
18
3
13
6
23
16
19
12
4
9
21
10
20
5
14
15
7
2
8
17
23

Артикул

Название

Примечание

Количество

1

416423A1

HOSE ASSY.

540 mm (21-1/4 in), Charge Pressure, High Flow

1шт.

2

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

Includes 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

5

430866A1

TUBE

Charge Pressure

1шт.

6

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 adj Or x fl x fl, Includes 7

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

236528A4

TUBE,9.53 mm OD

1шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Includes 10

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

227084A1

VALVE

See Page(s) 8-185 - 8-189

1шт.

12

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Includes 13

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

14

419493A2

TUBE

High Flow, Power Beyond, Replaces 419493A1

1шт.

15

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

417368A1

SLEEVE

1шт.

18

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. 19

1шт.

19

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

20

254835A4

TUBE,9.53 mm OD, 406, 71 mm Length

1шт.

21

255403A1

TEE

Includes 22

1шт.

22

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

23

416706A1

HOSE ASSY.

433 mm (17 in), Pilot Return, For Attaching Parts, See Page 8-183, Ref. 16

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in, Not Illustrated

2шт.

Выбрано товаров: 24
