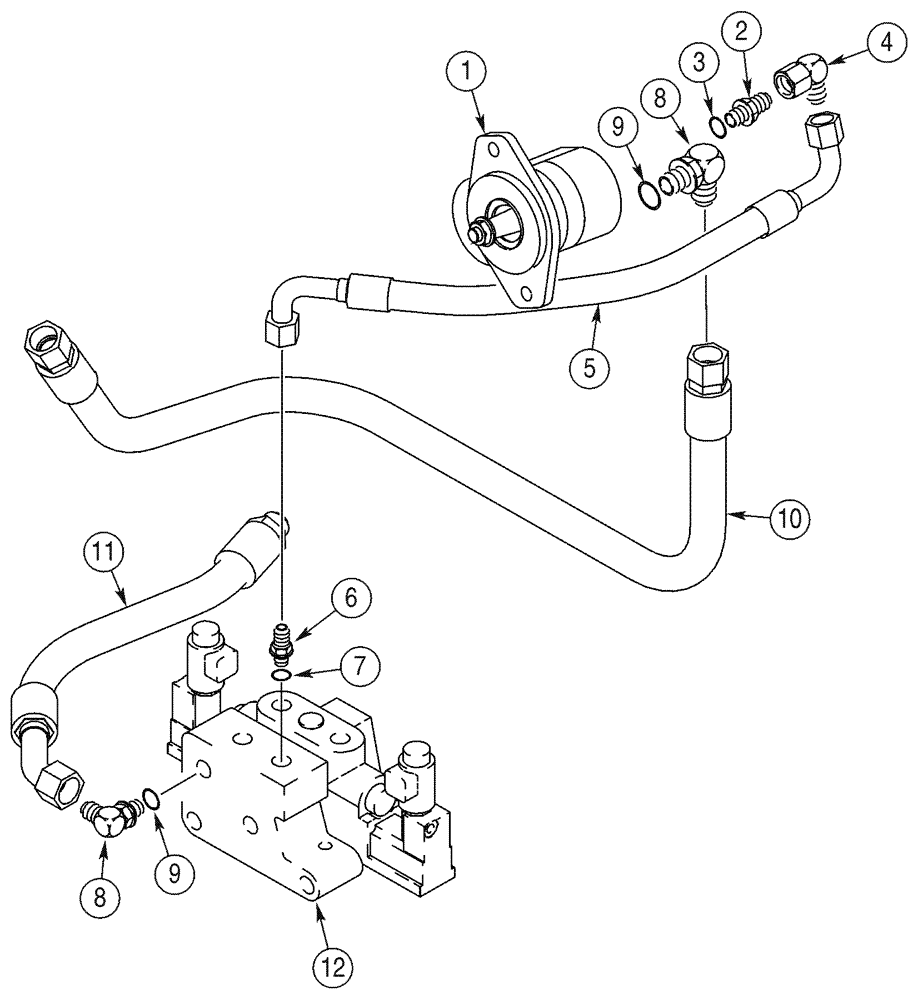

Запчасти Case IH 95XT (08-46) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR, SUPPLY & RETURN TO PUMP (08) - HYDRAULICS

1

323427A1

PUMP, HYDRAULIC

See Page(s) 8-179, REF1

1шт.

2

218-5030

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16 fl x Or, Includes 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

5

303841A1

HOSE ASSY.

635 mm (25 in), No Longer Available, Order 303841A2

1шт.

5

303841A2

HOSE ASSY.

660 mm (26 in)

1шт.

6

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 7

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 9

2шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

10

430678A1

HOSE ASSY.

1375 mm (54-1/8 in), Suction, High Flow

1шт.

11

419357A1

HOSE ASSY.

693 mm (27-1/4 in), Return, Serial Range: Valve-Tank

1шт.

12

227084A1

VALVE

See Page(s) 8-185 - 8-189

1шт.

13

238616A1

HARNESS

See Page(s) 4-45, Not Illustrated

1шт.
