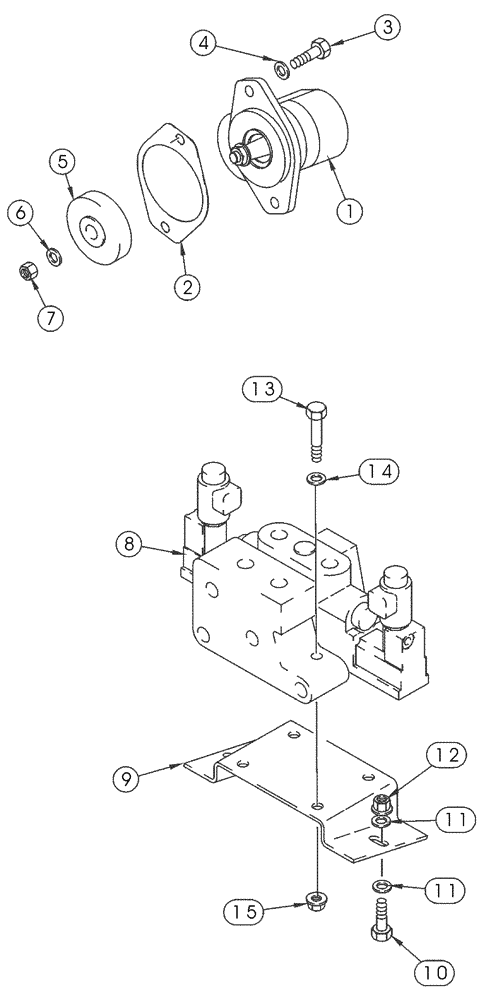

Запчасти Case IH 95XT (08-45) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR, GEAR PUMP & CONTROL VALVE MOUNTING (08) - HYDRAULICS

1

323427A1

PUMP, HYDRAULIC

Consists Of 361942A1

1шт.

361942A1

SEAL KIT

Consists Of (1) Oil Seal, (2) Ring Seal, (1) Wearplate, (1) Wearplate, (1) Preload Seal, (1) Load Seal

1шт.

2

J919601

GASKET

If Used

1шт.

3

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

5

J924187

PINION

1шт.

6

495-11059

WASHER,9/16"

19/32 x 1-5/32 x 3/32

1шт.

7

425-159

JAM NUT,Jam, 9/16"-18, G5

1шт.

8

227084A1

VALVE

See Page(s) 8-185 - 8-189

1шт.

9

232665A1

SUPPORT

1шт.

10

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

11

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

12

832-41412

NUT,M12 x 1.75, Cl 10

M12

2шт.

13

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

3шт.

15

832-41410

NUT,M10 x 1.5, Cl 10

3шт.

14

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.
