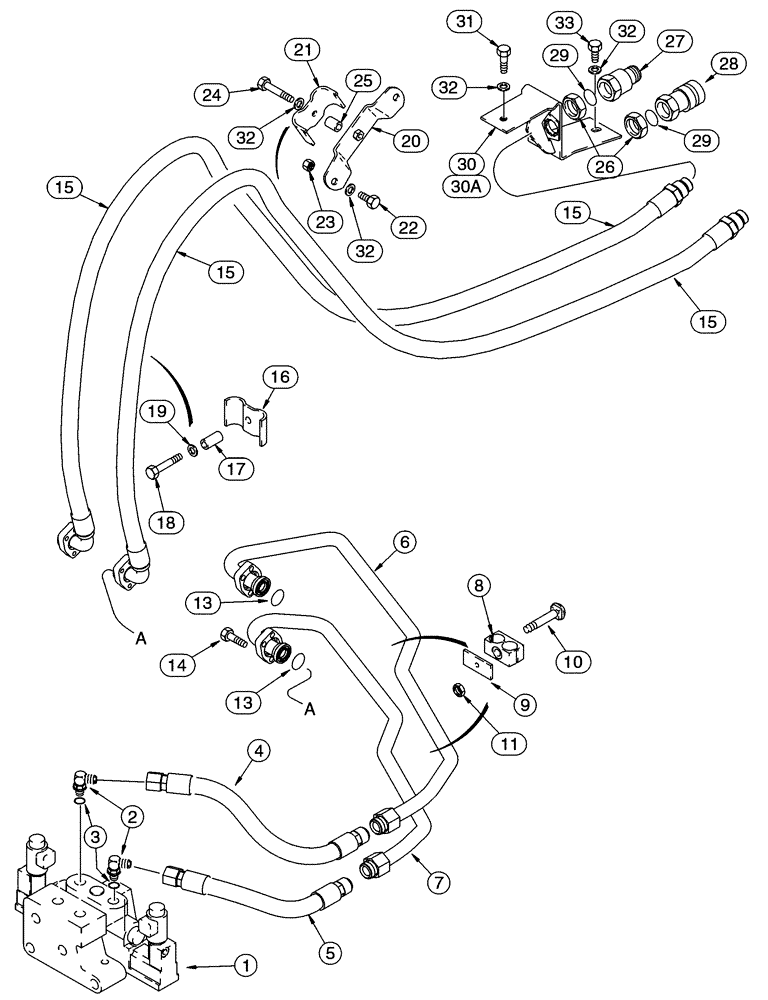

Запчасти Case IH 95XT (08-43) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR, VALVE TO COUPLINGS (08) - HYDRAULICS

1

227084A1

VALVE

See Page(s) 8-185 - 8-189

1шт.

2

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Includes 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

255513A1

TUBE,520 mm Length

520 mm (20-1/2 in)

1шт.

5

255512A1

TUBE,425 mm Length

425 mm (16-3/4 in)

1шт.

6

254842A2

TUBE

1шт.

7

254840A2

TUBE,25.4 mm OD

1шт.

8

225529A1

CLAMP,Dual, 25.4mm ID

2 piece

2шт.

9

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

10

811-8060

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 60mm, Cl 8.8

2шт.

11

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

13

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

14

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

8шт.

15

226541A1

HOSE,19.05mm ID x 3050mm L

3050 mm (120 in)

2шт.

16

276433A1

CLAMP

1шт.

17

276884A1

SPACER

1шт.

18

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

1шт.

20

253476A1

BAR

1шт.

21

256688A2

CLAMP BRACKET

Replaces 256688A1

1шт.

22

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

23

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

24

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

25

256690A1

SPACER

1шт.

26

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

2шт.

27

254293A1

QUICK MALE COUPLING

Male

1шт.

28

198474A1

COUPLING

Female

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

30

226181A3

HOLDER

Used With 226882A2, Ref. 13; 294187A1, Ref. 13A, See Page(s) 8-167

1шт.

30a

294185A1

HOLDER

Used With 294187A1, Ref. 13A, See Page(s) 8-167

1шт.

31

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

33

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

19

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

32

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.
