Запчасти Case IH 95XT (08-41) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR, CHARGE PRESSURE & PILOT RELIEF LINES (08) - HYDRAULICS

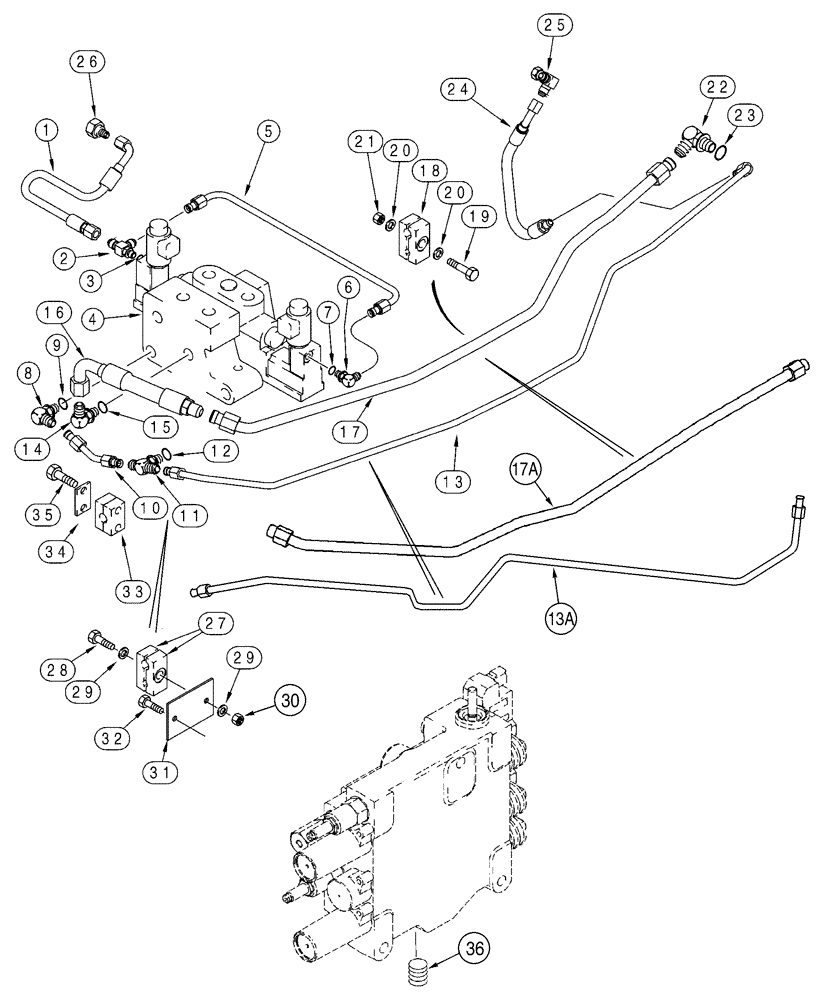

Схема запчастей Case IH 95XT - (08-41) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR, CHARGE PRESSURE & PILOT RELIEF LINES (08) - HYDRAULICS
31
32
2
15
17a
29
34
27
19
11
20
13
30
28
20
13a
14
35
33
16
29
18
1
9
25
3
4
21
36
23
22
24
10
26
17
5
8
12

Артикул

Название

Примечание

Количество

1

245407A1

HOSE

400 mm (15-3/4 in)

1шт.

2

255403A1

TEE

Includes 3

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

227084A1

VALVE

See Page(s) 8-185 - 8-189

1шт.

5

254835A3

TUBE,9.52 mm OD, 406, 71 mm Length

Replaces 254835A2

1шт.

6

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. 7

1шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Includes 9

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

236528A3

TUBE,9.52 mm OD

Replaces 236528A2

1шт.

11

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 adj Or x fl x fl, Includes 12

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

254847A2

TUBE,9.52 mm OD, 411, 106 mm Length

No Longer Available, Order 296632A3, Ref. 13A

1шт.

13a

296632A3

TUBE

1шт.

14

218-5130

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

Adj Or, Incl. Ref 15

1шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

16

278883A1

HOSE ASSY.

1шт.

17

278885A2

TUBE

No Longer Available, Order 296630A3, Ref. 17A

1шт.

17a

296630A3

TUBE

1шт.

18

254831A1

SHIN

2 piece

1шт.

19

614-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8, Full Thd

1шт.

21

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Inc. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

258657A1

HYDRAULIC HOSE

Charge Pressure, 370 mm (14-5/8 in)

1шт.

25

259899A1

CONNECTOR, ELEC

CONNECTOR

1шт.

26

218-724

REDUCER,37º, 1 5/16"-12, Fem x 9/16"-18 Male

1-5/16 FST x 9/16 fl

1шт.

27

254831A1

SHIN

2 piece

1шт.

28

614-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8, Full Thd

1шт.

30

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

31

258977A1

PLATE, SPACER

PLATE,SPACER

1шт.

32

614-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8, Full Thd

1шт.

33

254830A1

CLAMP BRACKET

2 piece

1шт.

34

279519A1

LARGE PLATE

PLATE, LARGE

1шт.

35

614-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8, Full Thd

2шт.

36

217-434

PLUG,Hex Soc, 3/8" - 18 NPTF

3/8 PT, Used in Control Valve to Separate Power Beyond and Return, Use Loctite No. 242

1шт.

B17577

LOCTITE

No. 242, 6 ml, Blue

1шт.

20

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

29

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 39
