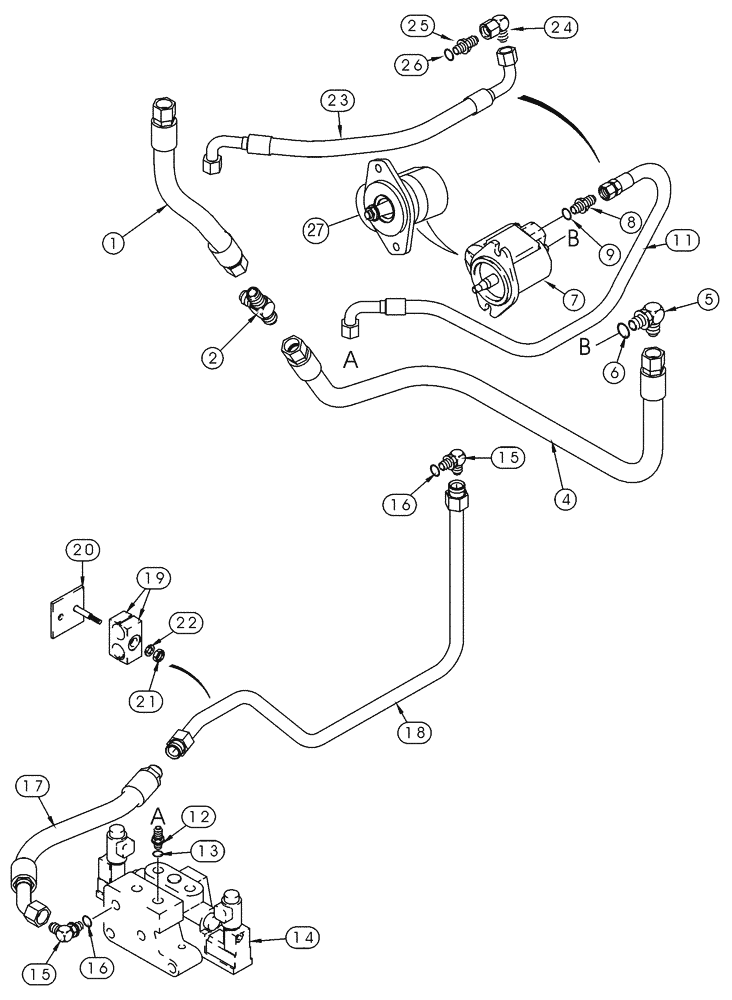

Запчасти Case IH 95XT (08-40) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR, SUPPLY & RETURN TO PUMP (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
254967A1
HOSE
625 mm (24-5/8 in), North American Models
1шт.
1
277451A1
HOSE
670 mm (26-3/8 in), European Models
1шт.
2
218-558
TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br
1шт.
4
278513A1
HOSE ASSY.
1195 mm (47 in)
1шт.
5
218-5110
ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Incl. 6
1шт.
7
254521A1
PUMP, HYDRAULIC
No Longer Available, Order 323427A1, Ref. 27
1шт.
7a
132967A1
SEAL KIT
Gear Pump, Not Illustrated
1шт.
8
218-5063
HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB
7/8 fl x 1-1/16 Or, -JAF0237963, Includes 9
1шт.
9
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
11
279877A1
HOSE ASSY.
1160 mm (45-3/4 in), -JAF0237963
1шт.
12
218-5077
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Incl. 13
1шт.
14
227084A1
VALVE
See Page(s) 8-185 - 8-189
1шт.
15
218-5110
ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Incl. 16
2шт.
17
258888A1
HYDRAULIC HOSE
584 mm (23 in)
1шт.
18
254833A3
TUBE,419, 397 mm Length
To Filter, Replaces 254833A2, See Page(s) 6-5, Ref. 14
1шт.
19
225529A1
CLAMP,Dual, 25.4mm ID
2 piece
1шт.
20
278886A1
RETAINER
1шт.
21
832-41308
NUT,M8 x 1.25, Cl 10
1шт.
23
303841A1
HOSE ASSY.
635 mm (25 in), JAF0237964-
1шт.
24
218-5231
ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw
JAF0237964-
1шт.
25
218-5030
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
1-1/16 fl x Or, JAF0237964-, Includes 26
1шт.
26
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
27
323427A1
PUMP, HYDRAULIC
See Page(s) 8-141, Ref. 1B
1шт.
22
895-15008
WASHER,9mm ID x 20mm OD x 1.6mm Thk
1шт.
Выбрано товаров: 27
