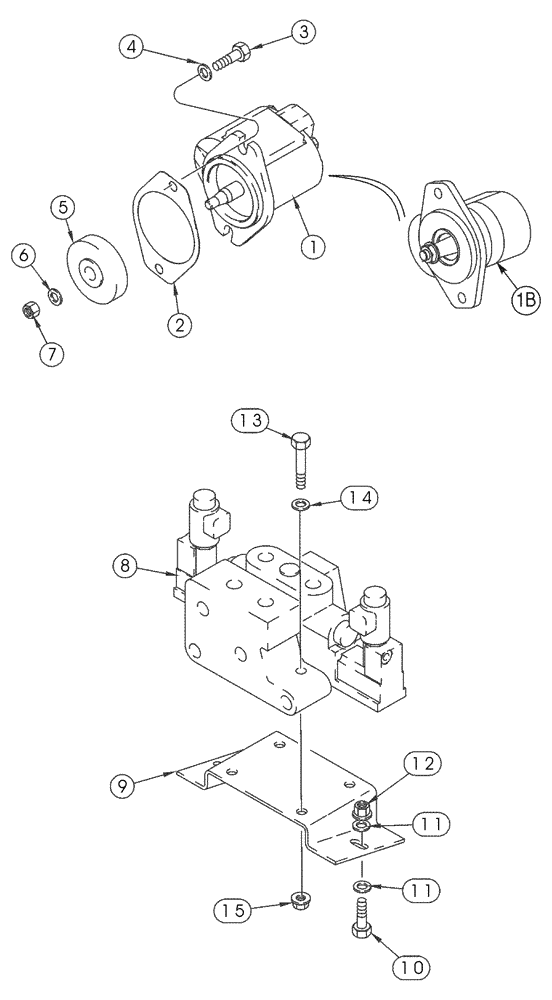

Запчасти Case IH 95XT (08-39) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR, GEAR PUMP & CONTROL VALVE MOUNTING (08) - HYDRAULICS

1

254521A1

PUMP, HYDRAULIC

Includes 1A, 6, 7, No Longer Available, Order 323427A1, REF 1B

1шт.

1a

132967A1

SEAL KIT

Seal, Gear Pump, Not Illustrated

1шт.

1b

323427A1

PUMP, HYDRAULIC

Consists Of 361942A1

1шт.

361942A1

SEAL KIT

Consists Of (1) Oil Seal, (2) Ring Seal, (1) Wearplate, (1) Wearplate, (1) Preload Seal, (1) Load Seal

1шт.

2

J919601

GASKET

If Used

1шт.

3

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

5

J924187

PINION

1шт.

6

495-11059

WASHER,9/16"

19/32 x 1-5/32 x 3/32

1шт.

7

425-159

JAM NUT,Jam, 9/16"-18, G5

1шт.

8

227084A1

VALVE

See Page(s) 8-185 - 8-189

1шт.

9

232665A1

SUPPORT

1шт.

10

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

11

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

12

832-41312

NUT,M12 x 1.75, Cl 10

2шт.

13

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

3шт.

15

832-41310

NUT,M10 x 1.5, Cl 10

3шт.

14

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.
