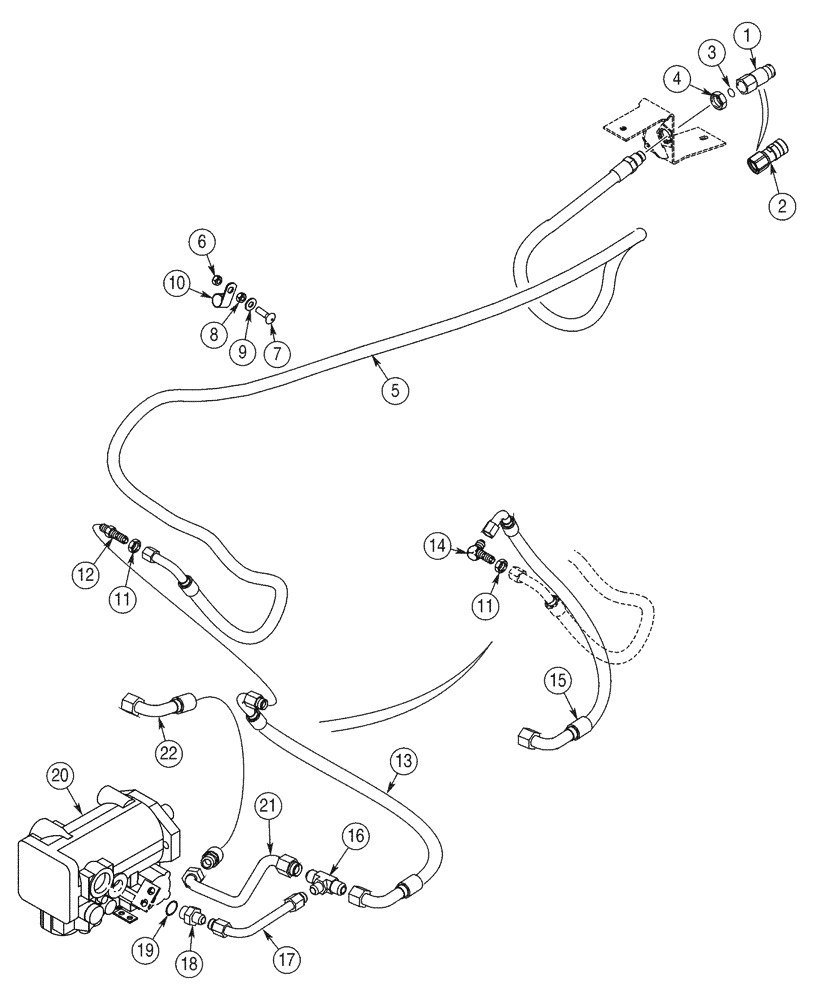

Запчасти Case IH 95XT (08-33) - HYDRAULICS, ATTACHMENT - HIGH FLOW, PISTON, DRAIN LINES FROM COUPLING (08) - HYDRAULICS

1

393397A1

COUPLING

Male, Component Parts Not Serviced Separately, If Used

1шт.

2

436434A1

COUPLING, QUICK, FEM

Female, Component Parts Not Serviced Separately, If Used

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

5

294187A1

HOSE

3250 mm (128 in), Loader Arm, Case Drain

1шт.

6

832-41408

NUT,M8 x 1.25, Cl 10

M8

1шт.

7

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

1шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

10

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

11

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

12

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

1шт.

13

433532A2

HOSE ASSY.

670 mm (26-3/8 in), Case Drain, If Used

1шт.

14

218-695

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

7/8 fl x bkhd fl, Used With 445836A1, If Used

1шт.

15

445836A1

HOSE ASSY.

1050mm (41-5/16 in), Case Drain, If Used

1шт.

16

218-1580

TEE,37º, 1 1/16"-12 x 7/8"-14, Br

1шт.

17

419022A1

TUBE

Return Case Drain

1шт.

18

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

7/8 fl x 1-1/16 Or, Includes 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

237637A3

PUMP, HYDRAULIC,46 CC

See Page(s) 8-129 - 8-137

1шт.

20

87298018

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

20

87298019

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

21

419025A1

TUBE

Return Case Drain

1шт.

22

418795A1

HOSE ASSY.

660 mm (26 in), Case Drain High Flow

1шт.

9

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.
