Запчасти Case IH 95XT (08-27) - HYDRAULICS, ATTACHMENT - HIGH FLOW, PISTON, FILTER TO COUPLINGS (08) - HYDRAULICS

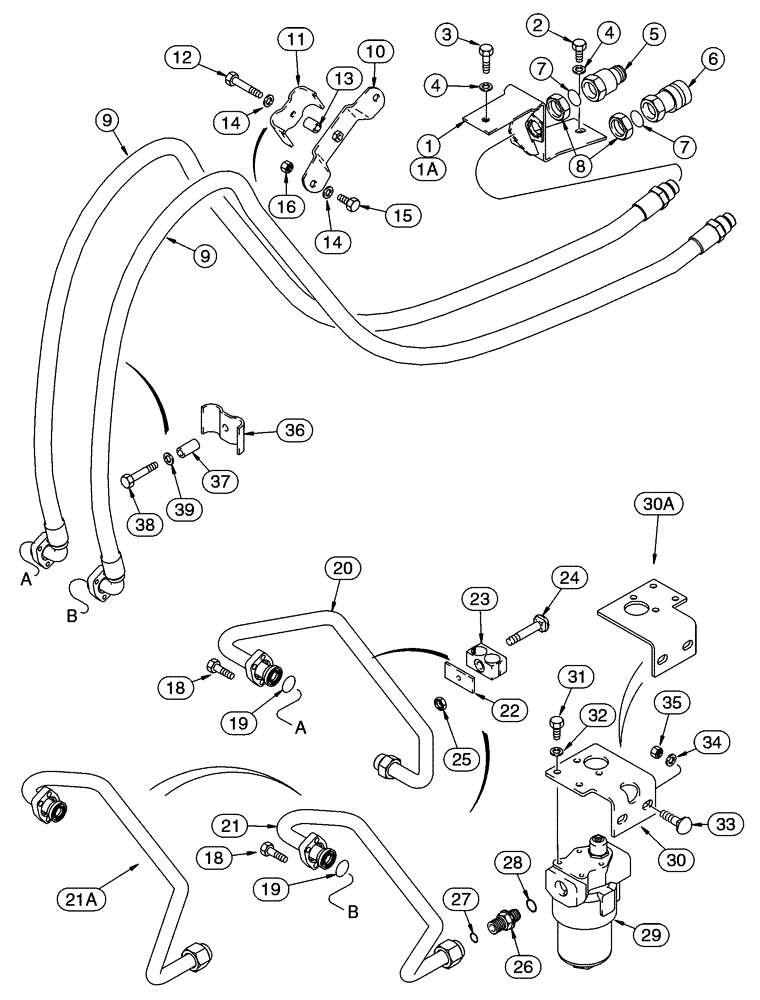

Схема запчастей Case IH 95XT - (08-27) - HYDRAULICS, ATTACHMENT - HIGH FLOW, PISTON, FILTER TO COUPLINGS (08) - HYDRAULICS
39
1
11
26
22
21a
1a
19
37
6
9
4
25
18
2
4
23
30
28
15
12
33
19
14
13
38
36
21
18
20
14
10
9
7
31
16
24
29
7
35
5
32
8
30a
3
34
27

Артикул

Название

Примечание

Количество

1

226181A3

HOLDER

Used With 226882A2, 294187A1, See Page(s) 8-107; Ref. 4, 4A

1шт.

1a

294185A1

HOLDER

Used With 294187A1, See Page(s) 8-107; Ref. 4A

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

5

254293A1

QUICK MALE COUPLING

Male

1шт.

6

198474A1

COUPLING

Female

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

8

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

2шт.

9

226541A1

HOSE,19.05mm ID x 3050mm L

3050 mm (120 in)

2шт.

10

253476A1

BAR

1шт.

11

256688A2

CLAMP BRACKET

Replaces 256688A1

1шт.

12

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

13

256690A1

SPACER

1шт.

15

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

16

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

18

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

8шт.

19

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

20

277829A2

TUBE,25.4 mm OD, 499, 444 mm Length

For Attaching Parts, See Page 8-99, Ref. 6

1шт.

21

259826A2

TUBE,25.4 mm OD, 508, 472 mm Length

-JAF0237963

1шт.

21a

303136A1

TUBE,25.4 mm OD, 598, 472 mm Length

JAF0237964-

1шт.

22

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

23

225529A1

CLAMP,Dual, 25.4mm ID

2 piece

2шт.

24

811-8060

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 60mm, Cl 8.8

2шт.

25

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

26

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Inc. 27, 28

1шт.

28

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

29

233442A1

FILTER ASSY

See Page(s) 8-139

1шт.

30

259060A2

SUPPORT

-JAF0237963

1шт.

30a

303134A1

SUPPORT

JAF0237964-

1шт.

31

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

33

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

12 x 35 mm

2шт.

34

895-15012

WASHER,M12 x 28 x 2.5

13,5 x 28 x 2,5 mm

2шт.

35

832-41312

NUT,M12 x 1.75, Cl 10

2шт.

36

276433A1

CLAMP

1шт.

37

276884A1

SPACER

1шт.

38

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

1шт.

32

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

39

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

27

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

Выбрано товаров: 41
