Запчасти Case IH 95XT (08-26) - HYDRAULICS, ATTACHMENT - HIGH FLOW, PISTON, SUPPLY & RETURN TO PUMP (08) - HYDRAULICS

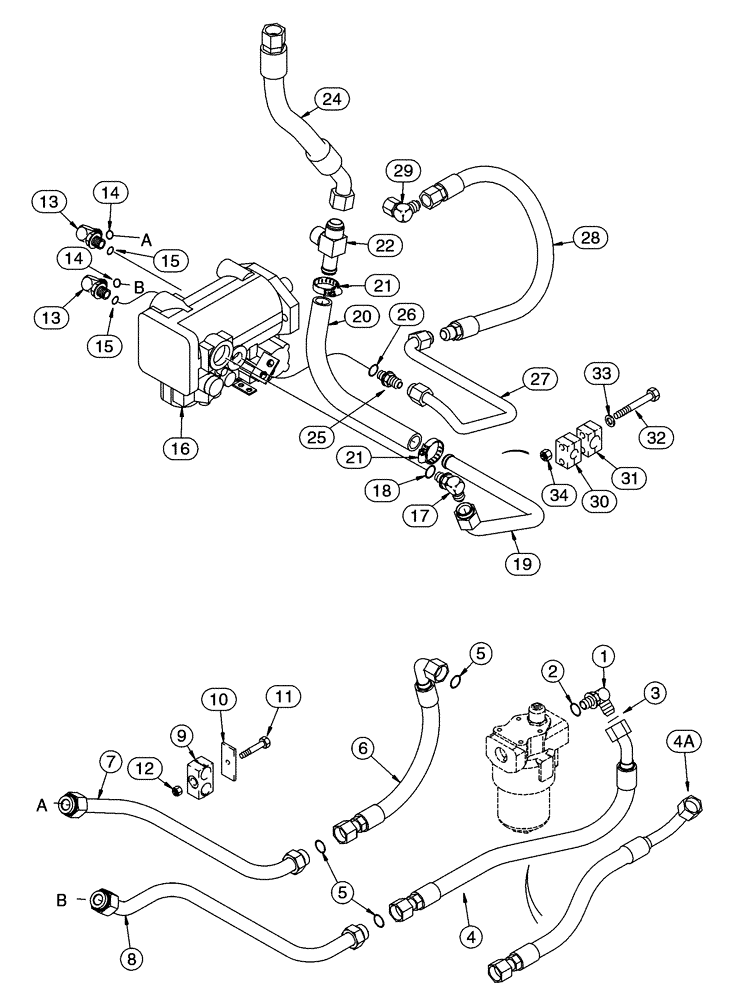

Схема запчастей Case IH 95XT - (08-26) - HYDRAULICS, ATTACHMENT - HIGH FLOW, PISTON, SUPPLY & RETURN TO PUMP (08) - HYDRAULICS
24
16
5
2
9
17
25
32
6
15
21
20
15
5
19
33
14
13
4
27
11
26
12
14
22
28
10
8
18
34
4a
1
29
13
3
30
21
7
31

Артикул

Название

Примечание

Количество

1

201-355

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1-3/16 fc x 1-5/16 Or, Inc. 2, 3

1шт.

2

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

246542A1

HOSE

700 mm (27-1/2 in), -JAF0237963

1шт.

4a

303123A1

HOSE ASSY.

510 mm (20-1/16 in), JAF0237964-

1шт.

5

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

6

275360A1

HOSE ASSY.

482 mm (19 in), For Attaching Parts, See Page 8-105, REF 20

1шт.

7

259822A1

TUBE

1шт.

8

259824A1

TUBE,360, 333 mm Length

1шт.

9

225529A1

CLAMP,Dual, 25.4mm ID

2 piece

1шт.

10

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

1шт.

11

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

1шт.

12

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

13

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1-7/16 fc x 1-5/16 Or, Includes 14, 15

2шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

16

237637A3

PUMP, HYDRAULIC,46 CC

See Page(s) 8-129 - 8-137

1шт.

16

87298018

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

16

87298019

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

17

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

257340A3

TUBE

1шт.

20

257812A1

HYDRAULIC HOSE

377 mm (14-7/8 in)

1шт.

21

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

22

257480A1

TEE,1-5/16" - 12 JIC x 1" - 11-1/2 NPT x 1" Hose Barb

1шт.

24

257949A1

HYDRAULIC HOSE

610 mm (24 in)

1шт.

25

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 26

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

254187A3

TUBE,310, 75 mm Length

Replaces 254187A2

1шт.

28

254188A1

HOSE

725 mm (28-1/2 in)

1шт.

29

218-5382

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

1-1/16 fl x 1-5/16 sw

1шт.

30

R48091

CLAMP

1шт.

31

253161A1

CLAMP

2 piece

1шт.

32

814-6090

BOLT,Hex, M6 x 1 x 90mm, Cl 8.8

2шт.

33

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

34

832-41306

NUT,M6 x 1, Cl 10

2шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Выбрано товаров: 36
