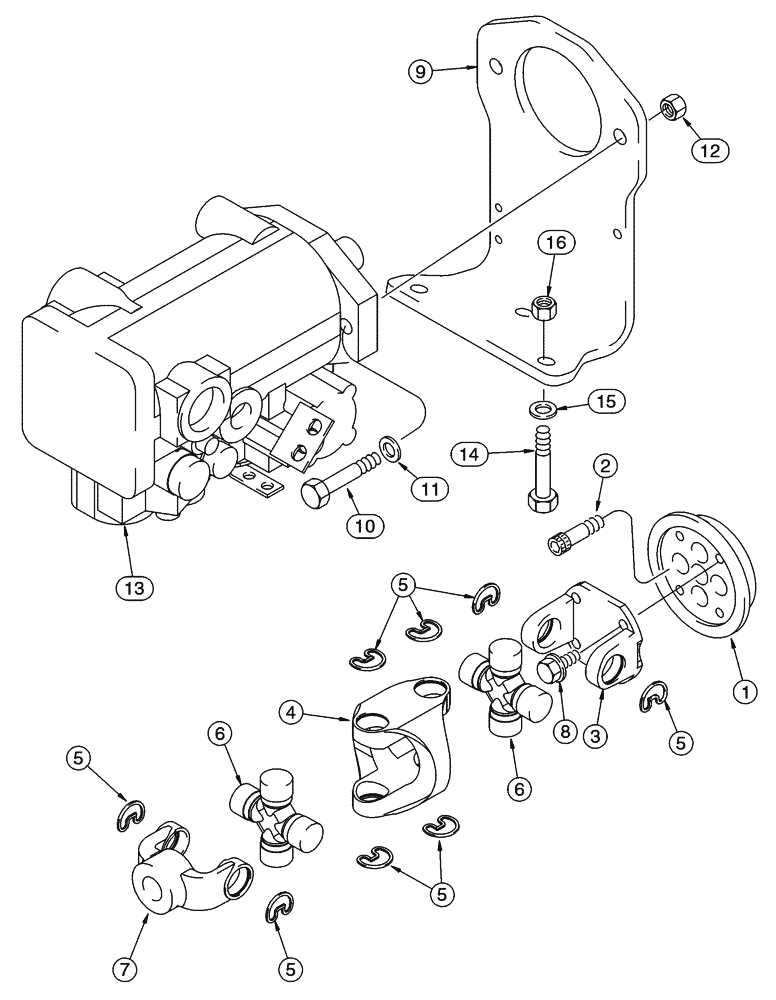

Запчасти Case IH 95XT (08-25) - HYDRAULICS, ATTACHMENT - HIGH FLOW, PISTON, PISTON PUMP & UNIVERSAL JOINT (08) - HYDRAULICS

1

251921A1

RING, COUPLING

To Crankshaft

1шт.

2

561-800

HEX SOC SCREW,M12 x 1.25 x 35mm, Cl 12.9

M12 x 35

4шт.

251893A2

UNIVERSAL JOINT

Consists Of 3 - 7

1шт.

3

256197A1

FLANGE

1шт.

4

282838A1

YOKE

1шт.

5

11256

SNAP RING

8шт.

6

256198A1

U-JOINT SPIDER

2шт.

7

295551A1

YOKE

UNIVERSAL JOINT YOKE

1шт.

8

380-2616

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8, Full Thd

3/8 x 1

4шт.

9

251922A2

SUPPORT

1шт.

10

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

11

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

12

832-41312

NUT,M12 x 1.75, Cl 10

2шт.

13

237637A3

PUMP, HYDRAULIC,46 CC

See Page(s) 8-129 - 8-137

1шт.

13

87298018

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

13

87298019

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

14

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

3шт.

15

895-15012

WASHER,M12 x 28 x 2.5

13,5 x 28 x 2,5 mm

6шт.

16

832-41312

NUT,M12 x 1.75, Cl 10

3шт.
