Запчасти Case IH 95XT (08-24) - HYDRAULIC COUPLERS (08) - HYDRAULICS

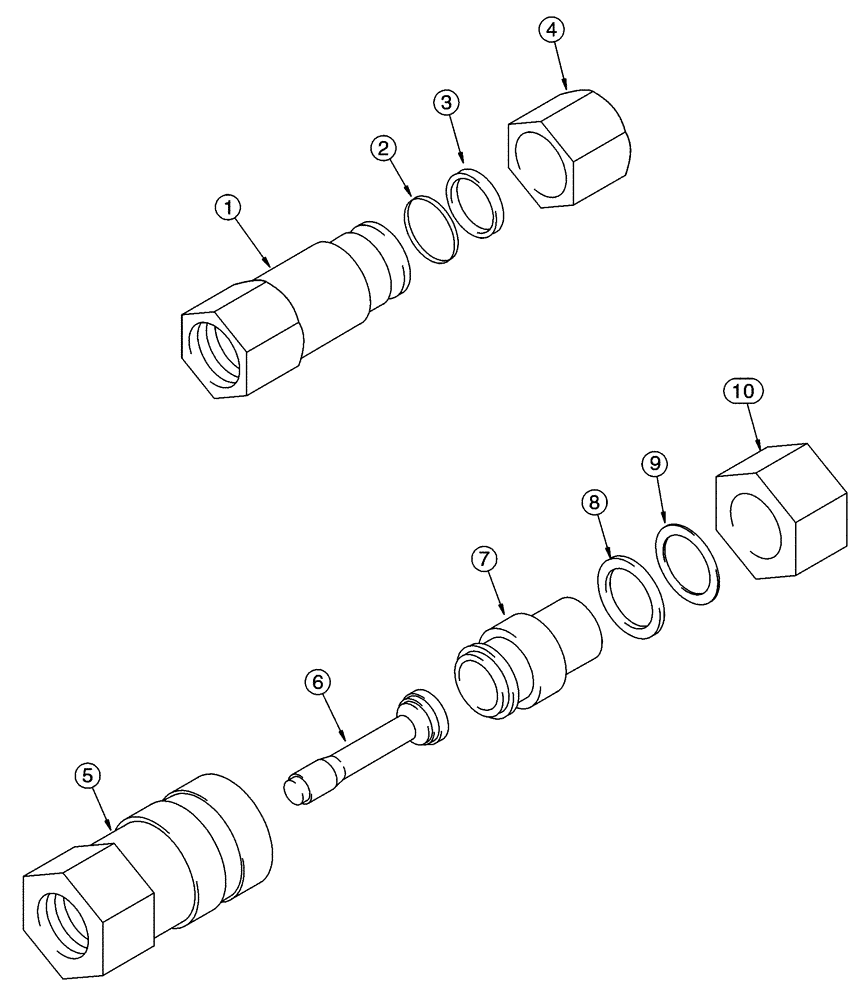

Схема запчастей Case IH 95XT - (08-24) - HYDRAULIC COUPLERS (08) - HYDRAULICS
4
5
9
3
6
1
10
8
7
2

Артикул

Название

Примечание

Количество

1

122180A1

COUPLING, BREAK AWAY

Male, Includes 2, 3

1шт.

185786A1

SET OF PARTS

Consists Of 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Seal

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

4

193259A1

PLUG

Order Separately

1шт.

1

238243A1

COUPLING, BREAK AWAY

Male, Includes 2, 3

1шт.

185786A1

SET OF PARTS

Consists Of 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Seal

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

4

193259A1

PLUG

Order Separately

1шт.

5

143431A1

COUPLING, QUICK, FEM

Female, Includes 6 - 9

1шт.

185785A1

COUPLING

Consists Of 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

Valve, Check

1шт.

7

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

8

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

9

NSS

NOT SOLD SEPARAT

Seal

1шт.

10

193260A1

PLUG

Order Separately

1шт.

Выбрано товаров: 17
