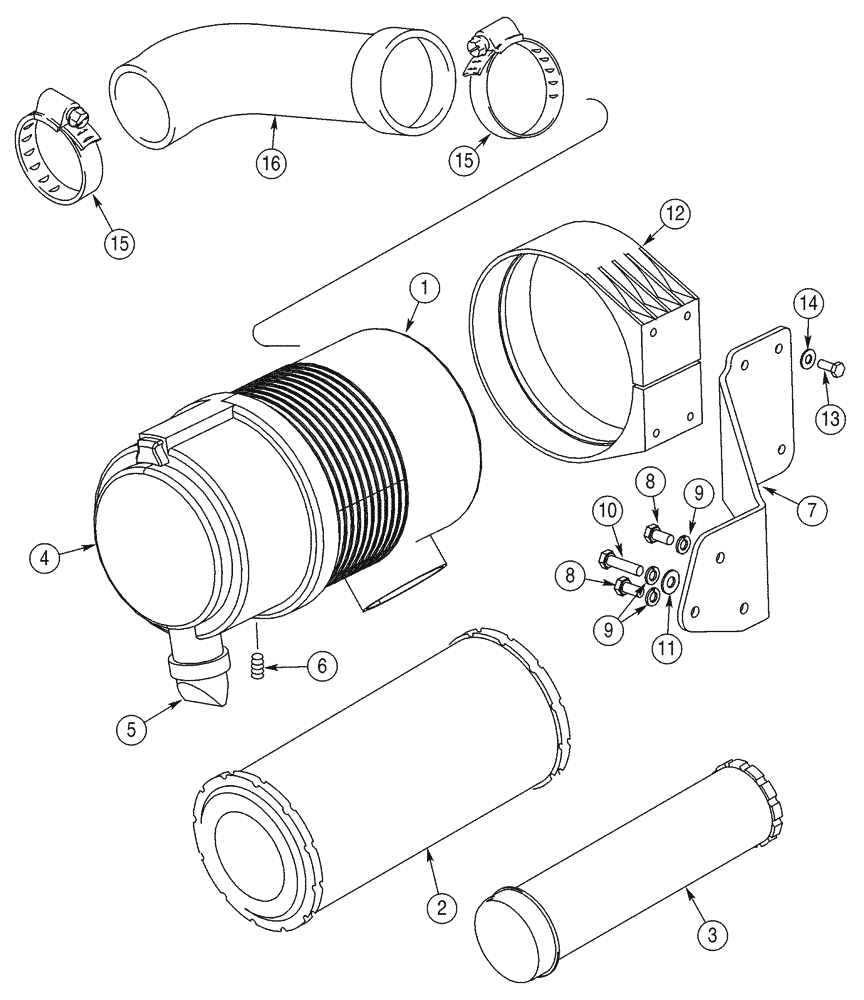

Запчасти Case IH 95XT (02-07) - AIR CLEANER ENGINE, IF USED (02) - ENGINE

382072A1

AIR FILTER

Consists Of 1 - 6

1шт.

1

445307A1

CASE

1шт.

2

222421A1

AIR FILTER

Primary

1шт.

3

222422A1

AIR FILTER

ELEMENT, FILTER Secondary

1шт.

4

395792A1

COVER ASSY

1шт.

5

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

1шт.

6

236690A1

PLUG

1шт.

7

283909A2

BRACKET

Replaces 283909A1

1шт.

8

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

9

892-11010

LOCK WASHER,M10

3шт.

10

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

12

383964A1

CLAMP

1шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

15

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

16

283908A1

LARGE HOSE

HOSE,LARGE

1шт.

17

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in dia

1шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

14

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
