Запчасти Case IH 95XT (08-14) - CONTROL VALVE, MOUNTING (NORTH AMERICA -JAF0311356 / EUROPE -JAF0274359) (08) - HYDRAULICS

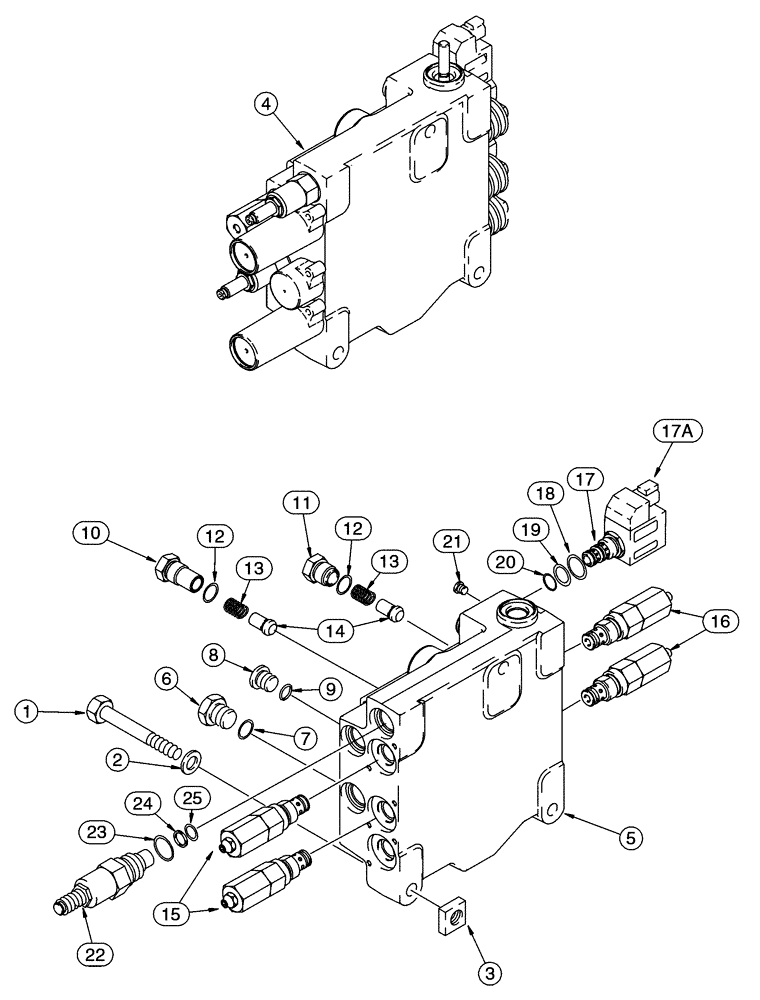

Схема запчастей Case IH 95XT - (08-14) - CONTROL VALVE, MOUNTING (NORTH AMERICA -JAF0311356 / EUROPE -JAF0274359) (08) - HYDRAULICS
20
12
12
25
16
21
14
10
19
15
17
23
1
8
13
18
6
3
2
5
11
13
9
7
4
24
22
17a

Артикул

Название

Примечание

Количество

1

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

3шт.

3

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

M10

3шт.

4

228188A5

VALVE

3 spool, Replaces 228188A2, 228188A3, 228188A4, Consists Of 4 - 25, Also Includes 8-69 - 8-75

1шт.

5

NSS

NOT SOLD SEPARAT

Body

1шт.

6

86625138

PLUG,7/18" - 14

Includes Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

9625178

PLUG,9/16" - 18 ORB

Incl. 9

1шт.

293788A1

PLUG

Consists Of 10, 12

1шт.

10

NSS

NOT SOLD SEPARAT

Plug, Replaces 227212A1

1шт.

293787A1

PLUG,ORB

Consists Of 11, 12

3шт.

11

NSS

NOT SOLD SEPARAT

Plug, Replaces G109644

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

4шт.

14

283417A1

VALVE POPPET,7.14mm ID x 11.68mm OD x 25.4mm L

4шт.

15

234828A1

VALVE

3100 psi, Circuit Relief, See Page(s) 8-85

2шт.

16

186709A1

VALVE

3800 psi, Circuit Relief, See Page(s) 8-85

2шт.

349295A1

SOLENOID VALVE

Consists Of 17 - 20A, Replaces 184505A1

1шт.

17

NSS

NOT SOLD SEPARAT

Valve, Solenoid

1шт.

17a

NSS

NOT SOLD SEPARAT

Coil

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

20

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

20a

NSS

NOT SOLD SEPARAT

Screen, Not Illustrated

1шт.

21

NSS

NOT SOLD SEPARAT

Plug, Expansion

1шт.

129842A2

VALVE, PRESSURE RELI

EF Main Relief, Consists Of 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

Body

1шт.

G110098

KIT

Consists Of 23 - 25

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

G107870

BACK-UP RING,Square, 1.32mm Thk x 12.73mm ID

1шт.

25

238-8014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 8, 90 Duro

1шт.

249533A1

SEAL KIT

Consists Of Ref 7, 12 (8-59); 18 - 20 (8-61); Ref 1, 7, 9 (8-69);18, 21 (8-71); Ref 37, 38, 39 (8-75); Ref 2 - 4, 8 - 10 (8-85)

1шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 33
