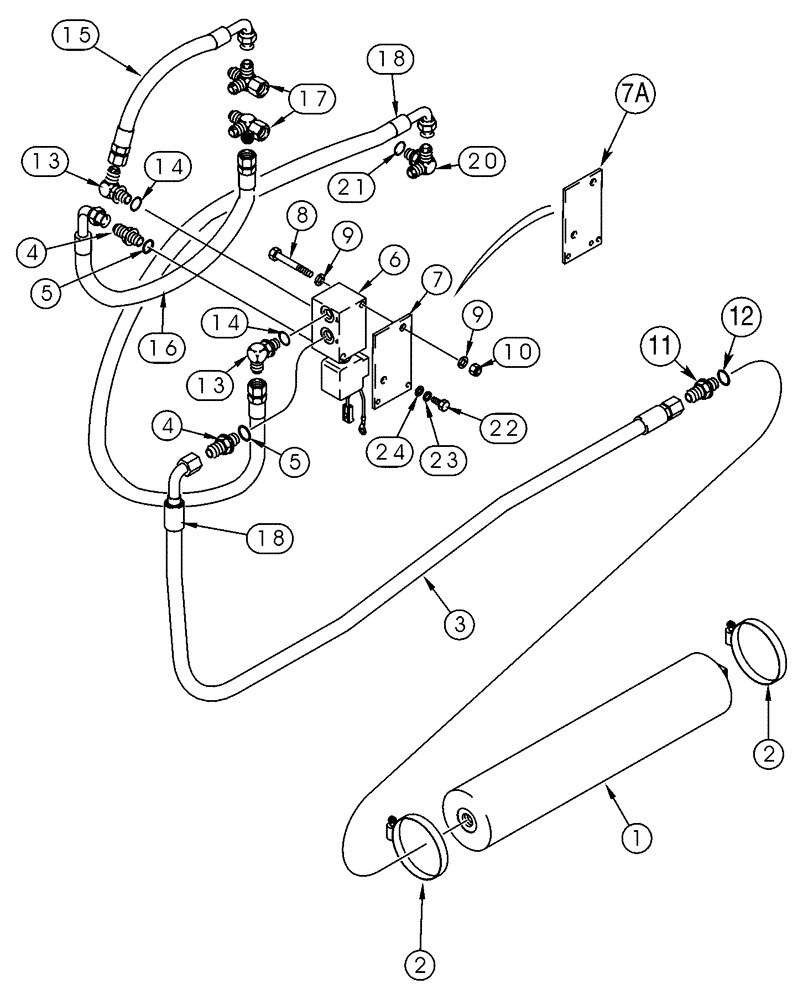

Запчасти Case IH 95XT (08-07) - HYDRAULICS, RIDE CONTROL (08) - HYDRAULICS

1

277049A1

ACCUMULATOR

1шт.

2

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

3

308236A1

HOSE ASSY.

1205 mm (47-1/2 in)

1шт.

4

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

3/4 fl x 9/16 Or, Includes 5

2шт.

6

308023A1

VALVE

Includes 6A, 6B

1шт.

6a

344905A1

SEAL KIT

Seal, Not Illustrated

1шт.

6b

344906A1

KIT

Not Illustrated

1шт.

7

308173A1

SUPPORT

Order 308173A2, REF 7A

1шт.

7a

308173A2

SUPPORT

1шт.

8

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

2шт.

10

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

3/4 fl x 9/16 Or, Includes 14

2шт.

15

308234A1

HOSE ASSY.

230 mm (9-1/6 in)

1шт.

16

308233A1

HOSE ASSY.

510 mm (20-1/16 in)

1шт.

17

308155A1

FITTING

2шт.

18

308235A1

HOSE ASSY.

1100 mm (43-5/16 in)

1шт.

20

282776A1

FITTING

Includes 21, Attaches to Manifold, See Page(s) 6-17

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

23

892-11006

LOCK WASHER,M6

2шт.

24

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
