Запчасти Case IH 95XT (08-05) - HYDRAULICS, AUXILIARY SYSTEM (NORTH AMERICA -JAF0311356 / EUROPE -JAF0274359) (08) - HYDRAULICS

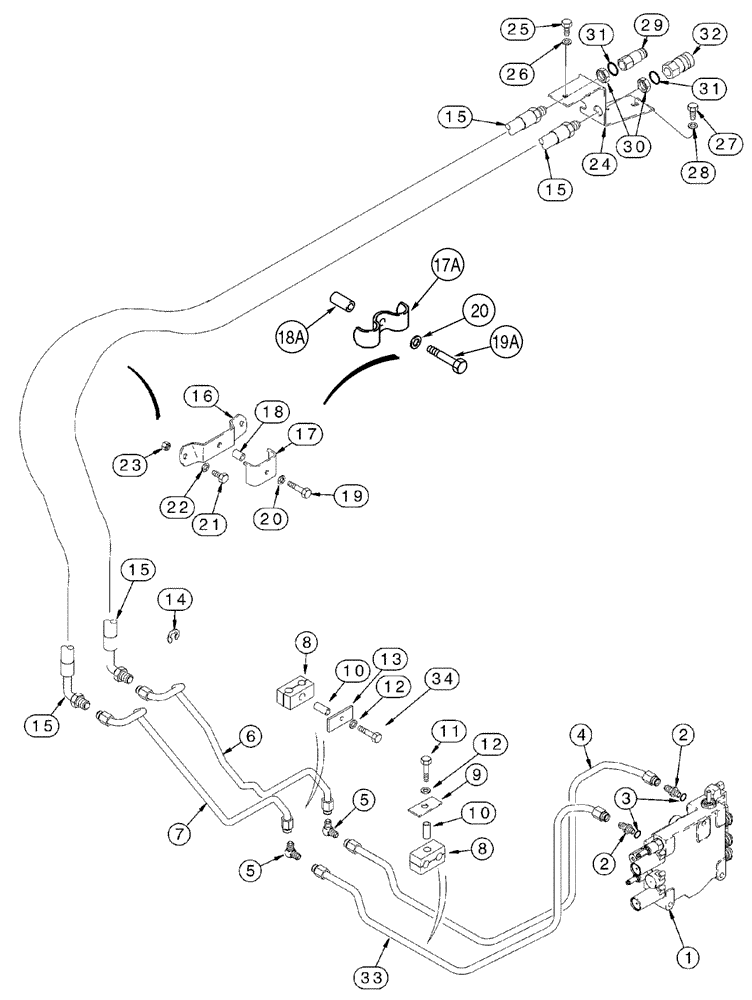

Схема запчастей Case IH 95XT - (08-05) - HYDRAULICS, AUXILIARY SYSTEM (NORTH AMERICA -JAF0311356 / EUROPE -JAF0274359) (08) - HYDRAULICS
14
1
13
20
4
2
21
18a
22
30
8
20
31
5
15
19
29
15
24
27
17
23
10
3
6
15
19a
34
17a
7
31
5
18
16
12
15
9
8
12
25
2
10
28
11
33
26
32

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

3 spool, Valve, Control, See Page(s) 8-59, 8-61, 8-69 - 8-75

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

253362A3

TUBE,608, 461 mm Length

Control Valve A3 Port to Elbow

1шт.

5

218-475

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male JIC

7/8 fl x fl

2шт.

6

253384A3

TUBE,695, 648 mm Length

1шт.

7

253382A3

TUBE,674, 646 mm Length

1шт.

8

257857A1

CLAMP

2 piece

2шт.

9

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

1шт.

10

259905A1

SPACER

2шт.

11

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

13

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

1шт.

14

103-3398

SNAP RING,#X98, .822" Dia, E-Type

4шт.

15

139390A3

HOSE

3200 mm (126 in)

2шт.

16

253476A1

BAR

1шт.

17

256689A1

CLAMP BRACKET

If Used

1шт.

17a

256688A2

CLAMP BRACKET

If Used

1шт.

18

256690A1

SPACER

If Used

1шт.

18a

P24576

SPACER,3/8" Pipe x 11/16"

If Used

1шт.

19

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

If used

1шт.

19a

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

If used

1шт.

21

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

23

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

24

197624A2

BRACKET

1шт.

25

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

27

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

29

122180A1

COUPLING, BREAK AWAY

See Page(s) 8-95

1шт.

30

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

32

143431A1

COUPLING, QUICK, FEM

See Page(s) 8-95

1шт.

33

253364A3

TUBE,608, 399 mm Length

Control Valve B3 Port to Elbow

1шт.

34

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

If Equipped

2шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
