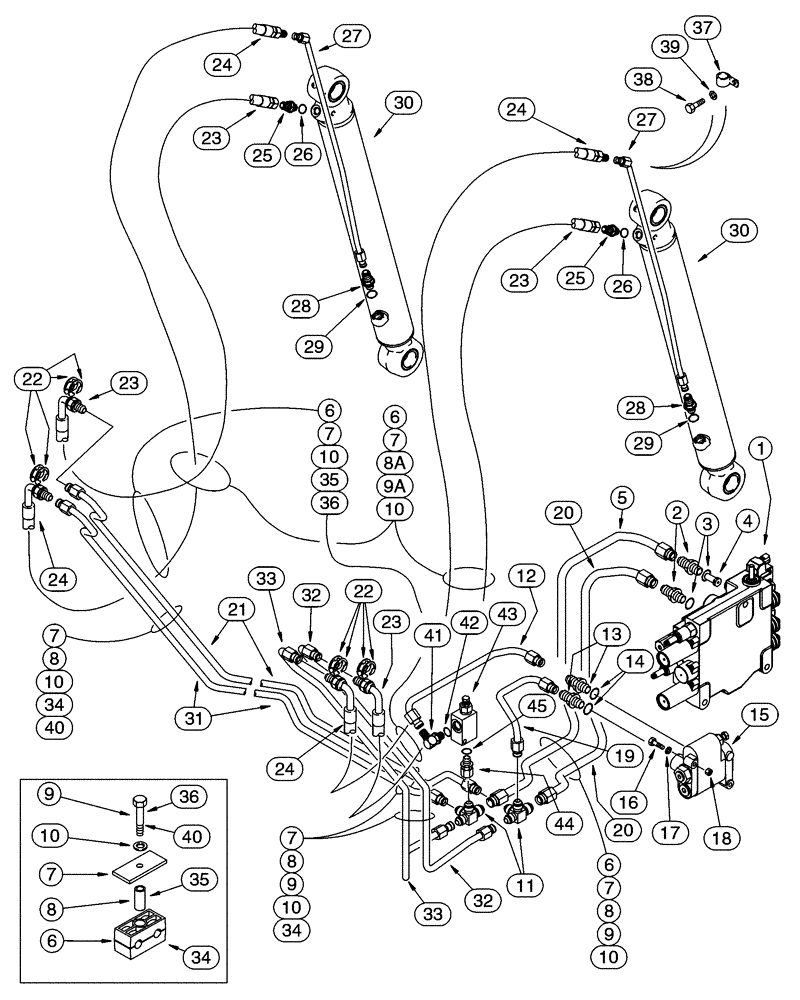

Запчасти Case IH 95XT (08-03) - HYDRAULICS, LOADER BUCKET (NORTH AMERICA -JAF0311356 / EUROPE -JAF0274359) (08) - HYDRAULICS

1

REF

INSTRUCTION

3 spool, Valve, Control, See Page(s) 8-59, 8-61, 8-69 - 8-75

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

257850A1

PORT

1шт.

5

253354A2

TUBE

Control Valve A2, Serial Range: Port-Tee

1шт.

6

257857A1

CLAMP

2 piece

5шт.

7

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

8шт.

8

259905A1

SPACER

4шт.

8a

293891A1

SPACER

2шт.

9

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

3шт.

9a

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

11

232857A1

TEE

2шт.

12

294410A2

HYD TUBE,322, 70 mm Length

Bucket Cylinder Rod Port to Relief Valve

1шт.

13

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 14

2шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

280126A2

VALVE

See Page(s) 8-87

1шт.

16

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

18

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

2шт.

19

254566A4

HYD TUBE

Bucket Cylinder Base, Serial Range: Port-Tee

1шт.

20

253356A3

TUBE

Control Valve B2 Port to Tee, Replaces 253356A2

1шт.

21

253374A3

TUBE,698, 695 mm Length

Left Hand

1шт.

22

103-3398

SNAP RING,#X98, .822" Dia, E-Type

8шт.

23

252963A2

HOSE,9.53mm ID x 3415mm L

3415 mm (134-1/2 in)

2шт.

24

252964A2

HOSE,9.53mm ID x 3400mm L

3400 mm (133-7/8 in)

2шт.

25

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 26

2шт.

27

254351A3

TUBE,593 mm Length

2шт.

28

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 29

2шт.

30

258426A3

CYLINDER ASSY.,Double Acting, 34.9mm Rod, 525mm Stroke

70 ID x 525 mm strk, Loader Bucket, See Page(s) 08-23

2шт.

30

258426A3R

95 XT BSN JAF0311356

REMAN-HYD CYLINDER

2шт.

30

258426A3C

Return Number

CORE-HYD CYLINDER

2шт.

31

253376A3

TUBE,710, 634 mm Length

Left Hand

1шт.

32

253366A3

TUBE,695, 516 mm Length

Right Hand

1шт.

33

253368A3

TUBE,710, 514 mm Length

Right Hand

1шт.

34

257919A1

CLAMP BRACKET

2 piece

3шт.

35

293892A1

SPACER

2шт.

36

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

37

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

2шт.

38

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

40

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

41

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes 42

1шт.

42

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

43

294650A1

VALVE

1шт.

44

1327736C1

ELBOW

3/4 fl x 3/4 Or, Includes 45

1шт.

45

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

If Equipped

8шт.

39

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
