Запчасти Case IH 95XT (08-02) - HYDRAULICS, LOADER LIFT (NORTH AMERICA JAF0311357- / EUROPE JAF0274360-) (08) - HYDRAULICS

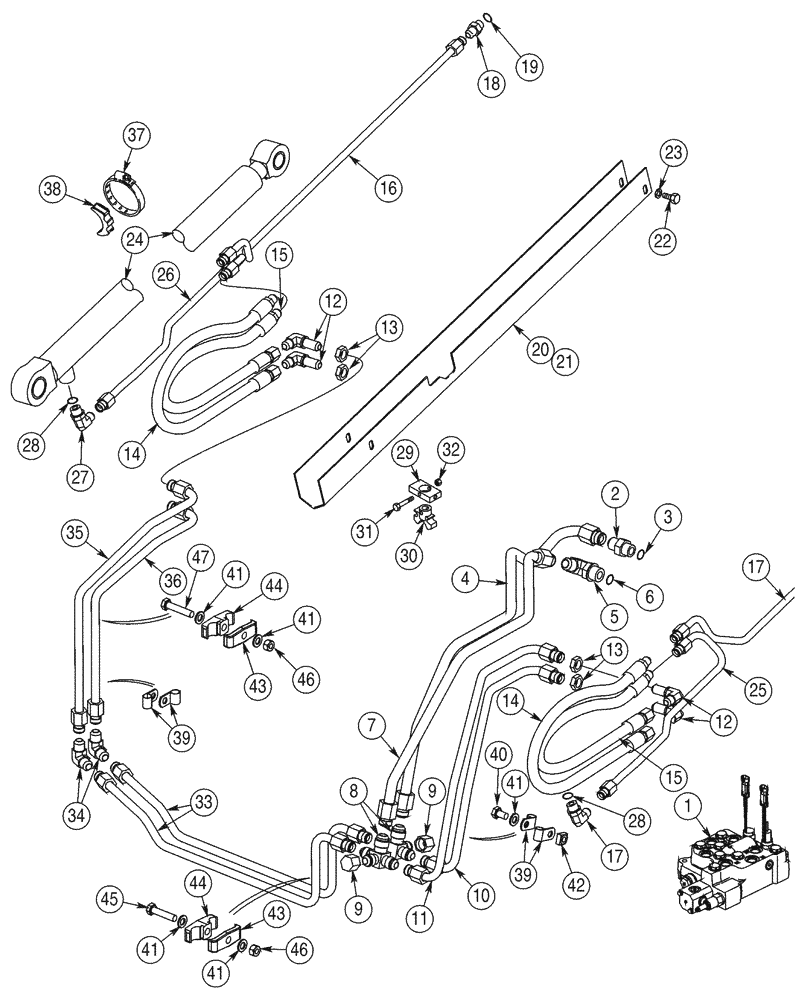

Схема запчастей Case IH 95XT - (08-02) - HYDRAULICS, LOADER LIFT (NORTH AMERICA JAF0311357- / EUROPE JAF0274360-) (08) - HYDRAULICS
38
6
44
41
32
17
17
43
44
26
14
5
39
12
21
31
41
12
28
13
3
33
9
42
23
1
25
2
7
46
45
15
10
24
46
34
19
29
39
20
40
30
15
14
22
4
36
9
35
8
13
11
41
37
18
47
41
28
16
43
41
27

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Valve, Control, See Page(s) 8-65, 8-67, 8-77 - 8-83

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

427002A1

TUBE

Lift, Lower

1шт.

5

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Inc. 6

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

426978A1

TUBE

Lift, Raise

1шт.

8

280107A1

TEE

2шт.

9

218-755

CAP,37 Degree, 3/4"-16

2шт.

10

426998A1

TUBE

3/4, Right Hand, Lift, Lower

1шт.

11

427000A1

TUBE

Right Hand, Lift, Raise

1шт.

12

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

4шт.

13

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

4шт.

14

252962A2

HOSE

840 mm (33 in), Lift Cylinder, Rod End

2шт.

15

252961A2

HOSE

775 mm (30-1/2 in), Lift Cylinder, Closed End

2шт.

16

253311A4

TUBE,843, 83 mm Length

Left Hand

1шт.

17

253307A4

TUBE,843, 83 mm Length

Right Hand

1шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 19

2шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

253313A1

PROTECTOR

Left Hand

1шт.

21

253312A1

PROTECTOR

Right Hand

1шт.

22

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

8шт.

23

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

8шт.

24

139091A3

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1245mm Stroke

64 ID x 1245 mm strk, 45 mm dia rod, Loader Lift, See Page(s) 8-91

2шт.

24

139091A3R

95XT

REMAN-HYD CYLINDER

2шт.

24

139091A3C

Return Number

CORE-HYD CYLINDER

2шт.

24

300873A2

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 1245mm Stroke

64 ID x 1245 mm strk, 50 mm dia rod, Loader Lift, Service Option - Replacement For 139091A3, See Figure 08 -22A

2шт.

24

300873A2R

95XT CASE SKID STEER LOADER, NORTH AMERICA JAF0311357, Loader Lift

REMAN-HYD CYLINDER

2шт.

24

300873A2C

Return Number

CORE-HYD CYLINDER

2шт.

25

253305A4

TUBE,443, 94 mm Length

Right Hand

1шт.

26

253309A4

TUBE,443, 62 mm Length

Left Hand

1шт.

27

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes 28

2шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

29

197509A1

PROTECTOR

2шт.

30

197508A1

HOLDER

2шт.

31

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

32

832-41408

NUT,M8 x 1.25, Cl 10

M8

2шт.

33

419000A1

TUBE

Left Hand, Lift

2шт.

34

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

35

426996A1

TUBE

Left Hand, Lift, Raise

1шт.

36

426994A1

TUBE

Left Hand, Lift, Lower

1шт.

37

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in dia

2шт.

38

255245A1

BLOCK

2шт.

39

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

4шт.

40

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

42

309086A1

NUT

1шт.

43

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

44

D120679

CLAMP,Tube, 1/2"

2шт.

45

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

46

832-41410

NUT,M10 x 1.5, Cl 10

2шт.

47

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

41

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

Выбрано товаров: 52
