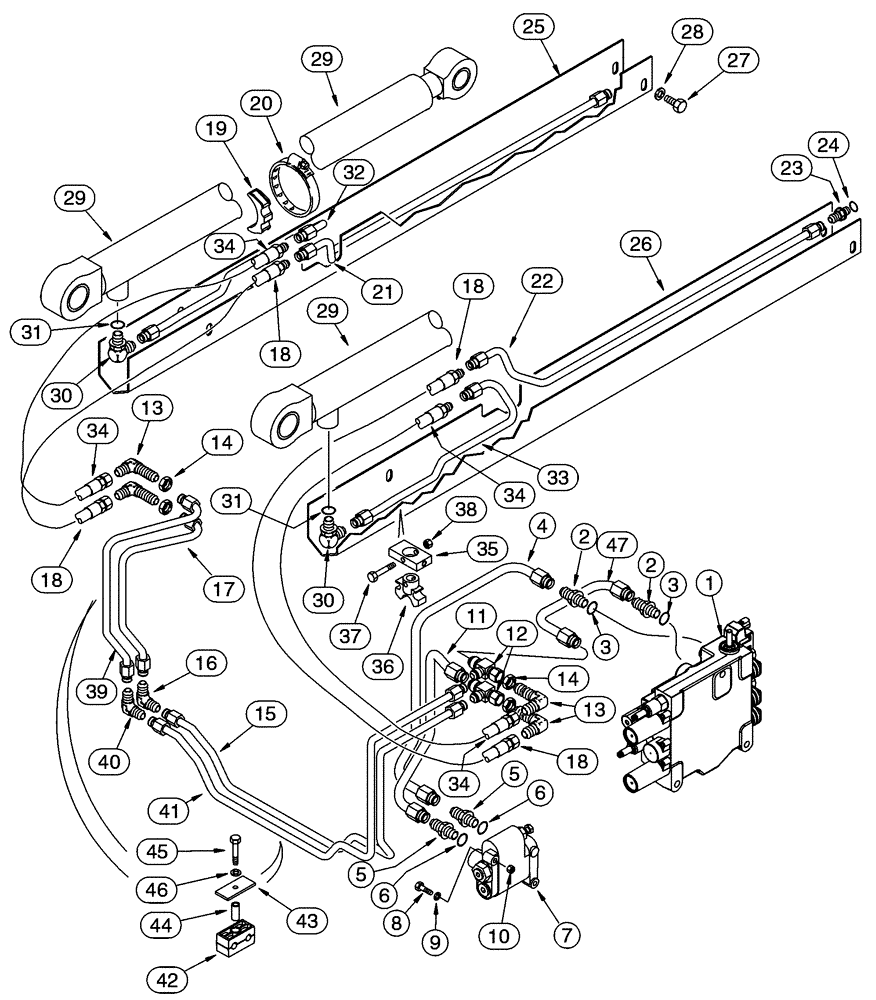

Запчасти Case IH 95XT (08-01) - HYDRAULICS, LOADER LIFT (NORTH AMERICA -JAF0311356 / EUROPE -JAF0274359) (08) - HYDRAULICS

1

REF

INSTRUCTION

3 spool, Valve, Control, See Page(s) 8-59, 8-61, 8-69 - 8-75

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

254570A3

TUBE,322, 250 mm Length

Self Level Valve IN Port to Control Valve Port A

1шт.

5

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. 6

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

280126A2

VALVE

See Page(s) 8-87

1шт.

8

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

10

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

2шт.

11

254572A4

TUBE,289, 95 mm Length

Self Level Valve OUT Port to Tee

1шт.

12

252970A1

TEE

2шт.

13

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

4шт.

14

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

4шт.

15

253372A4

TUBE

1шт.

16

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

1шт.

17

253380A4

TUBE,298, 154 mm Length

1шт.

18

252962A2

HOSE

840 mm (33 in)

2шт.

19

255245A1

BLOCK

2шт.

20

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in dia

2шт.

21

253311A3

TUBE,843, 83 mm Length

Left Hand

1шт.

22

253307A3

TUBE,843, 83 mm Length

Right Hand

1шт.

23

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 24

2шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

25

253313A1

PROTECTOR

Left Hand

1шт.

26

253312A1

PROTECTOR

Right Hand

1шт.

27

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

8шт.

28

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

8шт.

29

139091A3

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1245mm Stroke

64 ID x 1245 mm strk, 40 mm dia rod, Loader Lift, See Page(s) 8-91

2шт.

29

139091A3R

95XT

REMAN-HYD CYLINDER

2шт.

29

139091A3C

Return Number

CORE-HYD CYLINDER

2шт.

29

300873A2

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 1245mm Stroke

64 ID x 1245 mm strk, 50 mm dia rod, Loader Lift Service Option - Replacement For 139091A3, See Figure 08-22A

2шт.

29

300873A2R

95XT CASE SKID STEER LOADER, NORTH AMERICA -JAF0311356, Loader Lift

REMAN-HYD CYLINDER

2шт.

29

300873A2C

Return Number

CORE-HYD CYLINDER

2шт.

30

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes 31

2шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

32

253309A3

TUBE,443, 62 mm Length

Left Hand

1шт.

33

253305A3

TUBE,443, 94 mm Length

Right Hand

1шт.

34

252961A2

HOSE

775 mm (30-1/2 in)

2шт.

35

197509A1

PROTECTOR

2шт.

36

197508A1

HOLDER

2шт.

37

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

38

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

39

253378A3

TUBE,336, 190 mm Length

1шт.

40

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

1шт.

41

253370A4

TUBE,687, 370 mm Length

1шт.

42

257919A1

CLAMP BRACKET

2 piece

2шт.

43

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

44

259905A1

SPACER

2шт.

45

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

47

253360A3

TUBE,179, 107 mm Length

Control Valve Port B1 to Tee

1шт.

46

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

If Equipped

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
