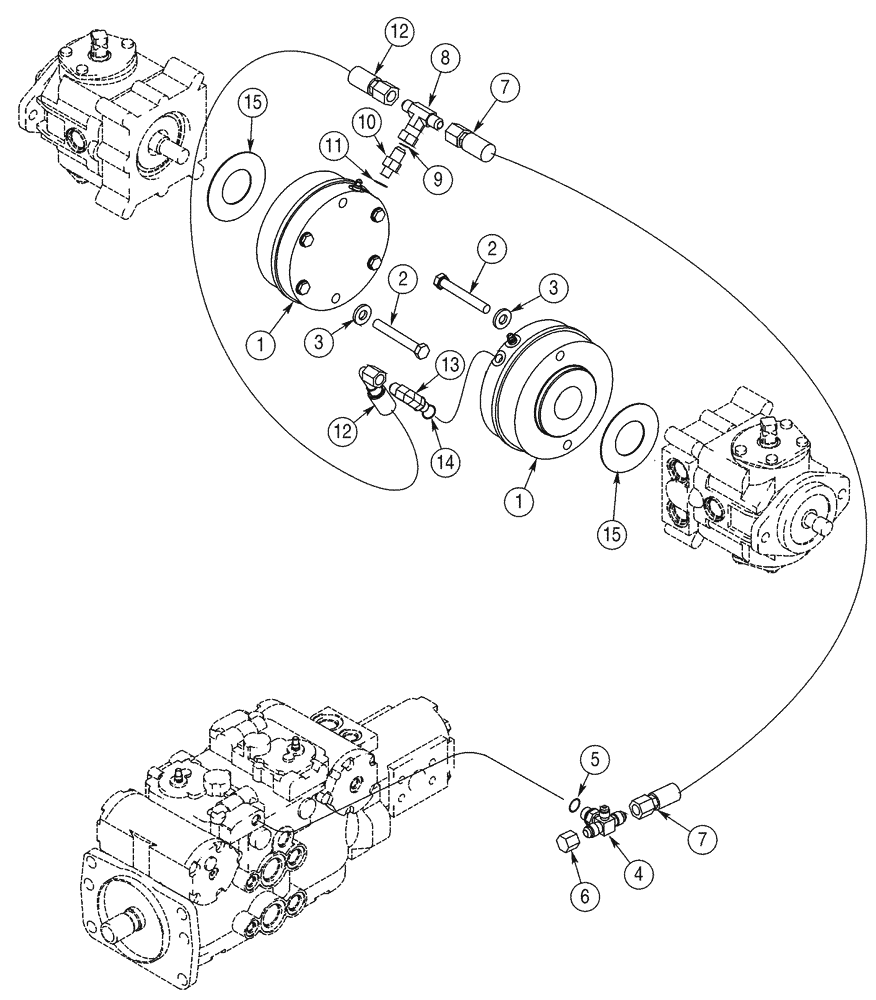

Запчасти Case IH 95XT (07-03) - HYDRAULIC CIRCUIT, BRAKE (NORTH AMERICA JAF0311357- / EUROPE JAF0274360-) (07) - BRAKES

1

320892A1

BRAKE

See Page(s) 7-3

2шт.

2

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

4

253266A1

TEE

Includes 5

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

218-754

CAP,37 Degree, 9/16"-18

1шт.

7

430751A1

HOSE ASSY.

Pump to Brake, Left Hand, 1115 mm (43-29/32 in)

1шт.

8

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

9/16 x 18, Includes 8

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

9/16 fl x 7/16 Or, Includes 11

1шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

12

430750A1

HOSE ASSY.

Pump to Brake, Right Hand, 730 mm (28-3/4 in)

1шт.

13

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. 14

1шт.

14

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

15

320891A1

GASKET,2.4mm Thk

2шт.
