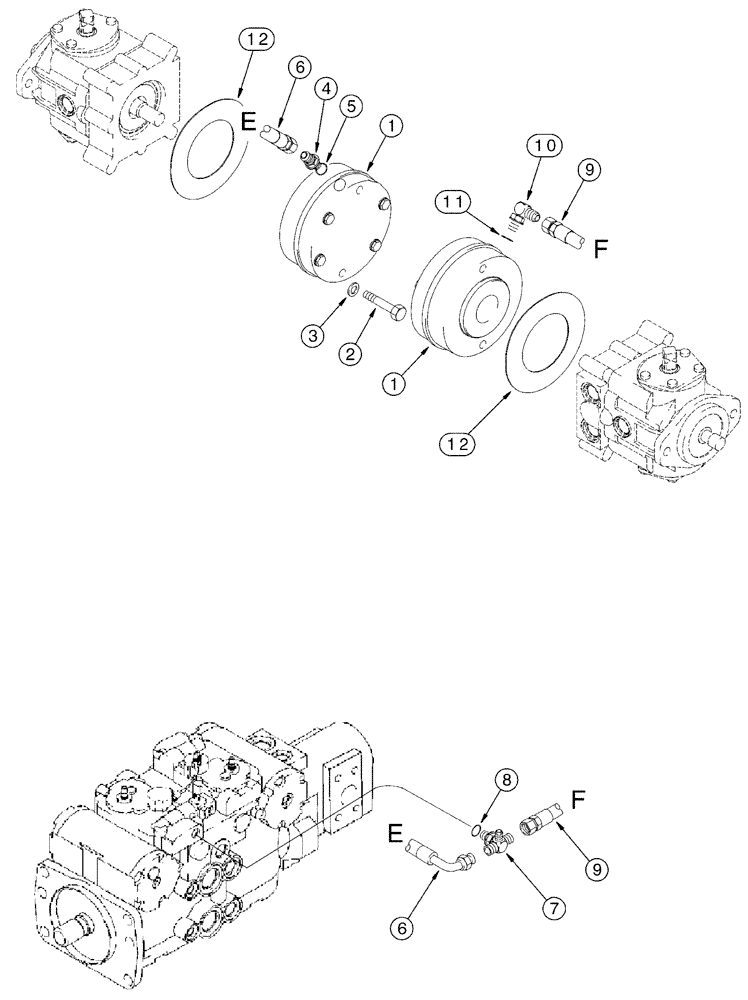

Запчасти Case IH 95XT (07-02) - HYDRAULIC CIRCUIT, BRAKE (NORTH AMERICA -JAF0311356 / EUROPE -JAF0274359) (07) - BRAKES

1

320892A1

BRAKE

See Page(s) 7-3

2шт.

2

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

4

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 5

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

6

253264A1

HOSE

550 mm (21-5/8 in)

1шт.

7

253266A1

TEE

Includes 8

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

253265A1

HOSE

455 mm (18 in)

1шт.

10

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

7/16 fl x adj Or, Includes 11

1шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

12

320891A1

GASKET,2.4mm Thk

2шт.
