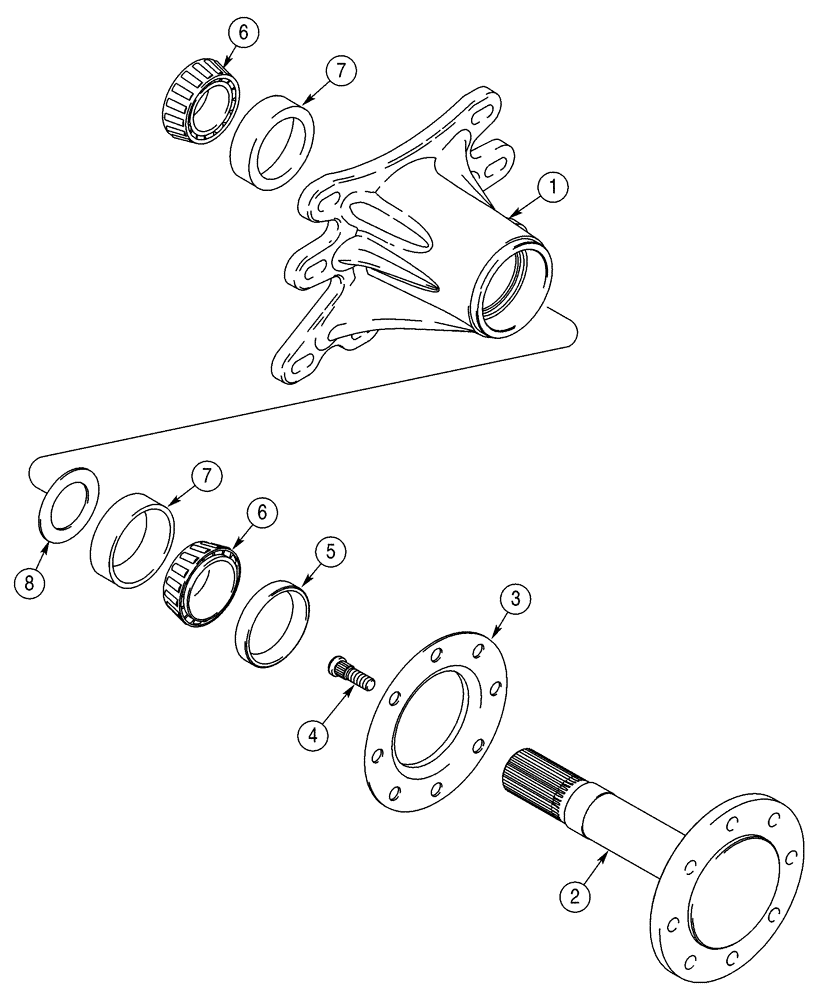

Запчасти Case IH 95XT (06-28) - AXLE ASSEMBLY (06) - POWER TRAIN

REF

INSTRUCTION

Axle Assy, Incl. 1 - 8

4шт.

1

175003A1

HUB

If Used; Prior to S/N JAF0299275

1шт.

386800A2

HUB ASSY.

Incl. 339429A1, Ref 7, 8; S/N JAF0299275 & After

1шт.

1

339429A1

HUB

If Used; S/N JAF0299275 & After

1шт.

175760A1

SHAFT

Incl. 2 - 4, Prior To JAF0299275

1шт.

339428A3

AXLE

Incl. 2 - 4; JAF0299275 And After

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft, Axle

1шт.

3

175762A1

PROTECTOR

1шт.

4

191048A2

STUD

M16; Plain; Grade 9.8; If Used

8шт.

4

87618650

STUD

M16; Phosphate Coated; Grade 9.8; If Used

8шт.

5

291134A1

SEAL,76.2mm ID x 110.21mm OD x 12.7mm Thk

Used With 175003A1

2шт.

5

341841A2

OIL SEAL,76.2mm ID x 109.95mm OD x 14mm Thk

Used With 339429A1

1шт.

6

227488A1

ROLLER BEARING,63.5mm ID x 22mm W

2шт.

7

227489A1

BEARING, ROLLER,63.5 mm ID x 18.824 mm

2шт.

8

197804A1

WASHER,64.5mm ID x 100.5mm OD x 3.2mm Thk

2шт.

NSS

NOT SOLD SEPARAT

Grease, Replaces 331-237

1шт.
