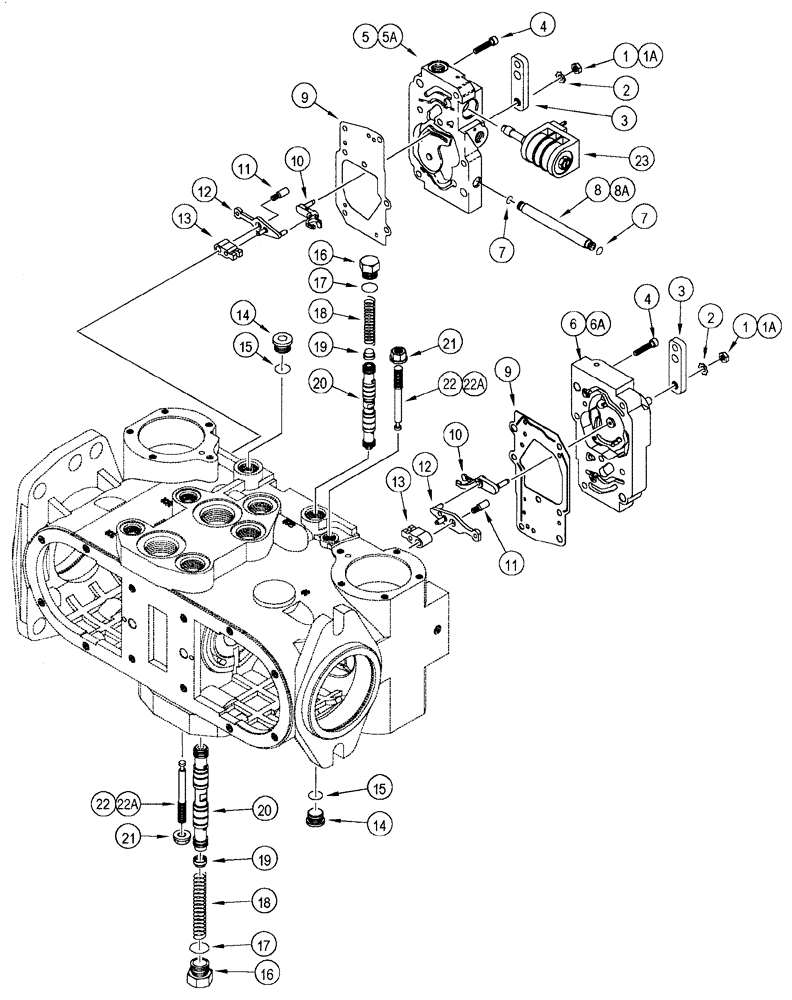

Запчасти Case IH 95XT (06-18) - TANDEM PUMP, CONTROL (06) - POWER TRAIN

REF

INSTRUCTION

Pump, Tandem, See Page(s) 6-31, Consists Of 6-33 - 6-45

1шт.

1

105693A1

NUT

Component of 259623A1, See Page(s) 6-31

2шт.

1a

324796A1

NUT

Component of 320269A1, 349475A1, See Page(s) 6-31

2шт.

2

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

2шт.

3

259487A1

LEVER

2шт.

4

233022A1

SCREW

14шт.

5

259488A1

CONTROL

Front Pump, See Page(s) 6-47, Component of 259623A1, See Page(s) 6-31, No Longer Available, Order 320273A1

1шт.

5a

320273A1

SET OF PARTS

Front Pump, Component Parts Not Serviced Separately, No Longer Used, Order 372446A1, 372551A1

1шт.

5a

372551A1

KIT

Component of 357009A1, No Longer Used, Order 436130A1

1шт.

5a

436130A1

KIT

Front Pump, Incl. 436129A1, 436132A1, Not Illustrated Separately; Component of 433906A1

1шт.

436129A1

RING, SNAP

RING SNAP

1шт.

436132A1

SWITCH

Backup Alarm

1шт.

5b

372446A1

KIT

Not Illustrated

1шт.

6

259489A1

CONTROL

Rear Pump, Component of 259623A1, See Page(s) 6-31, No Longer Available, Order 320274A1

1шт.

6a

320274A1

SET OF PARTS

Rear Pump, Component of 320269A1, 349475A1, See Page(s) 6-31, No Longer Used, Order 436131A1

1шт.

6a

436131A1

KIT

Rear Pump, Incl. 436129A1, 436132A1, Not Illustrated Separately; Component of 433906A1, See Page(s) 6-31

1шт.

436129A1

RING, SNAP

RING SNAP

1шт.

436132A1

SWITCH

Backup Alarm

1шт.

7

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

8

233031A1

TUBE

Component of 259623A1, See Page(s) 6-31

1шт.

8a

324798A1

TUBE

Component of 320269A1, 349475A1, See Page(s) 6-31

1шт.

9

233035A1

GASKET

2шт.

10

233024A1

JOINT

Control Spool

2шт.

11

233023A1

SCREW

2шт.

12

233026A1

JOINT

Feedback

2шт.

13

233027A1

JOINT

Adjustment

2шт.

14

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 15

2шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

291791A1

PLUG

Includes 17

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

291115A1

SPOOL

Consists Of 18 - 20

2шт.

18

291117A1

SPRING

1шт.

19

291120A1

SPRING SEAT

1шт.

20

291116A1

SPOOL

1шт.

21

233029A1

NUT

2шт.

22

233028A1

SET SCREW

Component of 259623A1, See Page(s) 6-31

2шт.

22a

324795A1

SET SCREW

Component of 320269A1, 349475A1, See Page(s) 6-31

2шт.

23

299414A1

SOLENOID

Neutral Override, Purchase Separately, Also Order 372446A1

1шт.
