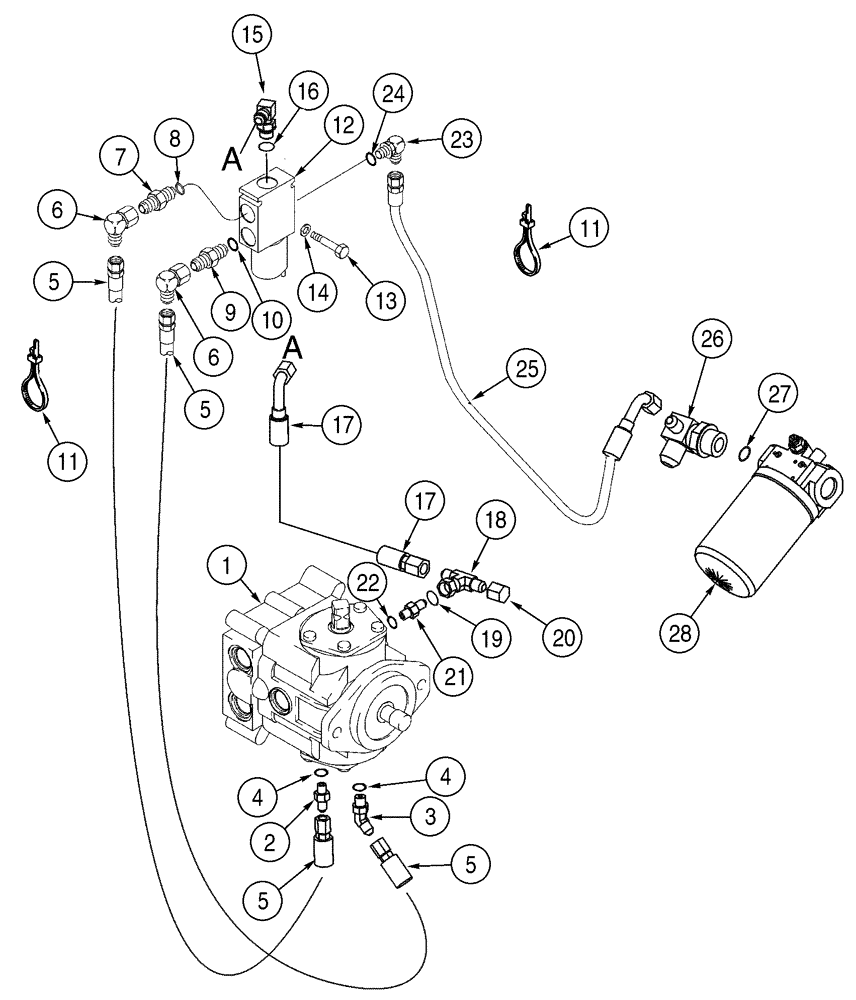

Запчасти Case IH 95XT (06-12) - HYDROSTATICS - SOLENOID (NORTH AMERICA JAF0311357- / EUROPE JAF0274360-) (06) - POWER TRAIN

1

192899A3

MOTOR, HYDRAULIC

See Page(s) 6-55, 6-57

2шт.

1

192899A3R

REMAN-HYD MOTOR

95XT CASE SKID STEER LOADER

2шт.

1

192899A3C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

2

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 4

2шт.

3

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

7/16 fl x adj, Includes 4

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

430160A1

HOSE ASSY.

870 mm (34-1/4 in), Solenoid Valve to Cylinder, See Page(s) 6-19F, Ref. 26

2шт.

6

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 8

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

293701A1

VALVE

Includes 10

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

187505C91

VALVE

See Page 06-23

1шт.

13

814-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8

2шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

L129652

FITTING

Special, Includes 16

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

430159A1

HOSE ASSY.

480 mm (18-29/32 in), Solenoid Valve To Motor Case

1шт.

18

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

9/16 x 18, Includes 19

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

218-754

CAP,37 Degree, 9/16"-18

1шт.

21

218-5044

HYD CONNECTOR,9/16" - 18 Male JIC x 1-1/16" - 12 Male ORB

9/16 fl x 1-1/16 Or, Includes 22

1шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

23

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Includes 24

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

430750A1

HOSE ASSY.

730 mm (28-3/4 in), Right Hand Brake

1шт.

26

50-3621T1

ELBOW

7/8 fl x 1-1/16 Or, Includes 27, For Attaching Parts, See Page 6-15F, Ref. 18

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

28

222757A1

FILTER ASSY

See Page(s) 6-29B

1шт.
