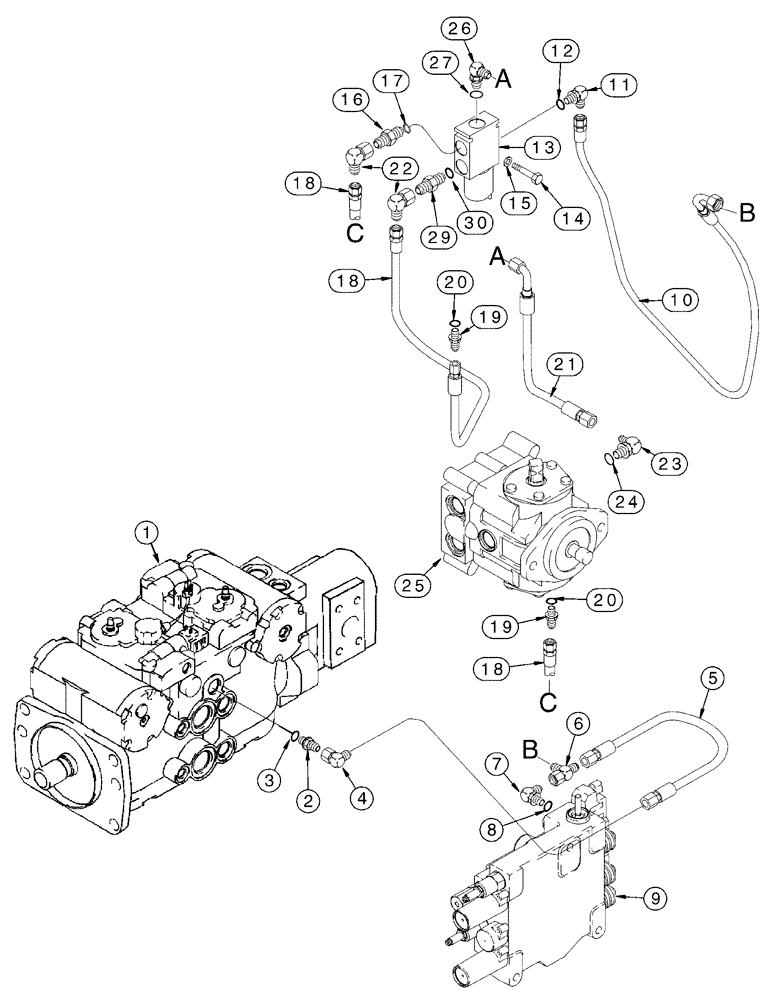

Запчасти Case IH 95XT (06-11) - HYDROSTATICS - SOLENOID (NORTH AMERICA -JAF0311356 / EUROPE -JAF0274359) (06) - POWER TRAIN

1

REF

INSTRUCTION

Pump, Tandem, See Page(s) 6-35 - 6-43

1шт.

2

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

Includes 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

5

220293A2

HOSE ASSY.

470 mm (18-1/2 in)

1шт.

6

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

7

277908A1

TEE

Special, Includes 8

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

REF

INSTRUCTION

3 spool, Valve, Control, See Page(s) 8-59, 8-61, 8-69 - 8-75

1шт.

10

230566A2

HOSE

1340 mm (52-3/4 in)

1шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Includes 12

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

187505C91

VALVE

See Page 06-23

1шт.

14

814-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8

2шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

16

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 17

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

230567A2

HOSE

870 mm (34-1/4 in)

2шт.

19

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 20, No Longer Used, Order 218-5133

2шт.

19a

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

7/16 fl x adj, Includes 20

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

230565A2

HOSE

440 mm (17-3/8 in)

1шт.

22

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

23

294014A1

ELBOW

Includes 24

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

25

192899A2

MOTOR, HYDRAULIC

See Page(s) 6-55, 6-57, No Longer Used, Order 192899A3

2шт.

25

192899A3R

REMAN-HYD MOTOR

Reman For New Part PN 192899A2

2шт.

25

192899A3C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

25a

192899A3

MOTOR, HYDRAULIC

See Page(s) 6-55, 6-57

2шт.

25a

192899A3R

REMAN-HYD MOTOR

95XT CASE SKID STEER LOADER

2шт.

25a

192899A3C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

26

L129652

FITTING

Special, Includes 27

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

293701A1

VALVE

Includes 30

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
