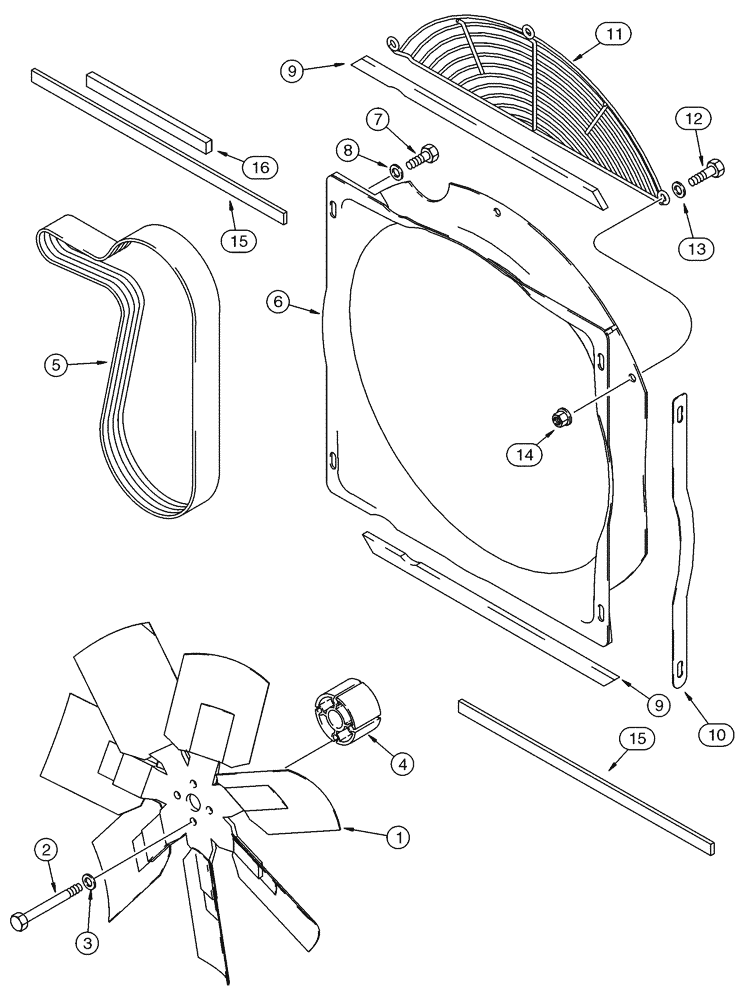

Запчасти Case IH 95XT (02-02) - FAN FAN BELT (02) - ENGINE

1

87680032

FAN,6 Blades, 517.9mm OD

518 mm (20 3/8 in.); 24 Degree; Replaces 238344A1

1шт.

2

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

If Used

4шт.

2

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

If Used

4шт.

4

A184523

SPACER

47,5 mm

1шт.

5

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

Fan, N.A. Only

1шт.

5

J911563

V-BELT,27.92mm W x 1536.7mm L, 8 Ribs

Fan, Models With Air Conditioning

1шт.

5

J911566

V-BELT,27.92mm W x 1612.9mm L, 8 Ribs

Fan, Europe Only

1шт.

6

241140A3

SHROUD

Replaces 241140A2

1шт.

6a

302131A1

SEAL

Fan Shroud, Models With Air Conditioning, Not Illustrated

1шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

8

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

4шт.

9

A173165

SEALING STRIP

Upper And Lower, No Longer Available, Order 295617A1, REF 15

2шт.

10

258663A1

SEAL

Side

2шт.

11

247610A2

PROTECTOR

Fan

1шт.

12

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

3шт.

14

825-51410

FLANGE NUT,M10, Flg Ser

3шт.

15

295617A1

SEAL

485 mm (19-1/8 in)

2шт.

16

295618A1

SEAL

230 mm (9-1/8 in)

1шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

13

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.
