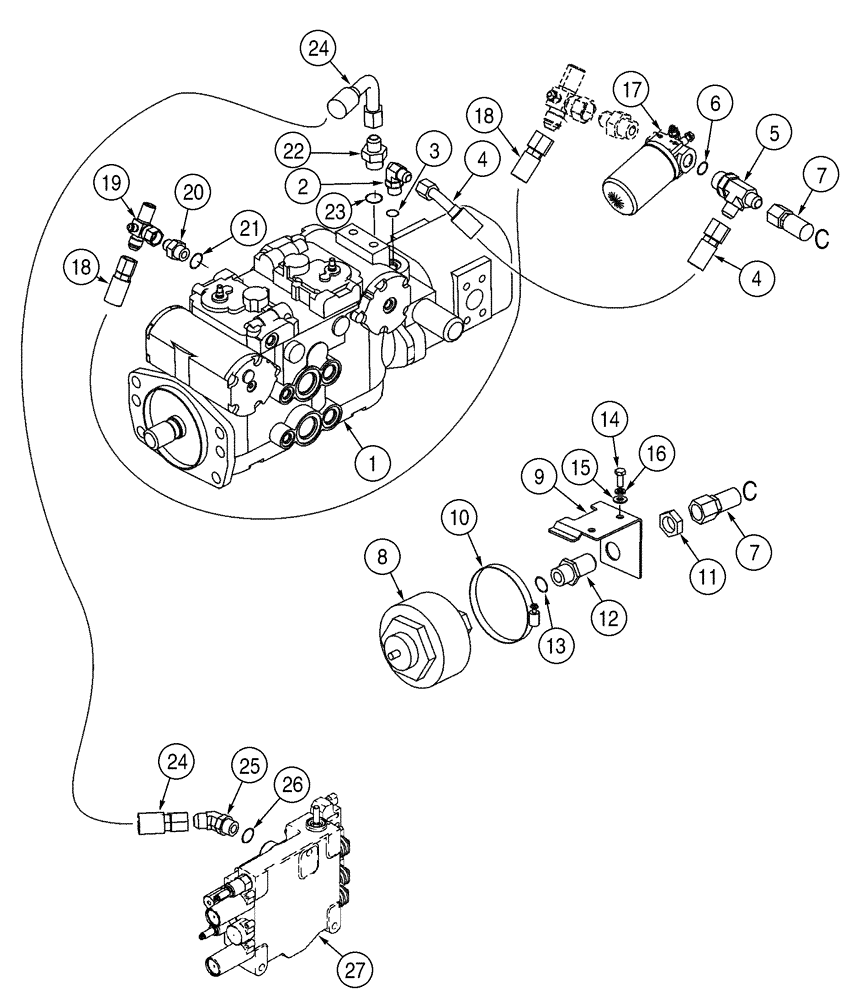

Запчасти Case IH 95XT (06-04) - HYDROSTATICS - PUMP, SUPPLY & RETURN, TANDEM PUMP & CONTROL VALVE TO FILTERS (06) - POWER TRAIN

1

433904A1

PUMP

Includes 3, See Page(s) 6-16 Through 06-19 For Breakdown

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

427042A1

HOSE ASSY.

1125 mm (44-5/16 in), Pump To Charge Filter

1шт.

5

218-5294

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 7/8"-14

Includes 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

427033A1

HOSE ASSY.

445 mm (17-17/32 in), Accumulator to Charge Filter

1шт.

8

369034A1

Accumulator

1шт.

9

427077A1

ANGLE

1шт.

10

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

1шт.

11

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

12

126155A1

FITTING

1-1/16 blkhd fl x OR, Includes 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

16

892-11008

LOCK WASHER,8mm ID

2шт.

17

222757A1

FILTER ASSY

European Models, See Page(s) 6-29B

1шт.

18

427043A1

HOSE ASSY.

1385 mm (54-17/32 in), For Attaching Parts, See Page 6-27D, Ref. 26

1шт.

19

296384A1

FITTING

1шт.

20

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

7/8 fl x 1-1/16 Or, Includes 23

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

419049A1

HOSE ASSY.,15.88mm ID x 550mm L

550 mm (21-21/32 in)

1шт.

25

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 26

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

REF

INSTRUCTION

Valve, Control, See Page(s) 8-65, 8-67, 8-77 - 8-83

1шт.

15

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.
