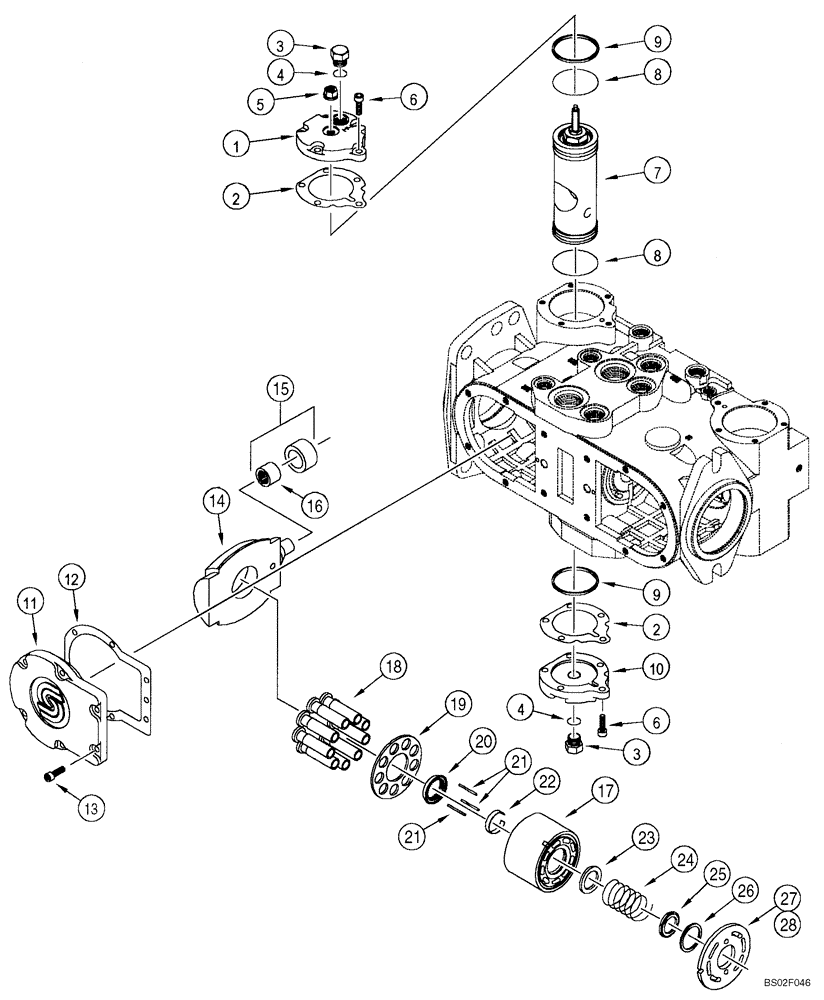

Запчасти Case IH 90XT (06-08) - PUMP, TANDEM, CYLINDER BLOCK (Aug 13 2010 12:28PM) (06) - POWER TRAIN

433903A1

PUMP

See Figure 06-06; Incl. 06-07 - 06-10

1шт.

87297990

REMAN-HYD PUMP

Remanufactured PUMP - N.A. Only

1шт.

87297991

CORE-HYDRAULIC PUMP

Return No, PUMP - N.A. Only

1шт.

1

291125A1

COVER

Rod End

2шт.

2

373328A1

GASKET

4шт.

3

9625178

PLUG,9/16" - 18 ORB

Incl. 4

4шт.

5

233029A1

NUT

2шт.

6

233022A1

SCREW

20шт.

259495A1

SET OF PARTS

Incl. 7 - 9

2шт.

7

NSS

NOT SOLD SEPARAT

Piston

1шт.

233042A1

PACKAGE

Incl. 8, 9

1шт.

8

238-5139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

2шт.

9

291278A1

PISTON RING

2шт.

10

233047A1

COVER

Plain End

2шт.

11

373305A1

COVER

Incl. 373327A1

2шт.

12

373327A1

GASKET

2шт.

13

324791A1

SCREW

12шт.

14

373330A1

PLATE

2шт.

15

291114A1

BEARING ASSY

Incl. 17

2шт.

16

233012A1

BEARING, NEEDLE

1шт.

233039A1

PACKAGE

Incl. 17 - 26

2шт.

17

NSS

NOT SOLD SEPARAT

Block

1шт.

18

291277A1

PISTON

9шт.

19

291276A1

LARGE PLATE

PLATE, LARGE

1шт.

20

291275A1

GUIDE

1шт.

21

291274A1

PIN

3шт.

22

117382A1

SPLIT PIN/SAFETY PIN

1шт.

23

115950A1

WASHER

1шт.

24

176373A1

SPRING

1шт.

25

176372A1

WASHER

1шт.

26

102-22162

SNAP RING,43.20mm ID, Int, Spiral

1шт.

27

233008A1

LARGE PLATE

PLATE, LARGE Front Pump

1шт.

28

233005A1

LARGE PLATE

PLATE, LARGE Rear Pump

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
