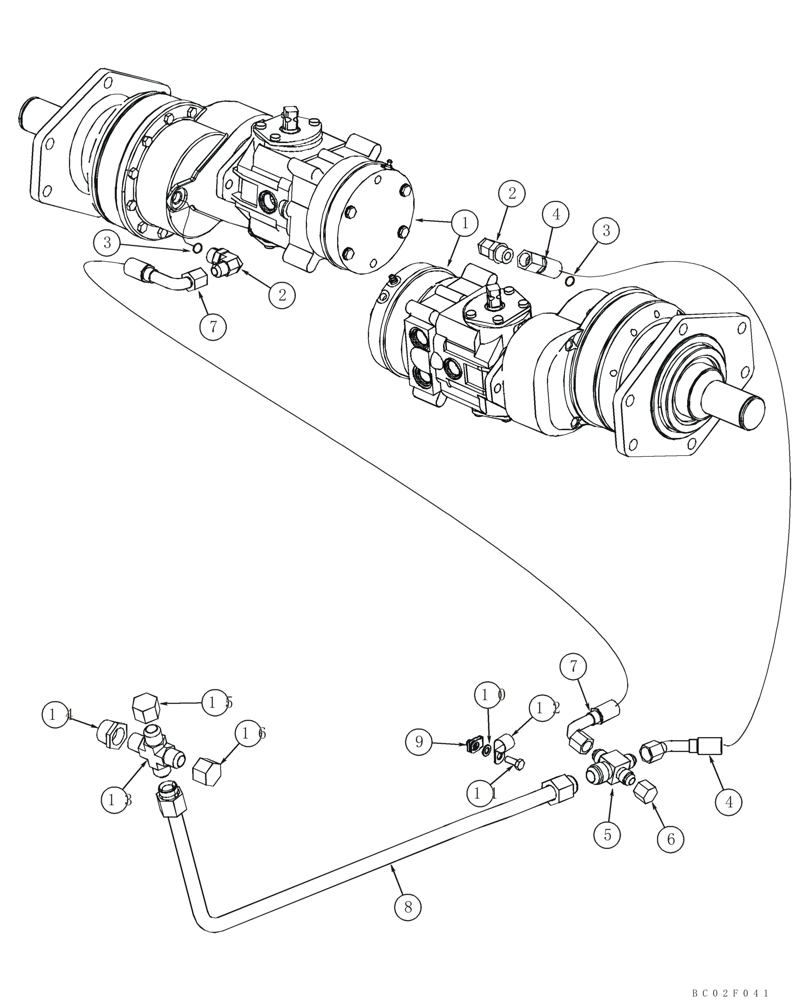

Запчасти Case IH 90XT (06-02) - HYDROSTATICS - CASE DRAIN (Aug 13 2010 9:27AM) (06) - POWER TRAIN

1

192899A3

MOTOR, HYDRAULIC

See Figure 06-12, 06-12A

2шт.

1

192899A3R

REMAN-HYD MOTOR

Reman For New P/N 192899A3

2шт.

1

192899A3C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

430161A1

HOSE ASSY.

950 mm (37-13/32 in); Motor Case Drain; Right Hand

1шт.

5

418507A1

FITTING

Cross Union

1шт.

6

218-755

CAP,37 Degree, 3/4"-16

Models with Ride Control; See Figure 08-04

1шт.

7

430162A1

HOSE ASSY.

375 mm (14-25/32 in); Motor Case Drain; Left Hand

1шт.

8

433061A1

TUBE

Case Drain To Tank

1шт.

9

833-40008

SPRING NUT,M8, U

1шт.

10

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 1,6 mm

1шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

12

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

13

306389A1

CROSS

Union

1шт.

14

221-1604

REDUCER,Hex, 1" x 3/4" NPT

1 x 3/4

1шт.

15

218-335

CAP,37 Degree, 1 1/16"-12

Models With Hydraulic Coupler; See Figure 08-05, Ref 35

1шт.

16

218-335

CAP,37 Degree, 1 1/16"-12

Models With Gear High Flow Hydraulics; See Figure 08-14D, Ref 1

1шт.
