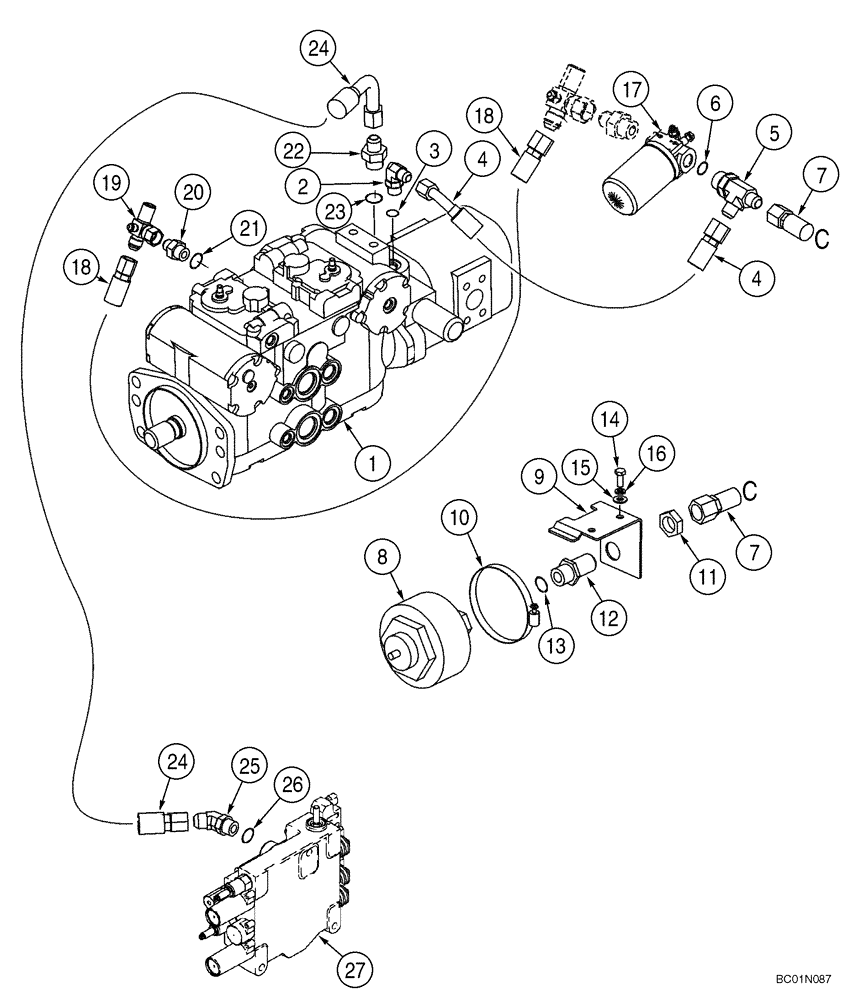

Запчасти Case IH 90XT (06-01A) - HYDROSTATICS - PUMP, SUPPLY AND RETURN (06) - POWER TRAIN

REF

INSTRUCTION

TANDEM PUMP AND CONTROL VALVE TO FILTERS

1шт.

1

433903A1

PUMP

Incl. 3; See Figure 06-06

1шт.

1

87297990

REMAN-HYD PUMP

Remanufactured PUMP - N.A. Only

1шт.

1

87297991

CORE-HYDRAULIC PUMP

Return No, PUMP - N.A. Only

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

419050A1

HOSE ASSY.

940 mm (37 in); Pump To Change Filter

1шт.

5

218-5294

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 7/8"-14

Incl. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

427033A1

HOSE ASSY.

445 mm (17-17/32 in); Accumulator To Charge Filter

1шт.

8

117941A1

ACCUMULATOR

1шт.

9

427077A1

ANGLE

1шт.

10

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

1шт.

11

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

12

126155A1

FITTING

1-1/16 blkhd fl x Or; Incl. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

15

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

16

892-11008

LOCK WASHER,8mm ID

2шт.

17

222757A1

FILTER ASSY

European Models; See Figure 06-05

1шт.

18

419051A1

HOSE ASSY.

1200 mm (47-1/4 in); For Attaching Parts, See Figure 06-04A, Ref 26

1шт.

19

296384A1

FITTING

1шт.

20

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

7/8 fl x 1-1/16 Or; Incl. 23

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

435082A1

HOSE ASSY.,15.88mm ID x 470mm L

470 mm (18-1/2 in)

1шт.

25

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or; Incl. 26

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

409062A2

VALVE

Control; See Figure 08-08, 08-09

1шт.

27

87431787

VALVE

Control; See Figure 08-08, 08-09; If Used; Replaces 409062A2

1шт.
