Запчасти Case IH 90XT (04-07) - HARNESS, REAR - CHASSIS (Sep 22 2010 10:11AM) (04) - ELECTRICAL SYSTEMS

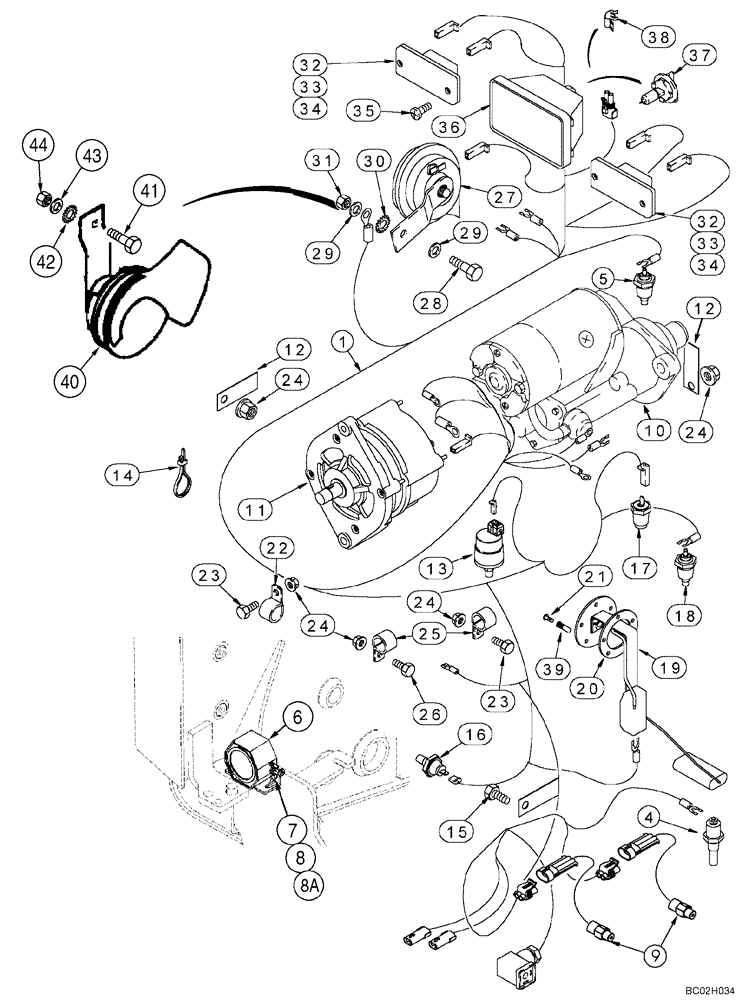

Схема запчастей Case IH 90XT - (04-07) - HARNESS, REAR - CHASSIS (Sep 22 2010 10:11AM) (04) - ELECTRICAL SYSTEMS
21
24
17
37
23
14
44
8
10
24
35
8a
30
36
29
20
22
1
33
7
5
31
29
42
13
25
38
23
27
12
12
43
16
26
19
15
9
40
32
41
24
11
28
33
4
6
39
34
24
18
32
34

Артикул

Название

Примечание

Количество

1

372229A1

HARNESS

Chassis; See Figure 04-06

1шт.

4

H439301

SWITCH

Hydraulic Temperature

1шт.

5

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Hydraulic Temperature

1шт.

6

324299A1

ALARM

Back-up; Used in Production; Order 325258A1

1шт.

7

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

8

832-41306

NUT,M6 x 1, Cl 10

2шт.

8a

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

9

443897A1

SWITCH

Charge Pressure; Brake Pressure; Replaces 251905A2 and 436334A1

2шт.

10

1987559C1

STARTING MOTOR

See Figure 04-01

1шт.

10

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, Starter, 12 volt, 2.5KW

1шт.

10

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

10

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

10

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

11

A187873

ALTERNATOR,12V, 65A

12V, 65 amp; See Figure 04-02

1шт.

11

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

12

A37179

CLIP

3шт.

13

293797A1

RESTRICTION SWITCH

Air

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

16

277016A1

PRESSURE SWITCH

Engine Oil, M10

1шт.

17

1345488C3

TEMPERATURE SWITCH

Engine Temp

1шт.

18

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Engine Temp; If Equipped

1шт.

19

426128A1

SENDER UNIT

SENDER Fuel Level; Brake

1шт.

20

528359R4

GASKET,3.05mm Thk

1шт.

21

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

No. 10 NF x 3/4

5шт.

22

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

23

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

24

825-5148

SERRATED NUT,M8, Flg Ser

3шт.

25

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

26

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

27

341825A1

HORN

12V; See Figure 04-20

1шт.

28

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

29

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 1,6 mm

2шт.

30

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

31

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

32

233163A2

LAMP, TAIL

LIGHT, TAIL Incl. 33 - 35

2шт.

33

NSS

NOT SOLD SEPARAT

Lens; Red

1шт.

34

259499A1

BULB

12V, 5W

1шт.

35

260-13414

SELF-TAP SCREW,Cross Pan Hd, #8 x 7/8"

No. 8 st x 7/8

2шт.

36

222004A2

HEADLIGHT,Halogen, 12V, 50W, Clear

Incl. 37, 38

1шт.

37

259702A1

BULB

1шт.

38

259701A1

CLIP,ELECTRICAL

1шт.

39

196985A1

ROD,THREADED

THREADED ROD Used With 490-11012; Use Loctite No. 242

5шт.

B17577

LOCTITE

No. 242, 6 ml; Blue

1шт.

REF

INSTRUCTION

EUROPE ONLY

1шт.

40

341825A1

HORN

12v

1шт.

41

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

42

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

43

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

44

832-10406

NUT,M6 x 1, Cl 8

1шт.

Выбрано товаров: 50
