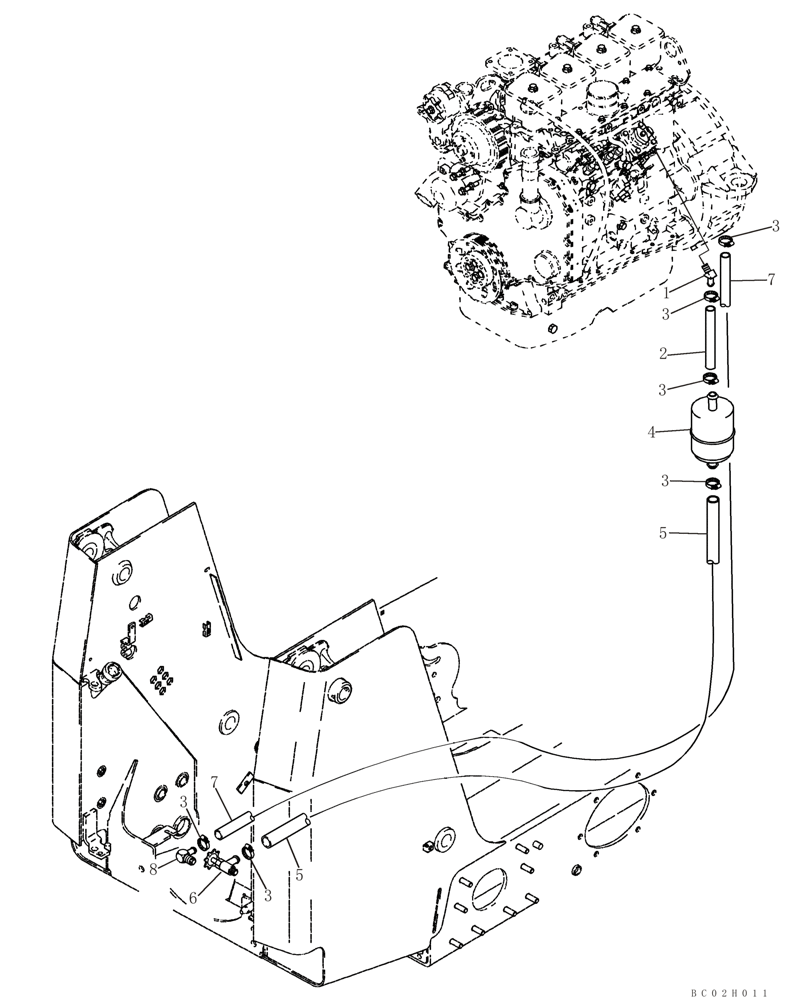

Запчасти Case IH 90XT (03-01) - FUEL LINES (Nov 3 2009 8:28AM) (03) - FUEL SYSTEM

REF

INSTRUCTION

4T-390 EMISSIONS CERTIFIED ENGINE

1шт.

1

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

3/8 stem x 1/4 PT

1шт.

1a

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

3/8 barb x 1/4 PT; Europe Only

1шт.

2

D138967

FUEL HOSE

80 mm (3-1/4 in); Cut From A21561X

1шт.

3

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

6шт.

4

D139225

FILTER, FUEL

In-Line

1шт.

5

H439168

HOSE,9.52 mm ID x 705.00 mm, SAE 30R6

680 mm (26-3/4 in)

1шт.

6

H434805

VALVE

Shut-Off

1шт.

7a

H439168

HOSE,9.52 mm ID x 705.00 mm, SAE 30R6

680 mm (26-3/4 in); North America Only

1шт.

8

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

Europe Only

1шт.

8a

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

3/8 barb x 1/4 PT; North America Only

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP North America Only; Not Illustrated

1шт.
