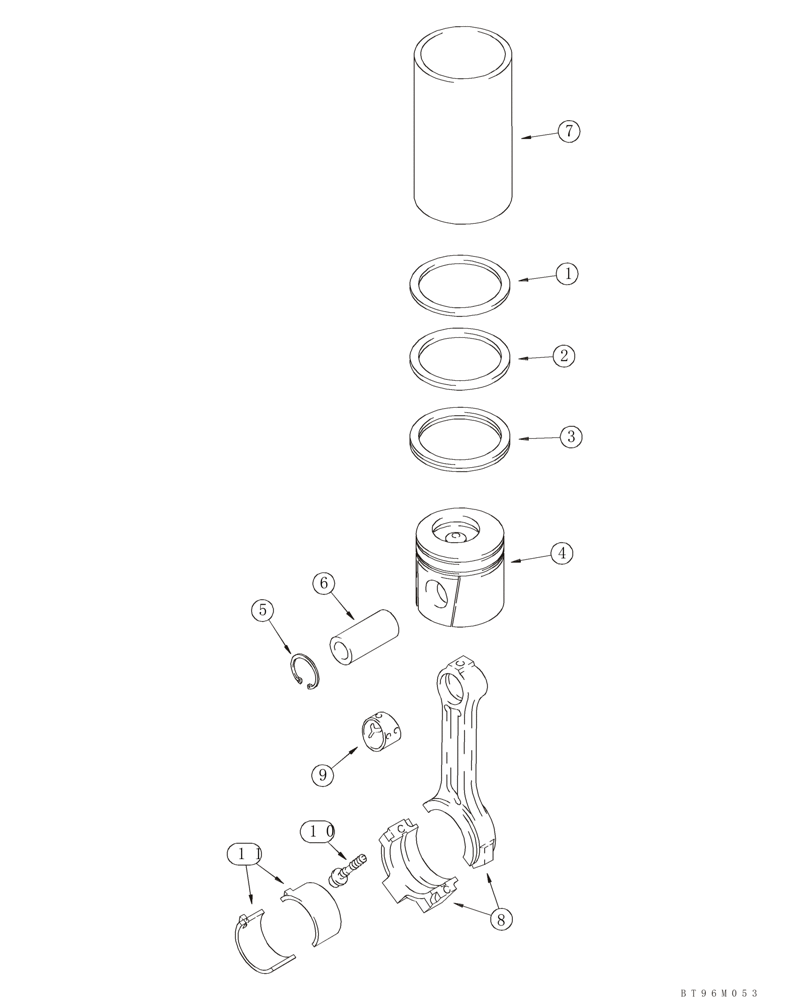

Запчасти Case IH 90XT (02-18) - PISTONS - CONNECTING RODS (02) - ENGINE

REF

INSTRUCTION

4-390 EMISSIONS CERTIFIED ENGINE

1шт.

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

Standard; Incl. 1 - 5

4шт.

J802746

PISTON RING SET

Standard; Incl. 1 - 5

4шт.

1

NSS

NOT SOLD SEPARAT

Ring; Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring; Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring; Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston; Standard

1шт.

5

J920691

SPECIAL RING

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

1шт.

J802764

PISTON & RINGS KIT

Oversize 0,5 mm; Incl. J802422, 1 - 5

4шт.

J802422

PISTON RING SET

Oversize 0,5 mm; Incl. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Ring; Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring; Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring; Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston; Oversize 0,5 mm

1шт.

5

J920691

SPECIAL RING

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

1шт.

J802765

PISTON & RINGS KIT

Oversize 1,0 mm; Incl. J802423, 1 - 5

4шт.

J802423

PISTON RING SET

Oversize 1,0 mm; Incl. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Ring; Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring; Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring; Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston; Oversize 1,0 mm

1шт.

5

J934047

PIN,40mm OD x 82.68mm L

2шт.

6

J920691

SPECIAL RING

1шт.

7

J904166

SLEEVE

Use With J802747

1шт.

J942581

ROD, CONNECTING

Incl. 8 - 10

4шт.

JR942581

REMAN-CONNECTING ROD

Reman for New PN J942581

4шт.

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod Return Number

4шт.

84145405R

REMAN-CONNECTING ROD

90XT ASN JAF0320050 (NA) JAF0274262 (EU), 95XT ASN JAF0311357 (NA) JAF0274360 (EU), 75XT ASN JAF0318922 (NA) JAF0352169 (EU), 85XT ASN JAF0352234 (NA) JAF0352715 (EU), Reman For New PN J942581

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

8

NSS

NOT SOLD SEPARAT

Rod

1шт.

9

87403209

BUSHING,40.03mm ID x 43.1mm OD x 38.1mm L

Bushing

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

M11 x 59

2шт.

11

A77465

BEARING SET

Standard

4шт.

11

A77466

BEARING SET

Undersize 0,25 mm

4шт.

11

A77467

BEARING LINER

Undersize 0,50 mm

4шт.

11

A77468

BEARING SET

Undersize 0,75 mm

4шт.

11

A77469

BEARING SET

Undersize 1,00 mm

4шт.
