(09-49) - DECALS - ENGLISH

Запчасти Case IH 90XT (09-49) - DECALS - ENGLISH (09) - CHASSIS

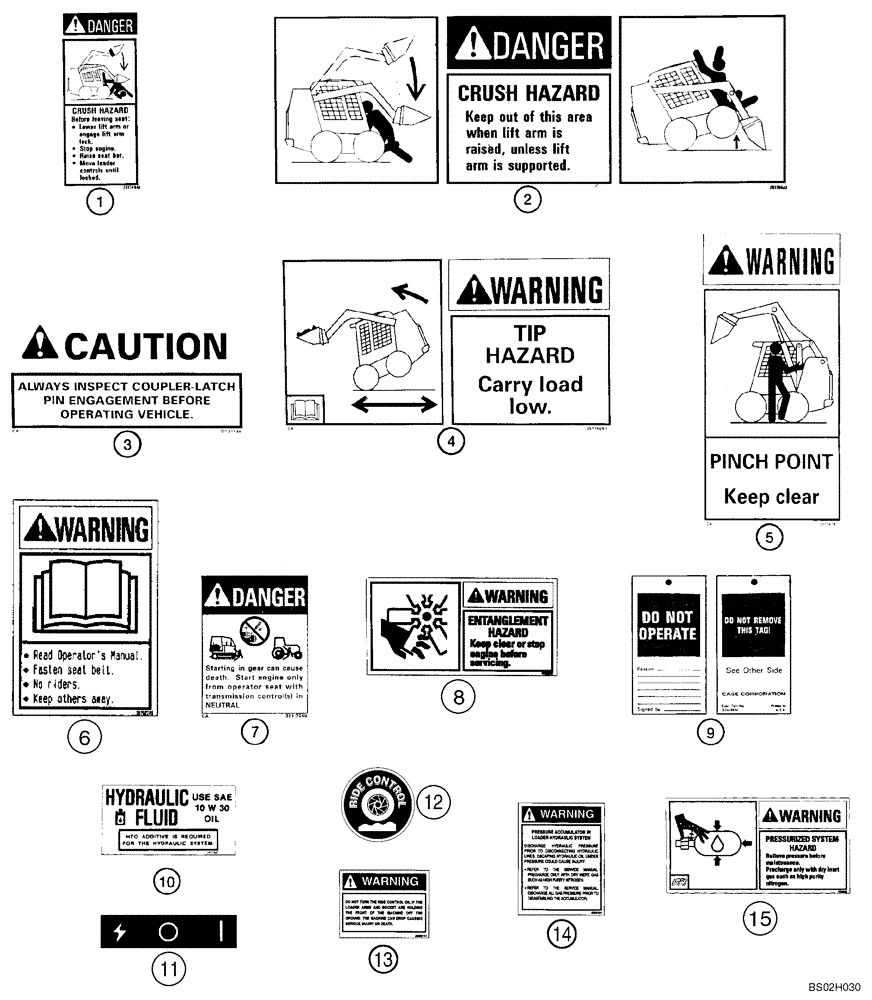

Схема запчастей Case IH 90XT - (09-49) - DECALS - ENGLISH (09) - CHASSIS
5
3
6
8
2
13
15
10
2
1
7
9
4
11
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

251744A1

DECAL

Danger, Crush Hazard

1шт.

2

251745A1

DECAL

Danger, Crush Hazard

1шт.

3

D137186

DECAL

Caution, Always Inspect Coupler Latch

1шт.

4

251748A1

DECAL

Warning, Tip Hazard

1шт.

5

251747A1

DECAL

Warning, Pinch Point

2шт.

6

382622A1

DECAL,60mm x 90mm H

Warning, Read the Operator's Manual

1шт.

7

321-7040

DANGER DECAL

Starting in gear

1шт.

8

384267A1

WARNING DECAL

Keep Clear

1шт.

9

321-4614

TAG

Do Not Operate

1шт.

10

H437687

DECAL

Hydraulic Fluid

1шт.

11

176332A1

DECAL

Battery

1шт.

12

304083A1

DECAL

Ride Control

2шт.

13

255927A1

WARNING DECAL

Warning, Do Not Turn Ride Control On

1шт.

14

256318A1

DECAL

Warning, Pressure Accumulator in Loader Hydraulic System; Europe Only

1шт.

15

384260A1

WARNING DECAL,168mm x 88mm H

Pressurized System Hazard; Europe Only

1шт.
