Запчасти Case IH 90XT (09-22) - SEAT, MOUNTING - SUSPENSION (09) - CHASSIS

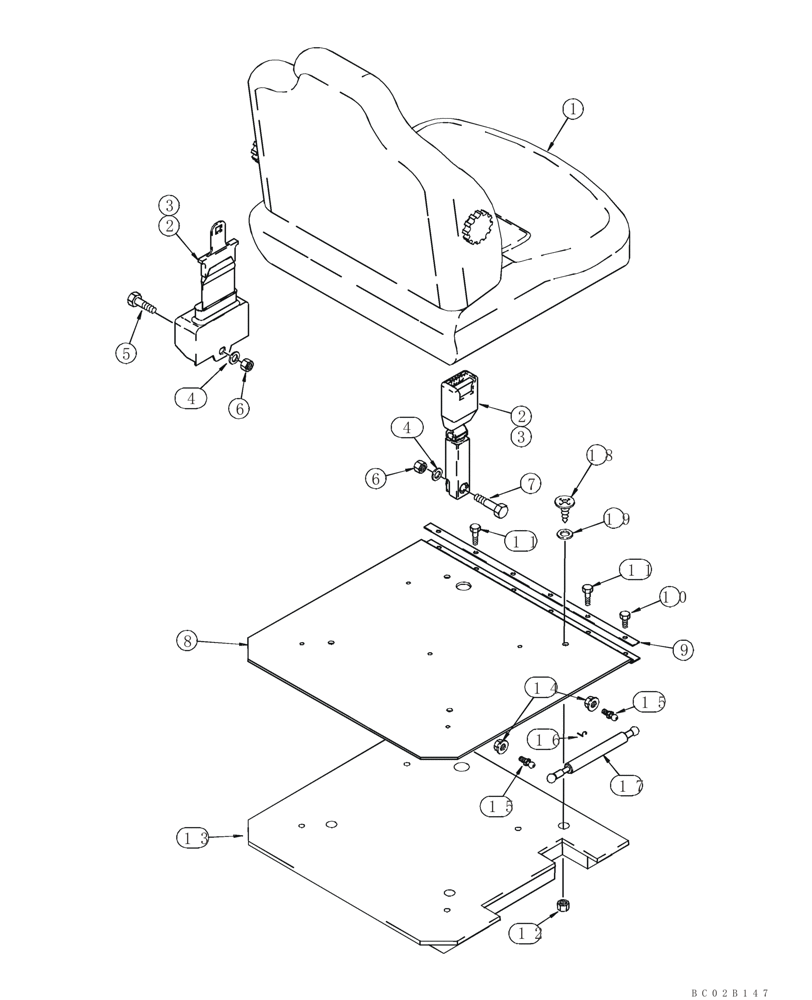

Схема запчастей Case IH 90XT - (09-22) - SEAT, MOUNTING - SUSPENSION (09) - CHASSIS
6
3
14
15
7
9
bc02b147
19
15
13
8
3
2
2
6
10
17
16
4
5
11
11
1
18
12
4

Артикул

Название

Примечание

Количество

1

400681A1

SEAT

See Figure 09-22 - 09-25

1шт.

2

249116A1

SAFETY BELT ,50.80 mm W

Includes 4

1шт.

3

249117A1

SAFETY BELT ,76.20 mm W

North American Only, Includes 4

1шт.

4

NSS

NOT SOLD SEPARAT

Washer

2шт.

5

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

6

832-41410

NUT,M10 x 1.5, Cl 10

2шт.

7

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

8

302136A1

LARGE PLATE

PLATE, LARGE

1шт.

9

259875A1

CROSSMEMBER

1шт.

10

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

11

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

2шт.

12

832-41408

NUT,M8 x 1.25, Cl 10

M8

4шт.

13

245174A1

INSULATOR

1шт.

14

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

15

189609A1

BALL STUD,M8 x 1.25

M8

2шт.

16

254307A1

CLIP

2шт.

17

189787A2

SHOCK ABSORBER

1шт.

18

348452A1

FASTENER,Push-In, 37mm L, Nylon

7,14 hole dia

5шт.

19

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

7,14 ID x 44,5 OD

5шт.

Выбрано товаров: 19
