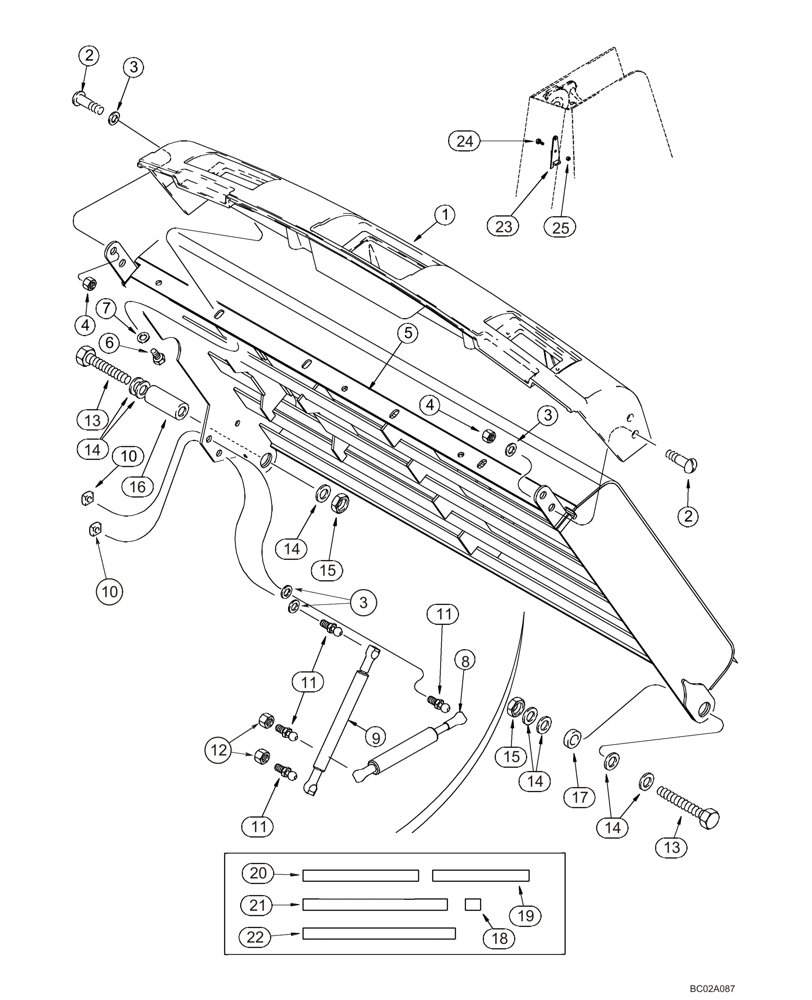

Запчасти Case IH 90XT (09-16) - HOOD - WITH SOUNDPROOFING (EUROPE) (09) - CHASSIS

426788A1

HOOD ASSY.

Engine; Incl. 1 - 12, 18 - 22; Gray

1шт.

1

426787A1

COWLING

Upper Rear; Gray

1шт.

2

86585703

SCREW,Phillips Drive, Pan HD, M8 x 20mm, Cl 4.8

4шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

4

832-41308

NUT,M8 x 1.25, Cl 10

4шт.

5

426785A1

HOOD ASSY.

Gray

1шт.

6

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

Replaces 614-6016

4шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

8

400471A1

DAMPER

76 mm strk; Hood

1шт.

9

400472A1

SPRING,10mm Rod, 38.1mm Stroke

38 mm strk; Hood

1шт.

10

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

2шт.

11

189609A1

BALL STUD,M8 x 1.25

M8

4шт.

12

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

13

302116A1

BOLT

M10 x 50; 10.9

2шт.

14

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

7шт.

15

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

16

284138A1

SPACER

1шт.

17

284794A1

SPACER

1шт.

18

309680A1

FILLING STRIP

70 mm (2-3/4 inch); Adhesive-backed

5шт.

19

309681A1

FILLING STRIP

440 mm (17-3/8 inch); Adhesive-backed

2шт.

20

309682A1

FILLING STRIP

565 mm (22-1/4 inch); Adhesive-backed

1шт.

21

309684A1

FILLING STRIP

710 mm (28 inch); Adhesive-backed

1шт.

22

309683A1

FILLING STRIP

745 mm (29-3/8 inch); Adhesive-backed

1шт.

23

309117A1

EXTENSION

Hood Lock

1шт.

24

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.
