(09-10) - PLATES, FLOOR

Запчасти Case IH 90XT (09-10) - PLATES, FLOOR (09) - CHASSIS

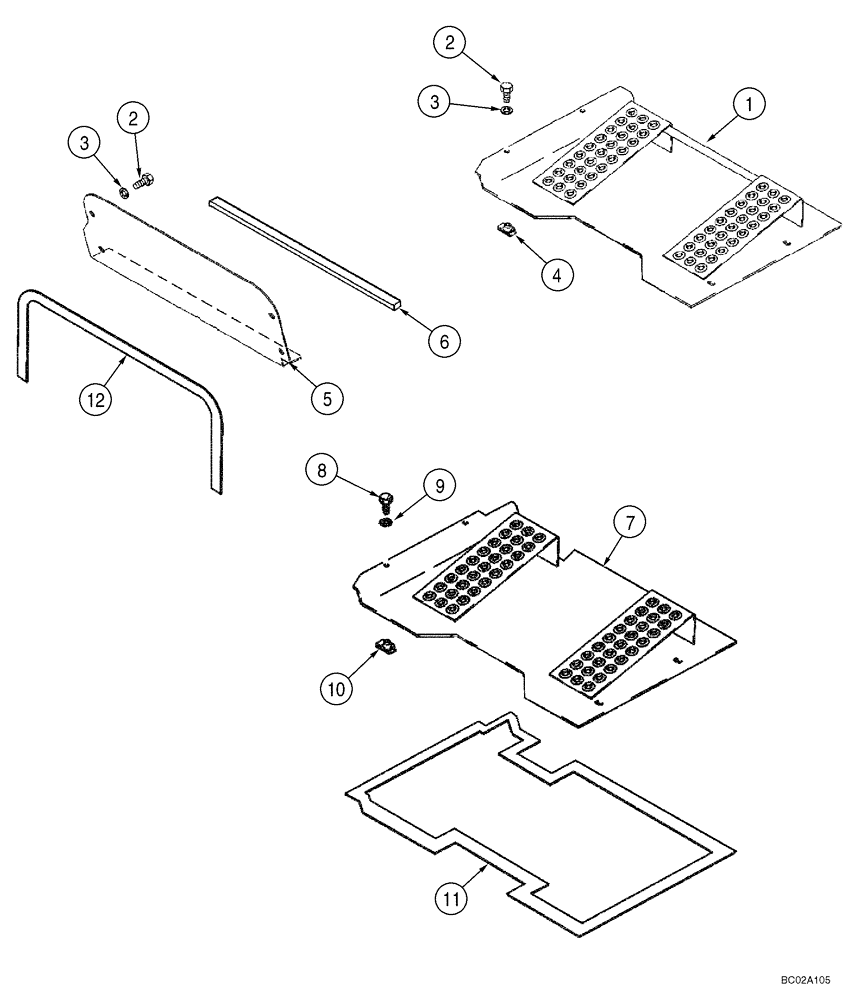

Схема запчастей Case IH 90XT - (09-10) - PLATES, FLOOR (09) - CHASSIS
2
8
5
9
2
11
12
7
10
3
1
3
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

280841A1

FLOOR

Plate

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

4

833-40008

SPRING NUT,M8, U

4шт.

5

246441A2

LARGE PLATE

PLATE, LARGE Heel Plate

1шт.

6

434732A1

SEAL

Models With Floor Heater; North American Only Have Floor Heater; Models with Deluxe Heater

1шт.

7

294438A1

FLOOR

Plate

1шт.

8

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

9

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

10

833-40008

SPRING NUT,M8, U

8шт.

11

313320A1

SEAL

Floor Plate

4шт.

12

313319A1

SEAL

Heel Plate Cover

1шт.
